ASME B16.9 Carbon Steel / 304 304L Stainless Steel Reducer Butt Weld Reducer

Cina ASME B16.9 Carbon Steel / 304 304L Stainless Steel Reducer Butt Weld Reducer pemasok
ASME B16.9 Carbon Steel / 304 304L Stainless Steel Reducer Butt Weld Reducer pemasok ASME B16.9 Carbon Steel / 304 304L Stainless Steel Reducer Butt Weld Reducer pemasok ASME B16.9 Carbon Steel / 304 304L Stainless Steel Reducer Butt Weld Reducer pemasok ASME B16.9 Carbon Steel / 304 304L Stainless Steel Reducer Butt Weld Reducer pemasok

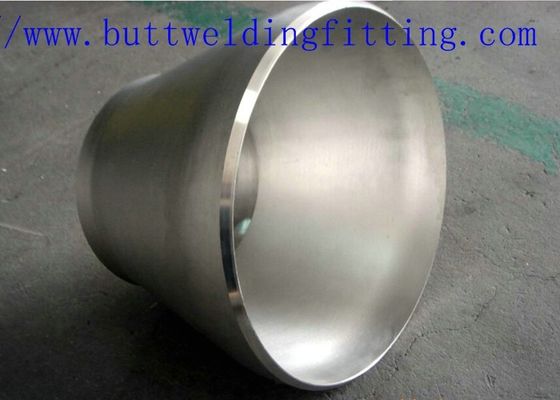

Gambar besar :  ASME B16.9 Carbon Steel / 304 304L Stainless Steel Reducer Butt Weld Reducer

Detail produk:

Tempat asal: Cina
Nama merek: TOBO
Sertifikasi: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model: Mulus atau las

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order: 1pc
Harga: USD
Kemasan rincian: KASUS ply-WOODEN OR PALLET
Waktu pengiriman: 10-80 hari kerja
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 6000 pcs per bulan
Contact Now
Detil Deskripsi produk
Ukuran: 1-96 inci Bahan: 304 & 304L , 316 & 316L
Standar: ASME B16.9 DN: 15-1500
Jenis produk: Butt weld reducer WT: SCH5S-XXS

Peredam Stainless Steel WT: SCH5S-XXS 304L 316 316L Szie1 / 2-60INCH

1. stainless steel peredam
2.sch5s-schxxs

Rincian Cepat
Bahan: Besi tahan karat Teknik: Butt Weld, Forged Mengetik: Peredam
Tempat asal: China (Daratan) Nomor model: Con, peredam Ecc Nama merk: TOBO
Koneksi: Pengelasan, pengelasan, koneksi berulir, soket las Bentuk: Sama Kode Kepala: Bulat
Standar: ANSI / ASME / DIN / JIS / API / GB / ISO Sertifikasi: ISO9001 / 2008, ISO14001, OHSMS18000 Rentang ukuran: DN15-DN2400 (1/2 "-96")
Ketebalan dinding: SCH5-SCH160 XXS Jenis: Concreded; Peredam Ecc Permukaan Finish: ledakan pasir, lukisan hitam, selesai galvanis
Bahan: baja karbon, baja paduan, stainless steel Aplikasi: gas alam, bahan kimia, pembuatan kapal dan sebagainya. Istilah perdagangan: FOB, C&F, CIF atau istilah permintaan pelanggan lainnya

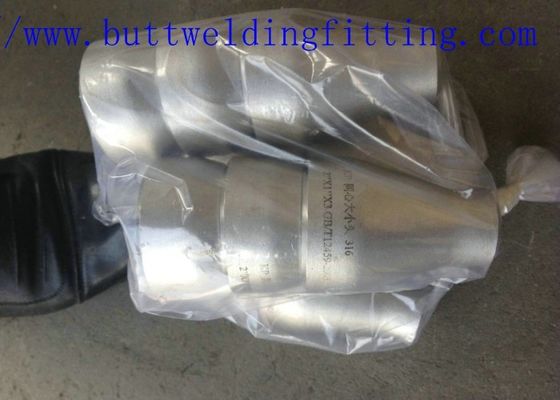

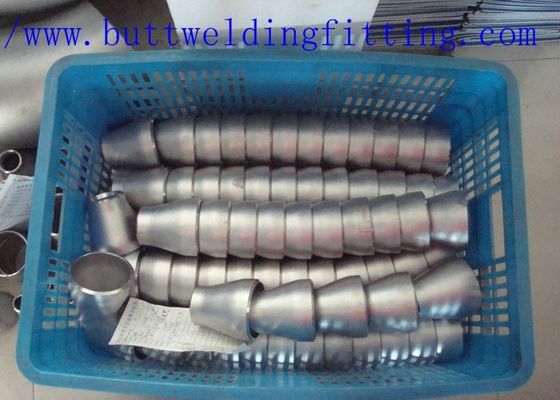

Kemasan & Pengiriman

Rincian Kemasan: Kasing kayu atau palet kayu atau sesuai dengan kebutuhan pembeli
Rincian pengiriman: 25-30 hari setelah konfirmasi pesanan

Spesifikasi

Semua jenis alat kelengkapan pipa dengan kualitas tinggi dan harga terbaik
1) MOQ: 1 PCS
2) Sertifikasi: IS0 API ABS BV GL DNV CE CCS

Rincian Produk

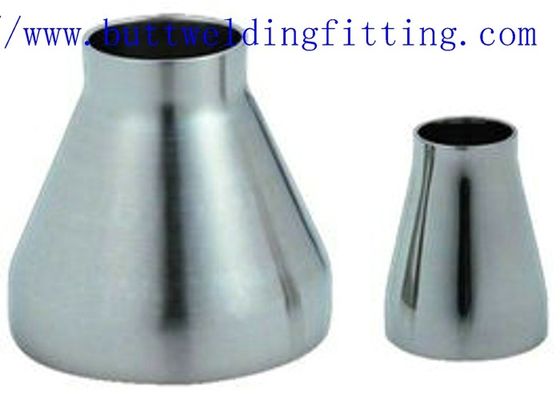

Peredam Conc Stainless Steel

1 Standar Produk & Marterial

Standar

1) Standar: ASTM, ASME, DIN, JIS, API, GB, ISO

2) Sertifikasi: ABS, CC, TUV, CC, GL, BV, ISO14001, ISO9001, OHSMS

Bahan:

Baja Karbon: ASTM A-234 (WPB, WPC) EN 10216-2 (P235GH, P265GH) EN10222-2 (P245GH, P280GH) NF A49-213 (TU42C, TU48C)

Baja Paduan Rendah: ASTM A-420 (WPL6) ASTM A-234 (WP11, WP22, WP5) ASTM A-860 (A860-

WPHY52)

Baja Tahan Karat: ASTMA403M (WP304, WP304L, WP304H, WP316L, WP321, WP321H, WP347, WP347H) EN10216-5 (X2CrNiN18-10 (1.4311), X5CrNi18-10 (1.4301), X5CrNoNoRoNoRo -12-2 (1.4404)

Reduer

Diameter Nominal Diameter luar Ujung ke ujung
D1 * D2
DN NPS Seri A Seri B H
20 × 15 3/4 × 1/2 26,9 × 21,3 25 × 18 38
20 × 10 3/4 × 3/8 26,9 × 17,3 25 × 14 38
25 × 20 1 × 3/4 33,7 × 26,9 32 × 25 51
25 × 15 1 × 1/2 33,7 × 21,3 32 × 18 51
32 × 25 1.1 / 4 × 1 42,4 × 33,7 38 × 32 51
32 × 20 1.1 / 4 × 3/4 42,4 × 26,9 38 × 25 51
32 × 15 1.1 / 4 × 1/2 42,4 × 21,3 38 × 18 51
40 × 32 1.1 / 2 × 1.1 / 4 48,3 × 42,4 45 × 38 64
40 × 25 1.1 / 2 × 1 48,3 × 33,7 45 × 32 64
40 × 20 1.1 / 2 × 3/4 48,3 × 26,9 45 × 25 64
40 × 15 1.1 / 2 × 1/2 48,3 × 21,3 45 × 18 64
50 × 40 2 × 1.1 / 2 60,3 × 48,3 57 × 45 76
50 × 32 2 × 1.1 / 4 60,3 × 42,4 57 × 38 76
50 × 25 2 × 1 60,3 × 33,7 57 × 32 76
50 × 20 2 × 3/4 60,3 × 26,9 57 × 25 76
65 × 50 2.1 / 2 × 2 73.0 × 60.3 76 × 57 89
65 × 40 2.1 / 2 × 1.1 / 2 73.0 × 48.3 76 × 45 89
65 × 32 2.1 / 2 × 1.1 / 4 73.0 × 42.4 76 × 38 89
65 × 25 2.1 / 2 × 1 73.0 × 33.7 76 × 32 89
80 × 65 3 × 2.1 / 2 88.9 × 73.0 89 × 76 89
80 × 50 3 × 2 88.9 × 60.3 89 × 57 89
80 × 40 3 × 1.1 / 2 88.9 × 48.3 89 × 45 89
80 × 32 3 × 1.1 / 4 88,9 × 42,4 89 × 38 89
90 × 80 3.1 / 2 × 3 101.6 × 88.9 - 102
90 × 65 3.1 / 2 × 2.1 / 2 101.6 × 73.0 - 102
90 × 50 3.1 / 2 × 2 101.6 × 60.3 - 102
90 × 40 3.1 / 2 × 1.1 / 2 101.6 × 48.3 - 102
90 × 32 3.1 / 2 × 1.1 / 4 101.6 × 42.4 - 102
100 × 90 4 × 3.1 / 2 114,3 × 101,6 - 102
100 × 80 4 × 3 114,3 × 88,9 108 × 89 102
100 × 65 4 × 2.1 / 2 114,3 × 73.0 108 × 76 102
100 × 50 4 × 2 114,3 × 60,3 108 × 57 102
100 × 40 4 × 1.1 / 2 114,3 × 48,3 108 × 45 102
125 × 100 5 × 4 141.3 × 114.3 133 × 108 127
125 × 90 5 × 3.1 / 2 141.3 × 101.6 - 127
125 × 80 5 × 3 141.3 × 88.9 133 × 89 127
125 × 65 5 × 2.1 / 2 141.3 × 73.0 133 × 76 127
125 × 50 5 × 2 141.3 × 60.3 133 × 57 127
150 × 125 6 × 5 168.3 × 141.3 159 × 133 140
150 × 100 6 × 5 168,3 × 114,3 159 × 108 140
150 × 90 6 × 3.1 / 2 168.3 × 101.6 - 140
150 × 80 6 × 3 168.3 × 88.9 159 × 89 140
150 × 65 6 × 2.1 / 2 168.3 × 73.0 159 × 76 140
200 × 150 8 × 6 219.1 × 168.3 219 × 159 152
200 × 125 8 × 5 219.1 × 141.3 219 × 133 152
200 × 100 8 × 4 219.1 × 114.3 219 × 108 152
200 × 90 8 × 3.1 / 2 219.1 × 101.6 - 152
250 × 200 10 × 8 273.0 × 219.1 273 × 219 178
250 × 150 10 × 6 273.0 × 168.3 273 × 159 178
250 × 125 10 × 5 273.0 × 141.3 273 × 133 178
250 × 100 10 × 4 273.0 × 114.3 273 × 108 178
300 × 250 12 × 10 323.9 × 273.1 325 × 273 203
300 × 200 12 × 8 323.9 × 219.1 325 × 219 203
300 × 150 12 × 6 323.9 × 168.3 325 × 159 203
300 × 125 12 × 5 323.9 × 141.3 325 × 133 203
350 × 300 14 × 12 355.6 × 323.9 377 × 325 330
350 × 250 14 × 10 355.6 × 273.0 377 × 273 330
350 × 200 14 × 8 355.6 × 219.1 377 × 219 330
350 × 150 14 × 6 355.6 × 168.3 377 × 159 330
400 × 350 16 × 14 406.4 × 355.6 426 × 377 356
400 × 300 16 × 12 406.4 × 323.9 426 × 325 356
400 × 250 16 × 10 406.4 × 273.0 426 × 273 356
400 × 200 16 × 8 406.4 × 219.1 426 × 219 356
450 × 400 18 × 16 457 × 406,4 478 × 426 381
450 × 350 18 × 14 457 × 355.6 478 × 377 381
450 × 300 18 × 12 457 × 323.9 478 × 325 381
450 × 250 18 × 10 457 × 273.0 478 × 273 381
500 × 450 20 × 18 508 × 457 529 × 478 508
500 × 400 20 × 16 508 × 406,4 529 × 426 508
500 × 350 20 × 14 508 × 355.6 529 × 377 508
500 × 300 20 × 12 508 × 323.9 529 × 325 508
550 × 500 22 × 20 559 × 508 - 508
550 × 450 22 × 18 559 × 457 - 508
550 × 400 22 × 16 559 × 406,4 - 508
550 × 350 22 × 14 559 × 355.6 - 508
600 × 550 24 × 22 610 × 559 - 508
600 × 500 24 × 20 610 × 508 630 × 529 508
600 × 450 24 × 18 610 × 457 630 × 478 508
600 × 400 24 × 22 610 × 406.4 630 × 426 508
650 × 600 26 × 24 660 × 610 - 610
650 × 550 26 × 22 660 × 559 - 610
650 × 500 26 × 20 660 × 508 - 610
650 × 450 26 × 18 660 × 457 - 610
700 × 650 28 × 26 711 × 660 - 610
700 × 600 28 × 24 711 × 610 720 × 630 610
700 × 550 28 × 22 711 × 559 - 610
700 × 500 28 × 20 711 × 508 720 × 530 610
750 × 700 30 × 28 762 × 711 - 610
750 × 650 30 × 26 762 × 660 - 610
750 × 600 30 × 24 762 × 610 - 610
750 × 550 30 × 22 762 × 559 - 610
800 × 750 32 × 30 813 × 762 - 610
800 × 700 32 × 28 813 × 711 820 × 720 610
800 × 650 32 × 26 813 × 660 - 610
800 × 600 32 × 24 813 × 610 820 × 630 610
850 × 800 34 × 32 864 × 813 - 610
850 × 750 34 × 30 864 × 762 - 610
850 × 700 34 × 28 864 × 711 - 610
850 × 650 34 × 26 864 × 660 - 610
900 × 850 36 × 34 914 × 864 - 610
900 × 800 36 × 32 914 × 813 920 × 820 610
900 × 750 36 × 30 914 × 762 - 610
900 × 700 36 × 28 914 × 711 920 × 720 610
950 × 900 38 × 36 965 × 914 - 610
950 × 850 38 × 34 965 × 864 - 610
950 × 800 38 × 32 965 × 813 - 610
950 × 750 38 × 30 965 × 762 - 610
1000 × 950 40 × 38 1016 × 965 - 610
1000 × 900 40 × 36 1016 × 914 1020 × 920 610
1000 × 850 40 × 34 1016 × 864 - 610
1000 × 800 40 × 32 1016 × 813 1020 × 820 610
1050 × 1000 42 × 40 1067 × 1016 - 610
1050 × 950 42 × 38 1067 × 965 - 610
1050 × 900 42 × 36 1067 × 914 - 610
1050 × 850 42 × 34 1067 × 864 - 610
1100 × 1050 44 × 42 1118 × 1067 - 610
1100 × 1000 44 × 40 1118 × 1016 1120 × 1020 610
1100 × 950 44 × 38 1118 × 965 - 610
1100 × 900 44 × 36 1118 × 914 1220 × 920 610
1150 × 1100 46 × 44 1168 × 1118 - 711
1150 × 1050 46 × 42 1168 × 1067 - 711
1150 × 1000 46 × 40 1168 × 1016 - 711
1150 × 950 46 × 38 1168 × 965 - 711
1200 × 1150 48 × 46 1220 × 1168 - 711
1200 × 1100 48 × 44 1220 × 1118 1220 × 1120 711
1200 × 1050 48 × 42 1220 × 1067 - 711
1200 × 1000 48 × 40 1220 × 1016 1220 × 1020 711
catatan:
Dimensi sesuai dengan GB / T12459, GB / T13401, ASME B16.9, SH3408, SH3409, HG / T21635, HG / T21631, standar SY / T05010

Keuntungan kami

saya. Peralatan ultrasonik untuk inspeksi ketebalan

ii. Peralatan pendeteksi cacat ultrasonik

aku aku aku. Peralatan pengujian material universal

iv. Alat analisa karbon dan sulfur
