Paduan Nikel Inconel 600/601/800, Inconel 801/718 Peredam Stainless Steel 10 "x6" Con / Ecc

  • Nickel Alloys Inconel 600 / 601 / 800 , Inconel 801 / 718 Stainless Steel Reducer 10"x6" Con / Ecc
  • Nickel Alloys Inconel 600 / 601 / 800 , Inconel 801 / 718 Stainless Steel Reducer 10"x6" Con / Ecc
  • Nickel Alloys Inconel 600 / 601 / 800 , Inconel 801 / 718 Stainless Steel Reducer 10"x6" Con / Ecc
  • Nickel Alloys Inconel 600 / 601 / 800 , Inconel 801 / 718 Stainless Steel Reducer 10"x6" Con / Ecc
  • Nickel Alloys Inconel 600 / 601 / 800 , Inconel 801 / 718 Stainless Steel Reducer 10"x6" Con / Ecc
Tempat asal Cina
Nama merek TOBO
Sertifikasi SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model Paduan Nikel Inconel 600/601/800, Inconel 801/718
Kuantitas min Order 3PCS
Harga USD0.3-60 PER PC
Kemasan rincian KASUS ply-WOODEN OR PALLET
Waktu pengiriman 15days
Syarat-syarat pembayaran T/T, L/C, Western Union
Menyediakan kemampuan 9990000PCS Per Bulan
Detail produk
Jenis Jenis Concreded; Peredam Ecc Bahan Paduan Nikel Inconel 600/601/800, Inconel 801/718
Tebal Sch5-Sch160, STD, XS, XXS Standar ANSI / ASTM B16.9 / 16,28, API 5L, DIN2617, JIS B2311 / 2312/2313
Pengobatan a) Ringan diminyaki b) Galvanized c) yang diperlukan
Menyoroti

Perlengkapan Reducer Pipa

,

Butt Weld Reducer
Tinggalkan pesan
Deskripsi Produk

Paduan Nikel Inconel 600/601/800, Inconel 801/718 Peredam Stainless Steel 10 "x6" Con / Ecc

Paduan nikel digunakan untuk media bersuhu tinggi dan sangat korosif. Kondisi seperti itu khas untuk industri pembangkit listrik, kimia, industri petrokimia, teknik kedirgantaraan. Paduan kekuatan tinggi berbasis nikel canggih secara tradisional memiliki nikel dan kromium sebagai fondasinya, dengan unsur-unsur seperti molibdenum, tungsten dan kobalt ditambahkan untuk memberi tambahan penguatan larutan padat. Di mana kekuatan suhu tinggi sangat penting, penambahan aluminium, titanium dan niobium, yang mengakibatkan pengerasan presipitasi, harus ditambahkan.

Bahan Grade / Standar Tersedia

Paduan nikel

              Tingkat Bahan ( ASTM / ASME)

Standar yang tersedia

  Inconel

UNS N06600 UNS N06601 UNS N06625 UNS N08800 UNS N08810 UNS N08825

ASME SB167 SB423 SB407 SB444

Monel

UNS   N04400

SEPERTI SAYA   SB165 SB163

Mempekerjakan lebih cepat

UNS N10276 (C 276) N06022 (C 22) N06455 (C 4)

SEPERTI SAYA   SB626 SB622

Rentang ukuran:

Pipa seamless

OD: Φ16mm-Φ114mm; WT: 1.0mm-20mm

Pipa Las

OD: Φ10mm-Φ273mm; WT: 2mm-30mm

Komposisi Kimia & Sifat Mekanik

UNS

Ni%

Cr%

Mo%

Cu%

Fe%

TS         Min, Mpa

YS Min, Mpa

N04400

63 mnt.

/

/

28.0-34.0

Maks 2,50

483

193

N06600

72 mnt.

14.0-17.0

/

0,50max

6.0-10.0

552

241

N06601

58.0-63.0

21.0-25.0

/

1,0 maks

552

207

N06625

58 mnt.

20.0-23.0

8.0-10.0

/

5.0 maks

827

414

N08800

30.0-35.0

19.0-23.0

/

0,75 maks

39,5 menit.

517

207

N08825

38.0-46.0

19.5-23.5

2.5-3.5

1.5-3.0

22,0 mnt.

586

241

peredam eksentrik stainless steelperedam eksentrik stainless steelperedam eksentrik stainless steel

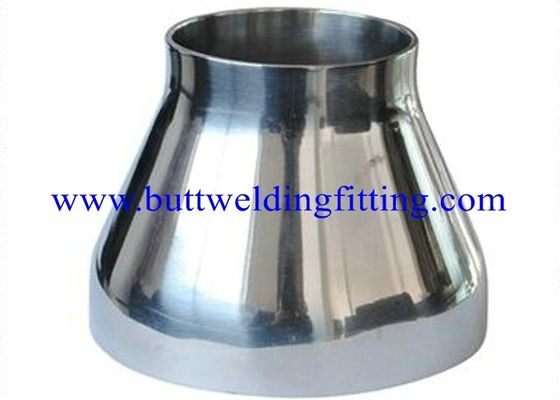

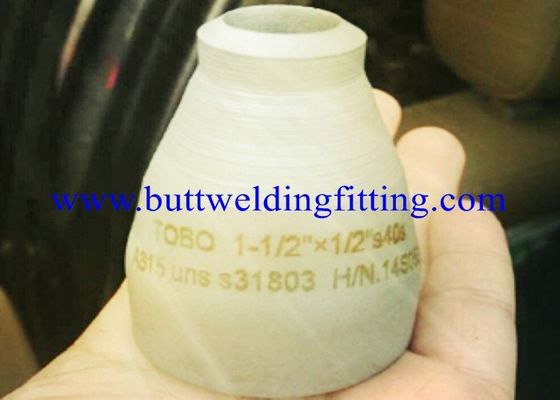

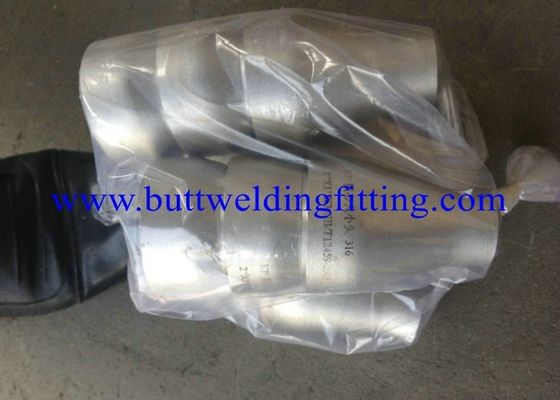

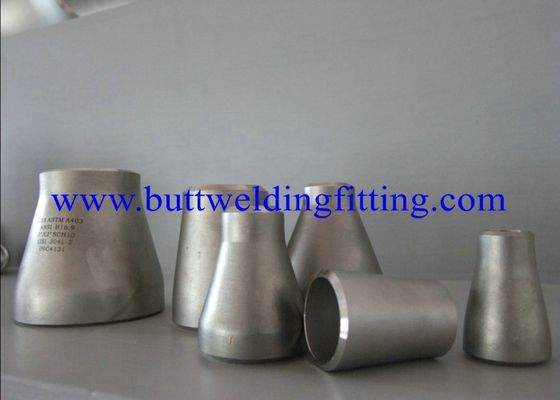

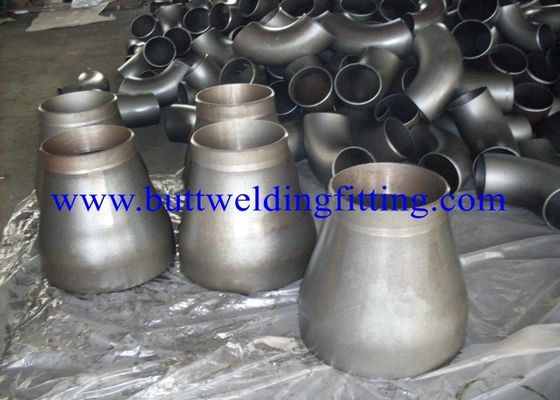

Nama produk: peredam eksentrik stainless steel
Item: buttweld-Reducer
Detail:

Diameter Nominal 		Diameter luar
Ujung ke ujung
D1 * D2
DN NPS Seri A Seri B H
20 × 15 3/4 × 1/2 26,9 × 21,3 25 × 18 38
20 × 10 3/4 × 3/8 26,9 × 17,3 25 × 14 38
25 × 20 1 × 3/4 33,7 × 26,9 32 × 25 51
25 × 15 1 × 1/2 33,7 × 21,3 32 × 18 51
32 × 25 1.1 / 4 × 1 42,4 × 33,7 38 × 32 51
32 × 20 1.1 / 4 × 3/4 42,4 × 26,9 38 × 25 51
32 × 15 1.1 / 4 × 1/2 42,4 × 21,3 38 × 18 51
40 × 32 1.1 / 2 × 1.1 / 4 48,3 × 42,4 45 × 38 64
40 × 25 1.1 / 2 × 1 48,3 × 33,7 45 × 32 64
40 × 20 1.1 / 2 × 3/4 48,3 × 26,9 45 × 25 64
40 × 15 1.1 / 2 × 1/2 48,3 × 21,3 45 × 18 64
50 × 40 2 × 1.1 / 2 60,3 × 48,3 57 × 45 76
50 × 32 2 × 1.1 / 4 60,3 × 42,4 57 × 38 76
50 × 25 2 × 1 60,3 × 33,7 57 × 32 76
50 × 20 2 × 3/4 60,3 × 26,9 57 × 25 76
65 × 50 2.1 / 2 × 2 73.0 × 60.3 76 × 57 89
65 × 40 2.1 / 2 × 1.1 / 2 73.0 × 48.3 76 × 45 89
65 × 32 2.1 / 2 × 1.1 / 4 73.0 × 42.4 76 × 38 89
65 × 25 2.1 / 2 × 1 73.0 × 33.7 76 × 32 89
80 × 65 3 × 2.1 / 2 88.9 × 73.0 89 × 76 89
80 × 50 3 × 2 88.9 × 60.3 89 × 57 89
80 × 40 3 × 1.1 / 2 88.9 × 48.3 89 × 45 89
80 × 32 3 × 1.1 / 4 88,9 × 42,4 89 × 38 89
90 × 80 3.1 / 2 × 3 101.6 × 88.9 - 102
90 × 65 3.1 / 2 × 2.1 / 2 101.6 × 73.0 - 102
90 × 50 3.1 / 2 × 2 101.6 × 60.3 - 102
90 × 40 3.1 / 2 × 1.1 / 2 101.6 × 48.3 - 102
90 × 32 3.1 / 2 × 1.1 / 4 101.6 × 42.4 - 102
100 × 90 4 × 3.1 / 2 114,3 × 101,6 - 102
100 × 80 4 × 3 114,3 × 88,9 108 × 89 102
100 × 65 4 × 2.1 / 2 114,3 × 73.0 108 × 76 102
100 × 50 4 × 2 114,3 × 60,3 108 × 57 102
100 × 40 4 × 1.1 / 2 114,3 × 48,3 108 × 45 102
125 × 100 5 × 4 141.3 × 114.3 133 × 108 127
125 × 90 5 × 3.1 / 2 141.3 × 101.6 - 127
125 × 80 5 × 3 141.3 × 88.9 133 × 89 127
125 × 65 5 × 2.1 / 2 141.3 × 73.0 133 × 76 127
125 × 50 5 × 2 141.3 × 60.3 133 × 57 127
150 × 125 6 × 5 168.3 × 141.3 159 × 133 140
150 × 100 6 × 5 168,3 × 114,3 159 × 108 140
150 × 90 6 × 3.1 / 2 168.3 × 101.6 - 140
150 × 80 6 × 3 168.3 × 88.9 159 × 89 140
150 × 65 6 × 2.1 / 2 168.3 × 73.0 159 × 76 140
200 × 150 8 × 6 219.1 × 168.3 219 × 159 152
200 × 125 8 × 5 219.1 × 141.3 219 × 133 152
200 × 100 8 × 4 219.1 × 114.3 219 × 108 152
200 × 90 8 × 3.1 / 2 219.1 × 101.6 - 152
250 × 200 10 × 8 273.0 × 219.1 273 × 219 178
250 × 150 10 × 6 273.0 × 168.3 273 × 159 178
250 × 125 10 × 5 273.0 × 141.3 273 × 133 178
250 × 100 10 × 4 273.0 × 114.3 273 × 108 178
300 × 250 12 × 10 323.9 × 273.1 325 × 273 203
300 × 200 12 × 8 323.9 × 219.1 325 × 219 203
300 × 150 12 × 6 323.9 × 168.3 325 × 159 203
300 × 125 12 × 5 323.9 × 141.3 325 × 133 203
350 × 300 14 × 12 355.6 × 323.9 377 × 325 330
350 × 250 14 × 10 355.6 × 273.0 377 × 273 330
350 × 200 14 × 8 355.6 × 219.1 377 × 219 330
350 × 150 14 × 6 355.6 × 168.3 377 × 159 330
400 × 350 16 × 14 406.4 × 355.6 426 × 377 356
400 × 300 16 × 12 406.4 × 323.9 426 × 325 356
400 × 250 16 × 10 406.4 × 273.0 426 × 273 356
400 × 200 16 × 8 406.4 × 219.1 426 × 219 356
450 × 400 18 × 16 457 × 406,4 478 × 426 381
450 × 350 18 × 14 457 × 355.6 478 × 377 381
450 × 300 18 × 12 457 × 323.9 478 × 325 381
450 × 250 18 × 10 457 × 273.0 478 × 273 381
500 × 450 20 × 18 508 × 457 529 × 478 508
500 × 400 20 × 16 508 × 406,4 529 × 426 508
500 × 350 20 × 14 508 × 355.6 529 × 377 508
500 × 300 20 × 12 508 × 323.9 529 × 325 508
550 × 500 22 × 20 559 × 508 - 508
550 × 450 22 × 18 559 × 457 - 508
550 × 400 22 × 16 559 × 406,4 - 508
550 × 350 22 × 14 559 × 355.6 - 508
600 × 550 24 × 22 610 × 559 - 508
600 × 500 24 × 20 610 × 508 630 × 529 508
600 × 450 24 × 18 610 × 457 630 × 478 508
600 × 400 24 × 22 610 × 406.4 630 × 426 508
650 × 600 26 × 24 660 × 610 - 610
650 × 550 26 × 22 660 × 559 - 610
650 × 500 26 × 20 660 × 508 - 610
650 × 450 26 × 18 660 × 457 - 610
700 × 650 28 × 26 711 × 660 - 610
700 × 600 28 × 24 711 × 610 720 × 630 610
700 × 550 28 × 22 711 × 559 - 610
700 × 500 28 × 20 711 × 508 720 × 530 610
750 × 700 30 × 28 762 × 711 - 610
750 × 650 30 × 26 762 × 660 - 610
750 × 600 30 × 24 762 × 610 - 610
750 × 550 30 × 22 762 × 559 - 610
800 × 750 32 × 30 813 × 762 - 610
800 × 700 32 × 28 813 × 711 820 × 720 610
800 × 650 32 × 26 813 × 660 - 610
800 × 600 32 × 24 813 × 610 820 × 630 610
850 × 800 34 × 32 864 × 813 - 610
850 × 750 34 × 30 864 × 762 - 610
850 × 700 34 × 28 864 × 711 - 610
850 × 650 34 × 26 864 × 660 - 610
900 × 850 36 × 34 914 × 864 - 610
900 × 800 36 × 32 914 × 813 920 × 820 610
900 × 750 36 × 30 914 × 762 - 610
900 × 700 36 × 28 914 × 711 920 × 720 610
950 × 900 38 × 36 965 × 914 - 610
950 × 850 38 × 34 965 × 864 - 610
950 × 800 38 × 32 965 × 813 - 610
950 × 750 38 × 30 965 × 762 - 610
1000 × 950 40 × 38 1016 × 965 - 610
1000 × 900 40 × 36 1016 × 914 1020 × 920 610
1000 × 850 40 × 34 1016 × 864 - 610
1000 × 800 40 × 32 1016 × 813 1020 × 820 610
1050 × 1000 42 × 40 1067 × 1016 - 610
1050 × 950 42 × 38 1067 × 965 - 610
1050 × 900 42 × 36 1067 × 914 - 610
1050 × 850 42 × 34 1067 × 864 - 610
1100 × 1050 44 × 42 1118 × 1067 - 610
1100 × 1000 44 × 40 1118 × 1016 1120 × 1020 610
1100 × 950 44 × 38 1118 × 965 - 610
1100 × 900 44 × 36 1118 × 914 1220 × 920 610
1150 × 1100 46 × 44 1168 × 1118 - 711
1150 × 1050 46 × 42 1168 × 1067 - 711
1150 × 1000 46 × 40 1168 × 1016 - 711
1150 × 950 46 × 38 1168 × 965 - 711
1200 × 1150 48 × 46 1220 × 1168 - 711
1200 × 1100 48 × 44 1220 × 1118 1220 × 1120 711
1200 × 1050 48 × 42 1220 × 1067 - 711
1200 × 1000 48 × 40 1220 × 1016 1220 × 1020 711
