ASTM A403 WP316Ti Peredam Pipa Stainless Steel Reducer Cocentric

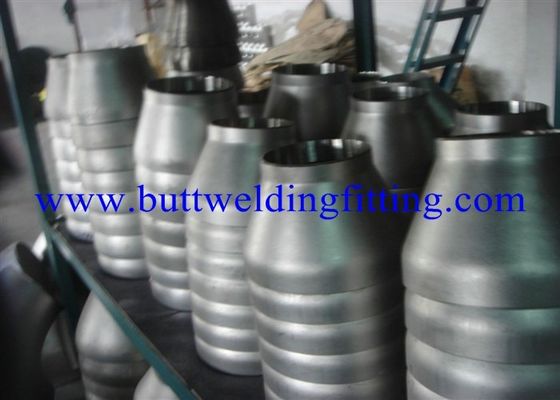

  • ASTM A403 WP316Ti Pipe Reducer Stainless Steel Cocentric Reducer

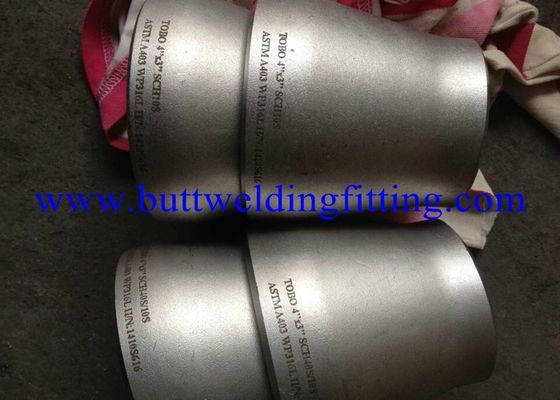

  • ASTM A403 WP316Ti Pipe Reducer Stainless Steel Cocentric Reducer

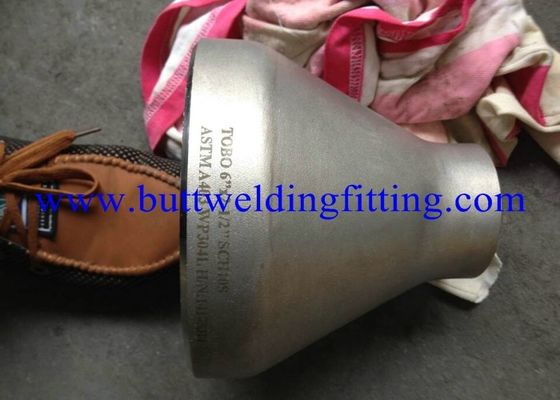

  • ASTM A403 WP316Ti Pipe Reducer Stainless Steel Cocentric Reducer

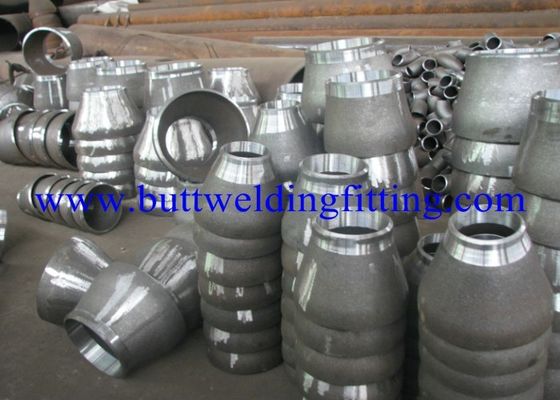

  • ASTM A403 WP316Ti Pipe Reducer Stainless Steel Cocentric Reducer

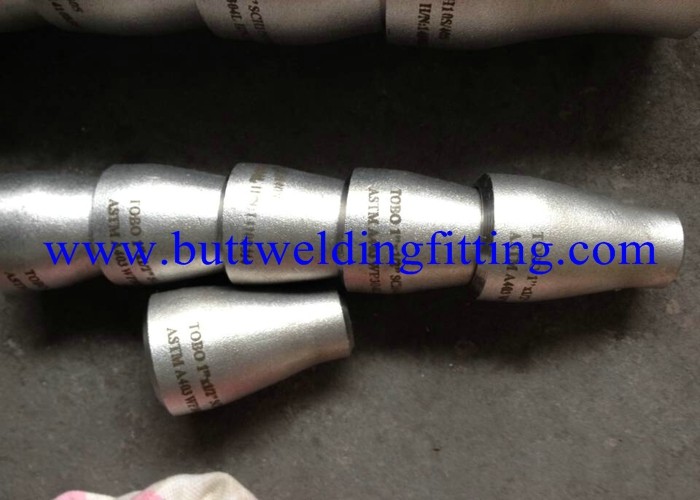

  • ASTM A403 WP316Ti Pipe Reducer Stainless Steel Cocentric Reducer

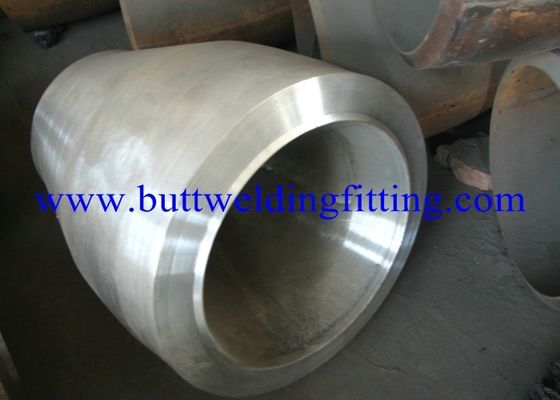

  • ASTM A403 WP316Ti Pipe Reducer Stainless Steel Cocentric Reducer
Tempat asal Cina
Nama merek TOBO
Sertifikasi SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model ASTM A403 WP316Ti
Kuantitas min Order 3PCS
Harga Dapat dinegosiasikan
Kemasan rincian KASUS ply-WOODEN OR PALLET
Waktu pengiriman 15days
Syarat-syarat pembayaran T/T, L/C, Western Union
Menyediakan kemampuan 9980000PCS Per Bulan
Detail produk
Bahan ASTM A403 WP316Ti Standar ASME B16.9, ASME B16.25, MSS SP-75 DIN2617 JISB2311 JISB2312 JISB2313
Proses manufaktur Push, Press, Forge, Cast, dll Aplikasi Petroleum / Daya / Kimia / Konstruksi / Gas / Metalurgi / Kapal dll
Rincian Kemasan pantat pengelasan pipa fitting umumnya harus dikirimkan dalam kasus kayu, palet kayu atau sesuai per Uji Spektrum cahaya bacaan langsung, uji hidrostatik, detektor sinar-X, deteksi cacat ultrasonik, detekt
Menyoroti

Reducer Pipa Konsentris

,

Butt Weld Reducer
Tinggalkan pesan
Deskripsi Produk

ASTM A403 WP316Ti Stainless Steel Reducer Eccentric / Reducer Cocentric

Kami menyediakan alat kelengkapan butt weld untuk klien kami yang terbuat dari stainless steel berkualitas tinggi oleh pabrikan asli kami. Ditawarkan dalam bentuk yang mulus dan dilas, fitting ini dibuat secara presisi dan ditawarkan kepada klien kami dalam spesifikasi berikut:
Bentuk:
1/8 "NB SAMPAI 48" NB. (Seamless & Welded)
Ketebalan
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS tersedia dengan NACE MR 01-75
Mengetik:
· Siku dalam 45 deg, 90 deg, 180 deg, R = 1D, 1.5D, 3D, 5D, 6D, 8D, 10D & 20D.
· Peredam eksentrik & konsentris.
· Tutup & umpan silang.
· Tee yang sama & tidak sama.
· Panjang rintisan pendek & pendek.
Standar:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Bahan:
Stainless Steel: ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321/310/347 / 904L / dll.
Baja Karbon: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 dll.
Baja paduan: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 / dll.
Bahan lain: Monel, Nikel, Inconel, Hastalloy, Tembaga, Kuningan, Perunggu, Titanium, Tantalum, Bismuth, Aluminium, Baja Kecepatan Tinggi, Seng, Timbal, dll.

peredam konsentris stainless steelperedam konsentris stainless steelperedam konsentris stainless steel
Nama produk: peredam konsentris stainless steel
Item: buttweld-Reducer
Detail:

Diameter Nominal 		Diameter luar
Ujung ke ujung
D1 * D2
DN NPS Seri A Seri B H
20 × 15 3/4 × 1/2 26,9 × 21,3 25 × 18 38
20 × 10 3/4 × 3/8 26,9 × 17,3 25 × 14 38
25 × 20 1 × 3/4 33,7 × 26,9 32 × 25 51
25 × 15 1 × 1/2 33,7 × 21,3 32 × 18 51
32 × 25 1.1 / 4 × 1 42,4 × 33,7 38 × 32 51
32 × 20 1.1 / 4 × 3/4 42,4 × 26,9 38 × 25 51
32 × 15 1.1 / 4 × 1/2 42,4 × 21,3 38 × 18 51
40 × 32 1.1 / 2 × 1.1 / 4 48,3 × 42,4 45 × 38 64
40 × 25 1.1 / 2 × 1 48,3 × 33,7 45 × 32 64
40 × 20 1.1 / 2 × 3/4 48,3 × 26,9 45 × 25 64
40 × 15 1.1 / 2 × 1/2 48,3 × 21,3 45 × 18 64
50 × 40 2 × 1.1 / 2 60,3 × 48,3 57 × 45 76
50 × 32 2 × 1.1 / 4 60,3 × 42,4 57 × 38 76
50 × 25 2 × 1 60,3 × 33,7 57 × 32 76
50 × 20 2 × 3/4 60,3 × 26,9 57 × 25 76
65 × 50 2.1 / 2 × 2 73.0 × 60.3 76 × 57 89
65 × 40 2.1 / 2 × 1.1 / 2 73.0 × 48.3 76 × 45 89
65 × 32 2.1 / 2 × 1.1 / 4 73.0 × 42.4 76 × 38 89
65 × 25 2.1 / 2 × 1 73.0 × 33.7 76 × 32 89
80 × 65 3 × 2.1 / 2 88.9 × 73.0 89 × 76 89
80 × 50 3 × 2 88.9 × 60.3 89 × 57 89
80 × 40 3 × 1.1 / 2 88.9 × 48.3 89 × 45 89
80 × 32 3 × 1.1 / 4 88,9 × 42,4 89 × 38 89
90 × 80 3.1 / 2 × 3 101.6 × 88.9 - 102
90 × 65 3.1 / 2 × 2.1 / 2 101.6 × 73.0 - 102
90 × 50 3.1 / 2 × 2 101.6 × 60.3 - 102
90 × 40 3.1 / 2 × 1.1 / 2 101.6 × 48.3 - 102
90 × 32 3.1 / 2 × 1.1 / 4 101.6 × 42.4 - 102
100 × 90 4 × 3.1 / 2 114,3 × 101,6 - 102
100 × 80 4 × 3 114,3 × 88,9 108 × 89 102
100 × 65 4 × 2.1 / 2 114,3 × 73.0 108 × 76 102
100 × 50 4 × 2 114,3 × 60,3 108 × 57 102
100 × 40 4 × 1.1 / 2 114,3 × 48,3 108 × 45 102
125 × 100 5 × 4 141.3 × 114.3 133 × 108 127
125 × 90 5 × 3.1 / 2 141.3 × 101.6 - 127
125 × 80 5 × 3 141.3 × 88.9 133 × 89 127
125 × 65 5 × 2.1 / 2 141.3 × 73.0 133 × 76 127
125 × 50 5 × 2 141.3 × 60.3 133 × 57 127
150 × 125 6 × 5 168.3 × 141.3 159 × 133 140
150 × 100 6 × 5 168,3 × 114,3 159 × 108 140
150 × 90 6 × 3.1 / 2 168.3 × 101.6 - 140
150 × 80 6 × 3 168.3 × 88.9 159 × 89 140
150 × 65 6 × 2.1 / 2 168.3 × 73.0 159 × 76 140
200 × 150 8 × 6 219.1 × 168.3 219 × 159 152
200 × 125 8 × 5 219.1 × 141.3 219 × 133 152
200 × 100 8 × 4 219.1 × 114.3 219 × 108 152
200 × 90 8 × 3.1 / 2 219.1 × 101.6 - 152
250 × 200 10 × 8 273.0 × 219.1 273 × 219 178
250 × 150 10 × 6 273.0 × 168.3 273 × 159 178
250 × 125 10 × 5 273.0 × 141.3 273 × 133 178
250 × 100 10 × 4 273.0 × 114.3 273 × 108 178
300 × 250 12 × 10 323.9 × 273.1 325 × 273 203
300 × 200 12 × 8 323.9 × 219.1 325 × 219 203
300 × 150 12 × 6 323.9 × 168.3 325 × 159 203
300 × 125 12 × 5 323.9 × 141.3 325 × 133 203
350 × 300 14 × 12 355.6 × 323.9 377 × 325 330
350 × 250 14 × 10 355.6 × 273.0 377 × 273 330
350 × 200 14 × 8 355.6 × 219.1 377 × 219 330
350 × 150 14 × 6 355.6 × 168.3 377 × 159 330
400 × 350 16 × 14 406.4 × 355.6 426 × 377 356
400 × 300 16 × 12 406.4 × 323.9 426 × 325 356
400 × 250 16 × 10 406.4 × 273.0 426 × 273 356
400 × 200 16 × 8 406.4 × 219.1 426 × 219 356
450 × 400 18 × 16 457 × 406,4 478 × 426 381
450 × 350 18 × 14 457 × 355.6 478 × 377 381
450 × 300 18 × 12 457 × 323.9 478 × 325 381
450 × 250 18 × 10 457 × 273.0 478 × 273 381
500 × 450 20 × 18 508 × 457 529 × 478 508
500 × 400 20 × 16 508 × 406,4 529 × 426 508
500 × 350 20 × 14 508 × 355.6 529 × 377 508
500 × 300 20 × 12 508 × 323.9 529 × 325 508
550 × 500 22 × 20 559 × 508 - 508
550 × 450 22 × 18 559 × 457 - 508
550 × 400 22 × 16 559 × 406,4 - 508
550 × 350 22 × 14 559 × 355.6 - 508
600 × 550 24 × 22 610 × 559 - 508
600 × 500 24 × 20 610 × 508 630 × 529 508
600 × 450 24 × 18 610 × 457 630 × 478 508
600 × 400 24 × 22 610 × 406.4 630 × 426 508
650 × 600 26 × 24 660 × 610 - 610
650 × 550 26 × 22 660 × 559 - 610
650 × 500 26 × 20 660 × 508 - 610
650 × 450 26 × 18 660 × 457 - 610
700 × 650 28 × 26 711 × 660 - 610
700 × 600 28 × 24 711 × 610 720 × 630 610
700 × 550 28 × 22 711 × 559 - 610
700 × 500 28 × 20 711 × 508 720 × 530 610
750 × 700 30 × 28 762 × 711 - 610
750 × 650 30 × 26 762 × 660 - 610
750 × 600 30 × 24 762 × 610 - 610
750 × 550 30 × 22 762 × 559 - 610
800 × 750 32 × 30 813 × 762 - 610
800 × 700 32 × 28 813 × 711 820 × 720 610
800 × 650 32 × 26 813 × 660 - 610
800 × 600 32 × 24 813 × 610 820 × 630 610
850 × 800 34 × 32 864 × 813 - 610
850 × 750 34 × 30 864 × 762 - 610
850 × 700 34 × 28 864 × 711 - 610
850 × 650 34 × 26 864 × 660 - 610
900 × 850 36 × 34 914 × 864 - 610
900 × 800 36 × 32 914 × 813 920 × 820 610
900 × 750 36 × 30 914 × 762 - 610
900 × 700 36 × 28 914 × 711 920 × 720 610
950 × 900 38 × 36 965 × 914 - 610
950 × 850 38 × 34 965 × 864 - 610
950 × 800 38 × 32 965 × 813 - 610
950 × 750 38 × 30 965 × 762 - 610
1000 × 950 40 × 38 1016 × 965 - 610
1000 × 900 40 × 36 1016 × 914 1020 × 920 610
1000 × 850 40 × 34 1016 × 864 - 610
1000 × 800 40 × 32 1016 × 813 1020 × 820 610
1050 × 1000 42 × 40 1067 × 1016 - 610
1050 × 950 42 × 38 1067 × 965 - 610
1050 × 900 42 × 36 1067 × 914 - 610
1050 × 850 42 × 34 1067 × 864 - 610
1100 × 1050 44 × 42 1118 × 1067 - 610
1100 × 1000 44 × 40 1118 × 1016 1120 × 1020 610
1100 × 950 44 × 38 1118 × 965 - 610
1100 × 900 44 × 36 1118 × 914 1220 × 920 610
1150 × 1100 46 × 44 1168 × 1118 - 711
1150 × 1050 46 × 42 1168 × 1067 - 711
1150 × 1000 46 × 40 1168 × 1016 - 711
1150 × 950 46 × 38 1168 × 965 - 711
1200 × 1150 48 × 46 1220 × 1168 - 711
1200 × 1100 48 × 44 1220 × 1118 1220 × 1120 711
1200 × 1050 48 × 42 1220 × 1067 - 711
1200 × 1000 48 × 40 1220 × 1016 1220 × 1020 711
