| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO |
| Sertifikasi: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model: | 1-72 inci |
| Kuantitas min Order: | 1pc |
| Harga: | USD |
| Kemasan rincian: | kasus kayu |
| Waktu pengiriman: | 10-90 hari kerja |
| Syarat-syarat pembayaran: | L/C, T/T |
| Menyediakan kemampuan: | 5000PCS PER BULAN |
| Ukuran: | 1-72 inci | Materail tinggi: | WP 304 |
|---|---|---|---|
| Ketebalan: | Sch5-Sch160 | Standar: | ASME B16.9 |
| Mengetik: | Mulus atau las | DN: | 15-1200 |
| Menyoroti: | Butt Welding Elbow,Fitting Pipa Elbow |
||

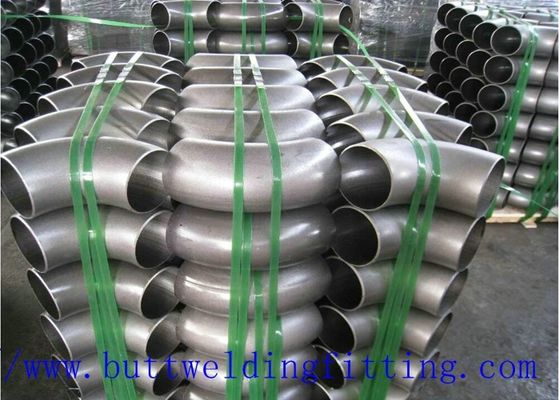

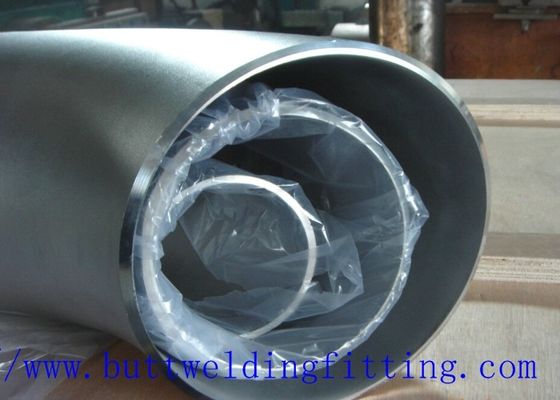

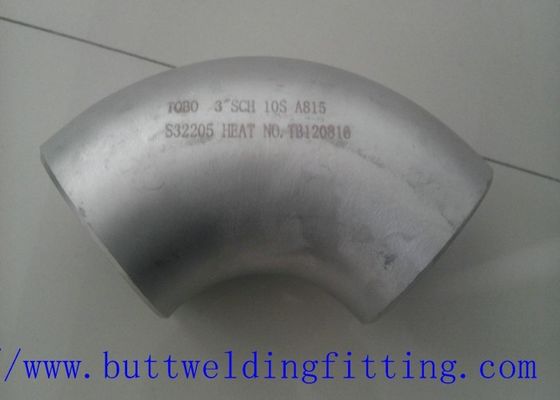

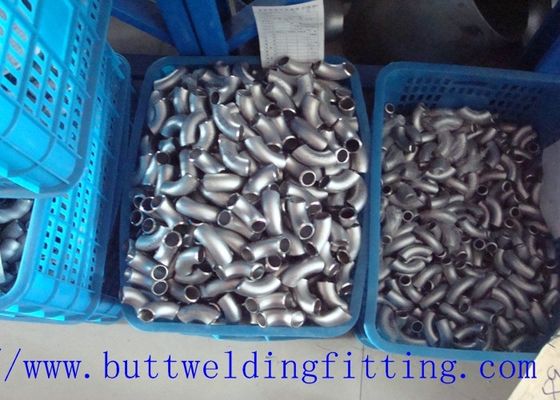

Butt welding fittings Stainless Steel Siku Ukuran 1-72 inch ASME B16.9 WP304
Produk: Siku tikungan sama, / mengurangi tee, peredam konsentris / eksentrik, tutup, flensa
Ukuran: Seamless (SMLS) Elbows: 1/2 "-24", DN15-DN600
Butt Welded Elbows (seam): 24 "-96", DN600-DN1800
Jenis: LR 30,45,60,90,180 derajat SR 30,45,60,90,180 derajat
1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Tebal: SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH80., SCH100, SCH120, SCH140, SCH160, XXS
Standar: ASME, ANSI B16.9;
| Bahan | ASTM | Baja karbon: ASTM A234WPB ,, A234WPC, A420WPL6, A420WPL3 MSS SP75 WPHY42 / 46/52/56/60/65/70 |
| Baja tahan karat: ASTM A403 WP304.304L, 316.316L, 321. 1Cr18Ni9Ti, 00Cr19Ni10,00Cr17Ni14Mo2, dll. | ||
| Baja paduan: A234WP12, A234WP11, A234WP22, A234WP5, A420WPL6, | ||
| KERIUHAN | Baja karbon: St37.0, St35.8, St45.8 | |
| Baja tahan karat: 1.4301,1.4306,1.4401,1.4571 | ||
| Baja paduan: 1.7335,1.7380,1.0488 (1.0566) | ||
| JIS | Baja karbon: PG370, PT410 | |
| Stainless steel: SUS304, SUS304L, SUS316, SUS316L, SUS321 | ||
| Baja paduan: PA22, PA23, PA24, PA25, PL380 | ||
| GB | 10 #, 20 #, 20G, 23g, 20R, Q235,16Mn, 16MnR, 1Cr5Mo, 12CrMo, 12CrMoG, 12Cr1Mo | |
| Pengobatan permukaan | Minyak transparan, minyak hitam tahan karat atau galvanis panas | |
| Pengepakan | Dalam kasus kayu atau palet, atau untuk kebutuhan klien | |
| Aplikasi | Minyak bumi, kimia, mesin, ketel, tenaga listrik, pembuatan kapal, pembuatan kertas, konstruksi, dll | |
| Sertifikasi | API CE dan ISO 9001: 2008 | |
| Bagian ketiga memeriksa | BV, SGS, dll menerima | |
| Waktu pengiriman | 7 setelah menerima pembayaran di muka, miliki stok ~ | |
| desain khusus | sebagai gambar Anda | |
| uji | Spectrograph membaca langsung, mesin uji hidrostatik, Detektor sinar-X, Detektor cacat ultrasonik, Partikel magnetik detektor, dll | |
| peralatan | Mesin press, mesin Bending, Mesin Dorong, mesin bevelling listrik Mesin sand blasting, dll | |
| Jenis Siku | Siku stainless steel, siku 45/90/180 dilas / mulus; kembali siku |
| Standar | ASME / ANSI B16.9 |
| Ukuran | 1/2 '' ~ 48 '' (Seamless); 16 '' ~ 72 '' (Dilas) |
| ketebalan dinding | Sch5 ~ Sch160XXS |
| Proses pembuatan | Push, Press, Forge, Cast, dll. |
| Bahan | Baja karbon, baja tahan karat, baja paduan, baja dupleks, baja paduan nikel |
| Baja karbon | ASTM A234 WPB, WPC; |
| Besi tahan karat | 304 / SUS304 / UNS S30400 / 1.4301 304L / UNS S30403 / 1.4306; 304H / UNS S30409 / 1.4948; 309S / UNS S30908 / 1.4833 309H / UNS S30909; 310S / UNS S31008 / 1.4845; 310H / UNS S31009; 316 / UNS S31600 / 1.4401; 316Ti / UNS S31635 / 1.4571; 316H / UNS S31609 / 1.4436; 316L / UNS S31603 / 1.4404; 316LN / UNS S31653; 317 / UNS S31700; 317L / UNS S31703 / 1.4438; 321 / UNS S32100 / 1.4541; 321H / UNS S32109; 347 / UNS S34700 / 1.4550; 347H / UNS S34709 / 1.4912; 348 / UNS S34800; |
| Baja paduan | ASTM A234 WP5 / WP9 / WP11 / WP12 / WP22 / WP91; ASTM A860 WPHY42 / WPHY52 / WPHY60 / WPHY65; ASTM A420 WPL3 / WPL6 / WPL9; |
| Baja dupleks | ASTM A182 F51 / S31803 / 1.4462; ASTM A182 F53 / S2507 / S32750 / 1.4401; ASTM A182 F55 / S32760 / 1.4501 / Zeron 100; 2205 / F60 / S32205; ASTM A182 F44 / S31254 / 254SMO / 1.4547; 17-4PH / S17400 / 1.4542 / SUS630 / AISI630; F904L / NO8904 / 1.4539; 725LN / 310MoLN / S31050 / 1.4466 253MA / S30815 / 1.4835; |
| Baja paduan nikel | Paduan 200 / Nikel 200 / NO2200 / 2.4066 / ASTM B366 WPN; Paduan 201 / Nikel 201 / NO2201 / 2.4068 / ASTM B366 WPNL; Paduan 400 / Monel 400 / NO4400 / NS111 / 2.4360 / ASTM B366 WPNC; Paduan K-500 / Monel K-500 / NO5500 / 2.475; Paduan 600 / Inconel 600 / NO6600 / NS333 / 2.4816; Paduan 601 / Inconel 601 / NO6001 / 2.4851; Paduan 625 / Inconel 625 / NO6625 / NS336 / 2.4856; Paduan 718 / Inconel 718 / NO7718 / GH169 / GH4169 / 2.4668; Paduan 800 / Incoloy 800 / NO8800 / 1.4876; Paduan 800H / Incoloy 800H / NO8810 / 1.4958; Paduan 800HT / Incoloy 800HT / NO8811 / 1.4959; Paduan 825 / Incoloy 825 / NO8825 / 2.4858 / NS142; Paduan 925 / Incoloy 925 / NO9925; Hastelloy C / Alloy C / NO6003 / 2.4869 / NS333; Paduan C-276 / Hastelloy C-276 / N10276 / 2.4819; Paduan C-4 / Hastelloy C-4 / NO6455 / NS335 / 2.4610; Paduan C-22 / Hastelloy C-22 / NO6022 / 2.4602; Paduan C-2000 / Hastelloy C-2000 / NO6200 / 2.4675; Paduan B / Hastelloy B / NS321 / N10001; Paduan B-2 / Hastelloy B-2 / N10665 / NS322 / 2.4617; Paduan B-3 / Hastelloy B-3 / N10675 / 2.4600; Paduan X / Hastelloy X / NO6002 / 2.4665; Paduan G-30 / Hastelloy G-30 / NO6030 / 2.4603; Paduan X-750 / Inconel X-750 / NO7750 / GH145 / 2.4669; Paduan 20 / Tukang Kayu 20Cb3 / NO8020 / NS312 / 2.4660; Paduan 31 / NO8031 / 1.4562; Paduan 901 / NO9901 / 1.4898; Incoloy 25-6Mo / NO8926 / 1.4529 / Incoloy 926 / Alloy 926; Inconel 783 / UNS R30783; NAS 254NM / NO8367; Monel 30C Nimonic 80A / Nikel Paduan 80a / UNS N07080 / NA20 / 2.4631 / 2.4952 Nimonic 263 / NO7263 Nimonic 90 / UNS NO7090; Incoloy 907 / GH907; Nitronic 60 / Alloy 218 / UNS S21800 |
| Paket | Kotak kayu, palet, tas nilon atau sesuai dengan kebutuhan pelanggan |
| MOQ | 1 buah |
| Waktu pengiriman | 10-100 hari tergantung pada kuantitas |
