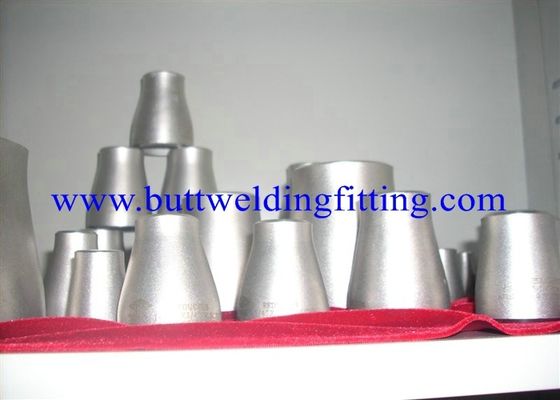

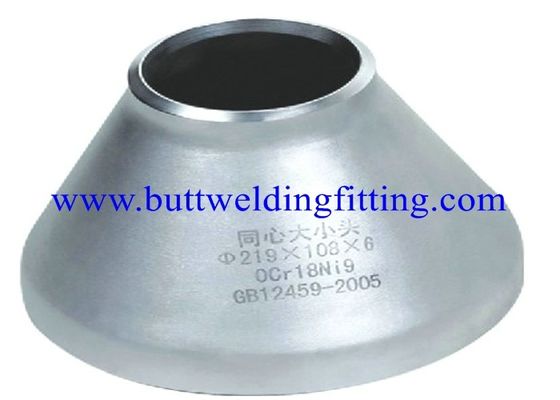

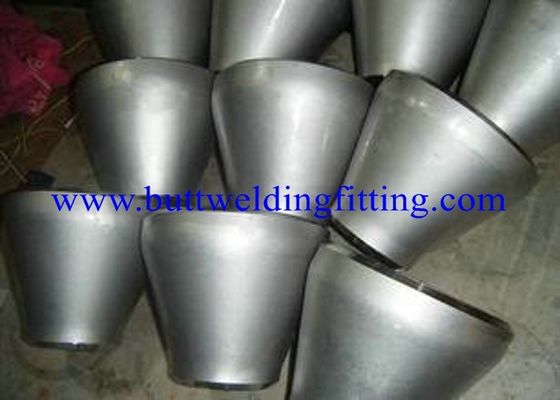

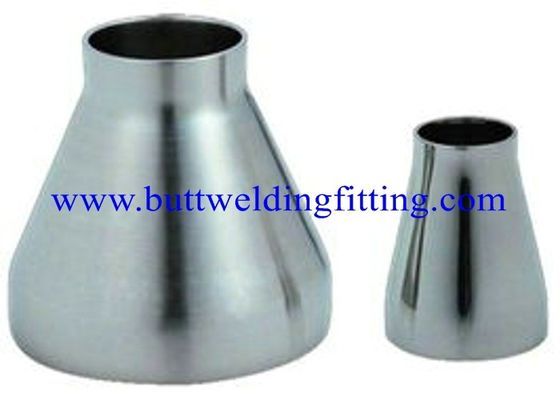

Peredam Pipa Konsentris Peredam Stainless Steel ASME A403 WP 347 / 347H / 316Ti

  • Concentric Pipe Reducer Stainless Steel Reducer ASME A403 WP 347 / 347H / 316Ti
  • Concentric Pipe Reducer Stainless Steel Reducer ASME A403 WP 347 / 347H / 316Ti
  • Concentric Pipe Reducer Stainless Steel Reducer ASME A403 WP 347 / 347H / 316Ti
  • Concentric Pipe Reducer Stainless Steel Reducer ASME A403 WP 347 / 347H / 316Ti
  • Concentric Pipe Reducer Stainless Steel Reducer ASME A403 WP 347 / 347H / 316Ti
Tempat asal Cina
Nama merek TOBO
Sertifikasi SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model ASME A403 WP 347 / 347H / 316Ti
Kuantitas min Order 2PCS
Harga USD0.3-200 PER PC
Kemasan rincian KASUS ply-WOODEN OR PALLET
Waktu pengiriman 15days
Syarat-syarat pembayaran T/T, L/C, Western Union
Menyediakan kemampuan 9990000PCS Per Bulan
Detail produk
Standar ASTM, JIS, BS, DIN, UNI dll Bahan kelas ASME A403 WP 347 / 347H / 316Ti
Jenis produk Con / Ecc Reducer Tebal Sch5-Sch160, STD, XS, XXS
Menyoroti

Reducer Pipa Konsentris

,

Butt Weld Reducer
Tinggalkan pesan
Deskripsi Produk

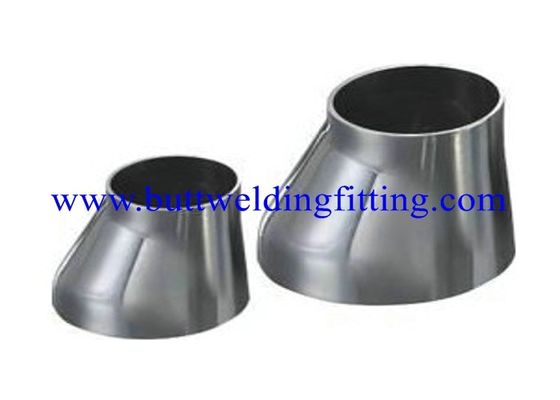

Eksentrik Peredam Stainless Steel Reducer ASME A403 WP 347 / 347H / 316Ti 8 "SCH40S 10" SCH80S

Pipe Reducer adalah sejenis alat kelengkapan pipa industri yang digunakan untuk menghubungkan dua pipa (atau tabung) dengan diameter yang berbeda. Ini berisi peredam konsentris dan peredam eksentrik. Yang pertama digunakan pada pipa vertikal, dan yang terakhir digunakan untuk pipa horizontal.

Reduksi pipa terutama digunakan di area berikut:
1. Pipa peredam berguna ketika ada persyaratan tentang perubahan laju aliran fluida.
2. Digunakan untuk saluran masuk pompa untuk mencegah kavitasi.
3. Cocok untuk konektor instrumen, seperti flowmeter dan katup kontrol.

Ukuran
Peredam Pipa Seamless: 1/2 "～ 32" DN15 ～ DN800
Reducer Pipa Las: 6 "～ 60" DN150 ～ DN1500
Ketebalan dinding
sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100,
sch120, sch140, sch160, xxs, sch5s, sch20s, sch40s, sch80s
Maks. ketebalan: 200mm

Materi
Baja karbon: ASTM / ASME A234 WPB-WPC
Baja paduan: ASTM / ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
Baja tahan karat: ASTM / ASME A403 WP 304-304L-304H-304LN-304N
ASTM / ASME A403 WP 316-316L-316H-316LN-316N-316Ti
ASTM / ASME A403 WP 321-321H ASTM / ASME A403 WP 347-347H
Baja suhu rendah: ASTM / ASME A402 WPL 3-WPL 6
Baja kinerja tinggi: ASTM / ASME A860 WPHY 42-46-52-60-65-70

Standar
GB / T12459-2005 GB / T13401-2005 GB / T10752-2005
SH / T3408-1996 SH / T3409-1996
SY / T0609-2006 SY / T0518-2002 SY / T0510-1998
DL / T695-1999 GD2000 GD87-1101
HG / T21635-1987 HG / T21631-1990
ASME B16.9-2007 ASME B16.25-2007
MSS SP 75-2008 MSS SP 43-2008
CSA Z245.11-05-2005
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2616-1-1991 DIN2616-2-1991
BS1640-1-1962 BS1640-2-1962 BS1640-3-1968 BS1640-4-1968 BS1965-1-1963
GOST17378-2001
AFNOR NF A 49-289-1990 AFNOR NF A 49-170-1-1999 AFNOR NF A 49-170-2-2009 AFNOR NF A 49-170-3-2009 AFNOR NF A 49-170-4-2009
ISO3419-1981 ISO5251-1981
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009

Proses industri
Membungkuk, meremas, menekan, penempaan, permesinan dan banyak lagi

Industri Dilayani
Pengurang pipa kami telah menemukan banyak aplikasi di berbagai industri, seperti listrik, minyak bumi, gas alam, kimia, pembuatan kapal, pemanasan, pembuatan kertas, metalurgi dan sebagainya.

Spesifikasi untuk Pipa Tee

Spesifikasi untuk Reducer Pipa

Peredam Pipa Kisaran produksi
Peredam pipa mulus Peredam pipa las
Diameter luar 1/2 "～ 32" 6 "～ 60"
ketebalan dinding 4mm ～ 200mm
Tipe produk Peredam konsentris, peredam eksentrik

Deskripsi:

Spesifikasi

Cocentric Reduer Eccentric Reduer

Diameter Nominal

Diameter luar

Ujung ke ujung

D1 * D2

DN

NPS

Seri A

Seri B

H

20 × 15

3/4 × 1/2

26,9 × 21,3

25 × 18

38

20 × 10

3/4 × 3/8

26,9 × 17,3

25 × 14

38

25 × 20

1 × 3/4

33,7 × 26,9

32 × 25

51

25 × 15

1 × 1/2

33,7 × 21,3

32 × 18

51

32 × 25

1.1 / 4 × 1

42,4 × 33,7

38 × 32

51

32 × 20

1.1 / 4 × 3/4

42,4 × 26,9

38 × 25

51

32 × 15

1.1 / 4 × 1/2

42,4 × 21,3

38 × 18

51

40 × 32

1.1 / 2 × 1.1 / 4

48,3 × 42,4

45 × 38

64

40 × 25

1.1 / 2 × 1

48,3 × 33,7

45 × 32

64

40 × 20

1.1 / 2 × 3/4

48,3 × 26,9

45 × 25

64

40 × 15

1.1 / 2 × 1/2

48,3 × 21,3

45 × 18

64

50 × 40

2 × 1.1 / 2

60,3 × 48,3

57 × 45

76

50 × 32

2 × 1.1 / 4

60,3 × 42,4

57 × 38

76

50 × 25

2 × 1

60,3 × 33,7

57 × 32

76

50 × 20

2 × 3/4

60,3 × 26,9

57 × 25

76

65 × 50

2.1 / 2 × 2

73.0 × 60.3

76 × 57

89

65 × 40

2.1 / 2 × 1.1 / 2

73.0 × 48.3

76 × 45

89

65 × 32

2.1 / 2 × 1.1 / 4

73.0 × 42.4

76 × 38

89

65 × 25

2.1 / 2 × 1

73.0 × 33.7

76 × 32

89

80 × 65

3 × 2.1 / 2

88.9 × 73.0

89 × 76

89

80 × 50

3 × 2

88.9 × 60.3

89 × 57

89

80 × 40

3 × 1.1 / 2

88.9 × 48.3

89 × 45

89

80 × 32

3 × 1.1 / 4

88,9 × 42,4

89 × 38

89

90 × 80

3.1 / 2 × 3

101.6 × 88.9

-

102

90 × 65

3.1 / 2 × 2.1 / 2

101.6 × 73.0

-

102

90 × 50

3.1 / 2 × 2

101.6 × 60.3

-

102

90 × 40

3.1 / 2 × 1.1 / 2

101.6 × 48.3

-

102

90 × 32

3.1 / 2 × 1.1 / 4

101.6 × 42.4

-

102

100 × 90

4 × 3.1 / 2

114,3 × 101,6

-

102

100 × 80

4 × 3

114,3 × 88,9

108 × 89

102

100 × 65

4 × 2.1 / 2

114,3 × 73.0

108 × 76

102

100 × 50

4 × 2

114,3 × 60,3

108 × 57

102

100 × 40

4 × 1.1 / 2

114,3 × 48,3

108 × 45

102

125 × 100

5 × 4

141.3 × 114.3

133 × 108

127

125 × 90

5 × 3.1 / 2

141.3 × 101.6

-

127

125 × 80

5 × 3

141.3 × 88.9

133 × 89

127

125 × 65

5 × 2.1 / 2

141.3 × 73.0

133 × 76

127

125 × 50

5 × 2

141.3 × 60.3

133 × 57

127

150 × 125

6 × 5

168.3 × 141.3

159 × 133

140

150 × 100

6 × 5

168,3 × 114,3

159 × 108

140

150 × 90

6 × 3.1 / 2

168.3 × 101.6

-

140

150 × 80

6 × 3

168.3 × 88.9

159 × 89

140

150 × 65

6 × 2.1 / 2

168.3 × 73.0

159 × 76

140

200 × 150

8 × 6

219.1 × 168.3

219 × 159

152

200 × 125

8 × 5

219.1 × 141.3

219 × 133

152

200 × 100

8 × 4

219.1 × 114.3

219 × 108

152

200 × 90

8 × 3.1 / 2

219.1 × 101.6

-

152

250 × 200

10 × 8

273.0 × 219.1

273 × 219

178

250 × 150

10 × 6

273.0 × 168.3

273 × 159

178

250 × 125

10 × 5

273.0 × 141.3

273 × 133

178

250 × 100

10 × 4

273.0 × 114.3

273 × 108

178

300 × 250

12 × 10

323.9 × 273.1

325 × 273

203

300 × 200

12 × 8

323.9 × 219.1

325 × 219

203

300 × 150

12 × 6

323.9 × 168.3

325 × 159

203

300 × 125

12 × 5

323.9 × 141.3

325 × 133

203

350 × 300

14 × 12

355.6 × 323.9

377 × 325

330

350 × 250

14 × 10

355.6 × 273.0

377 × 273

330

350 × 200

14 × 8

355.6 × 219.1

377 × 219

330

350 × 150

14 × 6

355.6 × 168.3

377 × 159

330

400 × 350

16 × 14

406.4 × 355.6

426 × 377

356

400 × 300

16 × 12

406.4 × 323.9

426 × 325

356

400 × 250

16 × 10

406.4 × 273.0

426 × 273

356

400 × 200

16 × 8

406.4 × 219.1

426 × 219

356

450 × 400

18 × 16

457 × 406,4

478 × 426

381

450 × 350

18 × 14

457 × 355.6

478 × 377

381

450 × 300

18 × 12

457 × 323.9

478 × 325

381

450 × 250

18 × 10

457 × 273.0

478 × 273

381

500 × 450

20 × 18

508 × 457

529 × 478

508

500 × 400

20 × 16

508 × 406,4

529 × 426

508

500 × 350

20 × 14

508 × 355.6

529 × 377

508

500 × 300

20 × 12

508 × 323.9

529 × 325

508

550 × 500

22 × 20

559 × 508

-

508

550 × 450

22 × 18

559 × 457

-

508

550 × 400

22 × 16

559 × 406,4

-

508

550 × 350

22 × 14

559 × 355.6

-

508

600 × 550

24 × 22

610 × 559

-

508

600 × 500

24 × 20

610 × 508

630 × 529

508

600 × 450

24 × 18

610 × 457

630 × 478

508

600 × 400

24 × 22

610 × 406.4

630 × 426

508

650 × 600

26 × 24

660 × 610

-

610

650 × 550

26 × 22

660 × 559

-

610

650 × 500

26 × 20

660 × 508

-

610

650 × 450

26 × 18

660 × 457

-

610

700 × 650

28 × 26

711 × 660

-

610

700 × 600

28 × 24

711 × 610

720 × 630

610

700 × 550

28 × 22

711 × 559

-

610

700 × 500

28 × 20

711 × 508

720 × 530

610

750 × 700

30 × 28

762 × 711

-

610

750 × 650

30 × 26

762 × 660

-

610

750 × 600

30 × 24

762 × 610

-

610

750 × 550

30 × 22

762 × 559

-

610

800 × 750

32 × 30

813 × 762

-

610

800 × 700

32 × 28

813 × 711

820 × 720

610

800 × 650

32 × 26

813 × 660

-

610

800 × 600

32 × 24

813 × 610

820 × 630

610

850 × 800

34 × 32

864 × 813

-

610

850 × 750

34 × 30

864 × 762

-

610

850 × 700

34 × 28

864 × 711

-

610

850 × 650

34 × 26

864 × 660

-

610

900 × 850

36 × 34

914 × 864

-

610

900 × 800

36 × 32

914 × 813

920 × 820

610

900 × 750

36 × 30

914 × 762

-

610

900 × 700

36 × 28

914 × 711

920 × 720

610

950 × 900

38 × 36

965 × 914

-

610

950 × 850

38 × 34

965 × 864

-

610

950 × 800

38 × 32

965 × 813

-

610

950 × 750

38 × 30

965 × 762

-

610

1000 × 950

40 × 38

1016 × 965

-

610

1000 × 900

40 × 36

1016 × 914

1020 × 920

610

1000 × 850

40 × 34

1016 × 864

-

610

1000 × 800

40 × 32

1016 × 813

1020 × 820

610

1050 × 1000

42 × 40

1067 × 1016

-

610

1050 × 950

42 × 38

1067 × 965

-

610

1050 × 900

42 × 36

1067 × 914

-

610

1050 × 850

42 × 34

1067 × 864

-

610

1100 × 1050

44 × 42

1118 × 1067

-

610

1100 × 1000

44 × 40

1118 × 1016

1120 × 1020

610

1100 × 950

44 × 38

1118 × 965

-

610

1100 × 900

44 × 36

1118 × 914

1220 × 920

610

1150 × 1100

46 × 44

1168 × 1118

-

711

1150 × 1050

46 × 42

1168 × 1067

-

711

1150 × 1000

46 × 40

1168 × 1016

-

711

1150 × 950

46 × 38

1168 × 965

-

711

1200 × 1150

48 × 46

1220 × 1168

-

711

1200 × 1100

48 × 44

1220 × 1118

1220 × 1120

711

1200 × 1050

48 × 42

1220 × 1067

-

711

1200 × 1000

48 × 40

1220 × 1016

1220 × 1020

711

catatan:
Dimensi sesuai dengan GB / T12459, GB / T13401, ASME B16.9, SH3408, SH3409, HG / T21635, HG / T21631, standar SY / T05010
