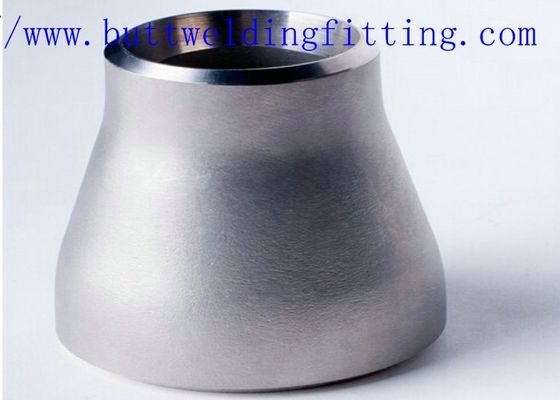

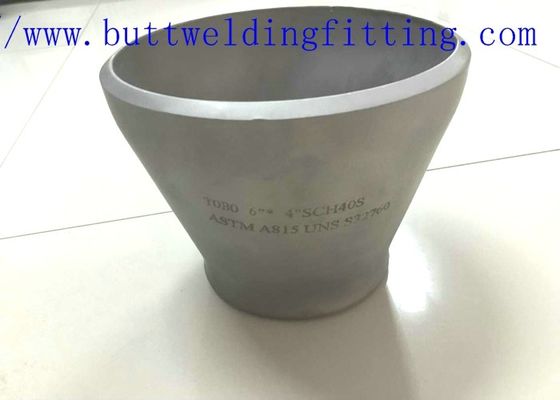

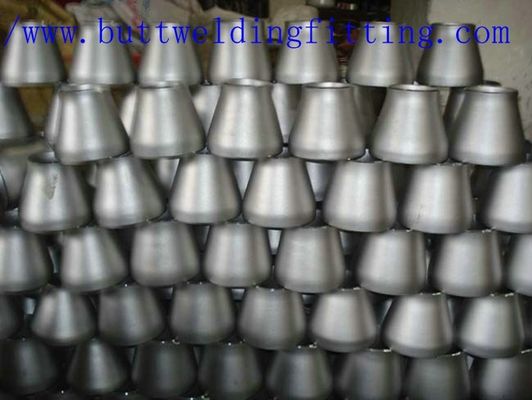

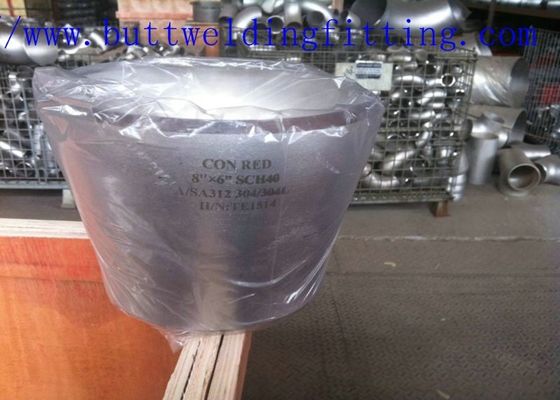

Ukuran 1/2 - 60 Inch Peredam Stainless Steel Seamless SS904L ASME Standar B16.9

  • Size 1/2 - 60 Inch Seamless Stainless Steel Reducer SS904L Standard ASME B16.9
  • Size 1/2 - 60 Inch Seamless Stainless Steel Reducer SS904L Standard ASME B16.9
  • Size 1/2 - 60 Inch Seamless Stainless Steel Reducer SS904L Standard ASME B16.9
  • Size 1/2 - 60 Inch Seamless Stainless Steel Reducer SS904L Standard ASME B16.9
Tempat asal Cina
Nama merek TOBO
Sertifikasi SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model Mulus atau las
Kuantitas min Order 1pc
Harga USD Depending on quantity
Kemasan rincian KASUS ply-WOODEN OR PALLET
Waktu pengiriman 10-100 hari tergantung pada kuantitas
Syarat-syarat pembayaran L/C, T/T, Western Union
Menyediakan kemampuan PC 5000 per bulan
Detail produk
Bahan 904L Ukuran 1 / 2-60 inch
Standar DIN, EN, ASTM, BS, JIS, GB, dll. Concreded; Peredam Ecc Mulus atau las
DN 15-2400
Menyoroti

Fitting Peredam Pipa

,

Reducer Pipa Konsentris
Tinggalkan pesan
Deskripsi Produk

Peredam Stainless Steel SS904L, UNS S32750, UNSS32760 310S, 317L, 321 CON REDUCER Size1 / 2-60inch

1. Item Produk No .: 007fittings-Cosco Steel

2. Ukuran: 13.7mm-1219.2mm (1/4 '' - 48 ''), DN8-DN1200

3. WT: SCH5S-XXS

4. Standar: ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419, DIN EN10253, JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, BS1387

5. Bahan baku
Baja karbon:
10 # 20 # Q235B ASTM A234 ASTM A105 ASTM A403
Baja Tahan Karat: 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti 00Cr17Ni14Mo2 304 304L 316 316L
Baja paduan:
16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1 A335P22 St45.8
ASTM A860 WPHY X42 X52 X60 X70
Baja aluminium:
1060,2024,2017,3003,5052,5083,6061,6083,6060,7075,8011

6. Packing: kasus kayu, palet kayu, atau sesuai dengan kebutuhan pelanggan

7. Penandaan: Logo terdaftar, Nomor Panas, Kelas Baja, Standar, Ukuran

8. Packing: kotak kayu atau palet kayu.

9. Kode HS: 73072300

10. Tekanan: PN40, 64, 100, 160, 250, 320, 1500, 2000, 2500, 3000, 6000,9000LBS

11. Pemeriksaan
a) Pabrik di rumah
b) Pemeriksaan pihak ketiga tersedia atas permintaan
c) Tersedia berbagai aksesoris

12. Perawatan:
a) Ringan diminyaki
b) Galvanis
d) sesuai kebutuhan pelanggan

13. Sertifikat: ISO9001: 2000, CE

14. Jangka waktu pembayaran L / CT / T (di muka)

15. Kemasan kasus kayu lapis, kasus kayu, palet, atau sesuai kebutuhan pelanggan

Diameter Nominal Diameter luar Ujung ke ujung
D1 * D2
DN NPS Seri A Seri B H
20 × 15 3/4 × 1/2 26,9 × 21,3 25 × 18 38
20 × 10 3/4 × 3/8 26,9 × 17,3 25 × 14 38
25 × 20 1 × 3/4 33,7 × 26,9 32 × 25 51
25 × 15 1 × 1/2 33,7 × 21,3 32 × 18 51
32 × 25 1.1 / 4 × 1 42,4 × 33,7 38 × 32 51
32 × 20 1.1 / 4 × 3/4 42,4 × 26,9 38 × 25 51
32 × 15 1.1 / 4 × 1/2 42,4 × 21,3 38 × 18 51
40 × 32 1.1 / 2 × 1.1 / 4 48,3 × 42,4 45 × 38 64
40 × 25 1.1 / 2 × 1 48,3 × 33,7 45 × 32 64
40 × 20 1.1 / 2 × 3/4 48,3 × 26,9 45 × 25 64
40 × 15 1.1 / 2 × 1/2 48,3 × 21,3 45 × 18 64
50 × 40 2 × 1.1 / 2 60,3 × 48,3 57 × 45 76
50 × 32 2 × 1.1 / 4 60,3 × 42,4 57 × 38 76
50 × 25 2 × 1 60,3 × 33,7 57 × 32 76
50 × 20 2 × 3/4 60,3 × 26,9 57 × 25 76
65 × 50 2.1 / 2 × 2 73.0 × 60.3 76 × 57 89
65 × 40 2.1 / 2 × 1.1 / 2 73.0 × 48.3 76 × 45 89
65 × 32 2.1 / 2 × 1.1 / 4 73.0 × 42.4 76 × 38 89
65 × 25 2.1 / 2 × 1 73.0 × 33.7 76 × 32 89
80 × 65 3 × 2.1 / 2 88.9 × 73.0 89 × 76 89
80 × 50 3 × 2 88.9 × 60.3 89 × 57 89
80 × 40 3 × 1.1 / 2 88.9 × 48.3 89 × 45 89
80 × 32 3 × 1.1 / 4 88,9 × 42,4 89 × 38 89
90 × 80 3.1 / 2 × 3 101.6 × 88.9 - 102
90 × 65 3.1 / 2 × 2.1 / 2 101.6 × 73.0 - 102
90 × 50 3.1 / 2 × 2 101.6 × 60.3 - 102
90 × 40 3.1 / 2 × 1.1 / 2 101.6 × 48.3 - 102
90 × 32 3.1 / 2 × 1.1 / 4 101.6 × 42.4 - 102
100 × 90 4 × 3.1 / 2 114,3 × 101,6 - 102
100 × 80 4 × 3 114,3 × 88,9 108 × 89 102
100 × 65 4 × 2.1 / 2 114,3 × 73.0 108 × 76 102
100 × 50 4 × 2 114,3 × 60,3 108 × 57 102
100 × 40 4 × 1.1 / 2 114,3 × 48,3 108 × 45 102
125 × 100 5 × 4 141.3 × 114.3 133 × 108 127
125 × 90 5 × 3.1 / 2 141.3 × 101.6 - 127
125 × 80 5 × 3 141.3 × 88.9 133 × 89 127
125 × 65 5 × 2.1 / 2 141.3 × 73.0 133 × 76 127
125 × 50 5 × 2 141.3 × 60.3 133 × 57 127
150 × 125 6 × 5 168.3 × 141.3 159 × 133 140
150 × 100 6 × 5 168,3 × 114,3 159 × 108 140
150 × 90 6 × 3.1 / 2 168.3 × 101.6 - 140
150 × 80 6 × 3 168.3 × 88.9 159 × 89 140
150 × 65 6 × 2.1 / 2 168.3 × 73.0 159 × 76 140
200 × 150 8 × 6 219.1 × 168.3 219 × 159 152
200 × 125 8 × 5 219.1 × 141.3 219 × 133 152
200 × 100 8 × 4 219.1 × 114.3 219 × 108 152
200 × 90 8 × 3.1 / 2 219.1 × 101.6 - 152
250 × 200 10 × 8 273.0 × 219.1 273 × 219 178
250 × 150 10 × 6 273.0 × 168.3 273 × 159 178
250 × 125 10 × 5 273.0 × 141.3 273 × 133 178
250 × 100 10 × 4 273.0 × 114.3 273 × 108 178
300 × 250 12 × 10 323.9 × 273.1 325 × 273 203
300 × 200 12 × 8 323.9 × 219.1 325 × 219 203
300 × 150 12 × 6 323.9 × 168.3 325 × 159 203
300 × 125 12 × 5 323.9 × 141.3 325 × 133 203
350 × 300 14 × 12 355.6 × 323.9 377 × 325 330
350 × 250 14 × 10 355.6 × 273.0 377 × 273 330
350 × 200 14 × 8 355.6 × 219.1 377 × 219 330
350 × 150 14 × 6 355.6 × 168.3 377 × 159 330
400 × 350 16 × 14 406.4 × 355.6 426 × 377 356
400 × 300 16 × 12 406.4 × 323.9 426 × 325 356
400 × 250 16 × 10 406.4 × 273.0 426 × 273 356
400 × 200 16 × 8 406.4 × 219.1 426 × 219 356
450 × 400 18 × 16 457 × 406,4 478 × 426 381
450 × 350 18 × 14 457 × 355.6 478 × 377 381
450 × 300 18 × 12 457 × 323.9 478 × 325 381
450 × 250 18 × 10 457 × 273.0 478 × 273 381
500 × 450 20 × 18 508 × 457 529 × 478 508
500 × 400 20 × 16 508 × 406,4 529 × 426 508
500 × 350 20 × 14 508 × 355.6 529 × 377 508
500 × 300 20 × 12 508 × 323.9 529 × 325 508
550 × 500 22 × 20 559 × 508 - 508
550 × 450 22 × 18 559 × 457 - 508
550 × 400 22 × 16 559 × 406,4 - 508
550 × 350 22 × 14 559 × 355.6 - 508
600 × 550 24 × 22 610 × 559 - 508
600 × 500 24 × 20 610 × 508 630 × 529 508
600 × 450 24 × 18 610 × 457 630 × 478 508
600 × 400 24 × 22 610 × 406.4 630 × 426 508
650 × 600 26 × 24 660 × 610 - 610
650 × 550 26 × 22 660 × 559 - 610
650 × 500 26 × 20 660 × 508 - 610
650 × 450 26 × 18 660 × 457 - 610
700 × 650 28 × 26 711 × 660 - 610
700 × 600 28 × 24 711 × 610 720 × 630 610
700 × 550 28 × 22 711 × 559 - 610
700 × 500 28 × 20 711 × 508 720 × 530 610
750 × 700 30 × 28 762 × 711 - 610
750 × 650 30 × 26 762 × 660 - 610
750 × 600 30 × 24 762 × 610 - 610
750 × 550 30 × 22 762 × 559 - 610
800 × 750 32 × 30 813 × 762 - 610
800 × 700 32 × 28 813 × 711 820 × 720 610
800 × 650 32 × 26 813 × 660 - 610
800 × 600 32 × 24 813 × 610 820 × 630 610
850 × 800 34 × 32 864 × 813 - 610
850 × 750 34 × 30 864 × 762 - 610
850 × 700 34 × 28 864 × 711 - 610
850 × 650 34 × 26 864 × 660 - 610
900 × 850 36 × 34 914 × 864 - 610
900 × 800 36 × 32 914 × 813 920 × 820 610
900 × 750 36 × 30 914 × 762 - 610
900 × 700 36 × 28 914 × 711 920 × 720 610
950 × 900 38 × 36 965 × 914 - 610
950 × 850 38 × 34 965 × 864 - 610
950 × 800 38 × 32 965 × 813 - 610
950 × 750 38 × 30 965 × 762 - 610
1000 × 950 40 × 38 1016 × 965 - 610
1000 × 900 40 × 36 1016 × 914 1020 × 920 610
1000 × 850 40 × 34 1016 × 864 - 610
1000 × 800 40 × 32 1016 × 813 1020 × 820 610
1050 × 1000 42 × 40 1067 × 1016 - 610
1050 × 950 42 × 38 1067 × 965 - 610
1050 × 900 42 × 36 1067 × 914 - 610
1050 × 850 42 × 34 1067 × 864 - 610
1100 × 1050 44 × 42 1118 × 1067 - 610
1100 × 1000 44 × 40 1118 × 1016 1120 × 1020 610
1100 × 950 44 × 38 1118 × 965 - 610
1100 × 900 44 × 36 1118 × 914 1220 × 920 610
1150 × 1100 46 × 44 1168 × 1118 - 711
1150 × 1050 46 × 42 1168 × 1067 - 711
1150 × 1000 46 × 40 1168 × 1016 - 711
1150 × 950 46 × 38 1168 × 965 - 711
1200 × 1150 48 × 46 1220 × 1168 - 711
1200 × 1100 48 × 44 1220 × 1118 1220 × 1120 711
1200 × 1050 48 × 42 1220 × 1067 - 711
1200 × 1000 48 × 40 1220 × 1016 1220 × 1020 711
catatan:
Dimensi sesuai dengan GB / T12459, GB / T13401, ASME B16.9, SH3408, SH3409, HG / T21635, HG / T21631, standar SY / T05010
