Kelengkapan Pipa Butt Welded Elbow 45 Deg

Mengetik

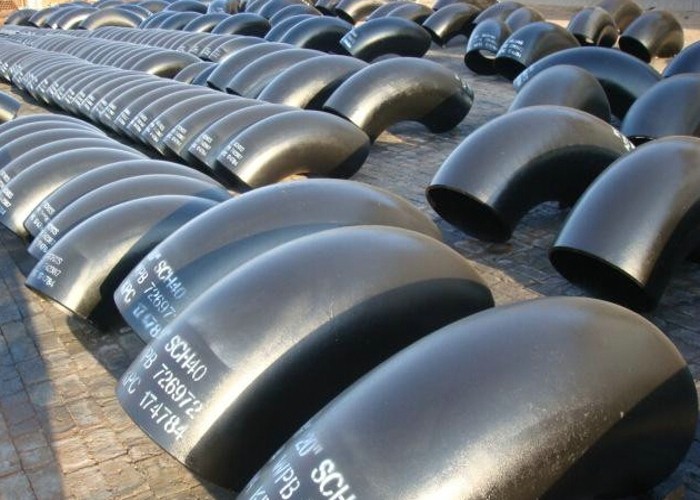

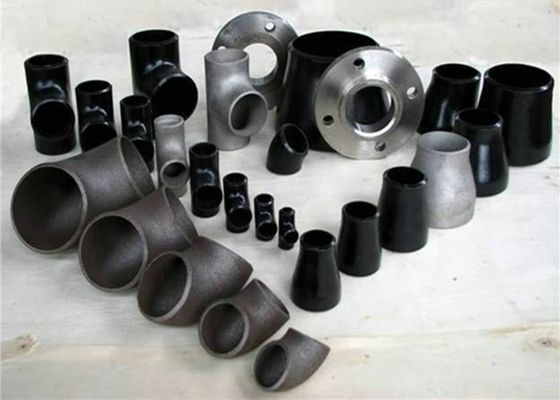

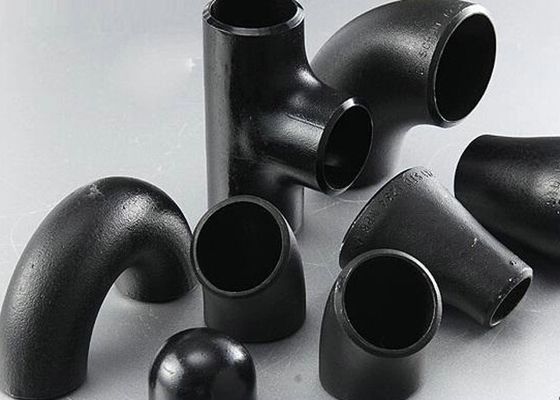

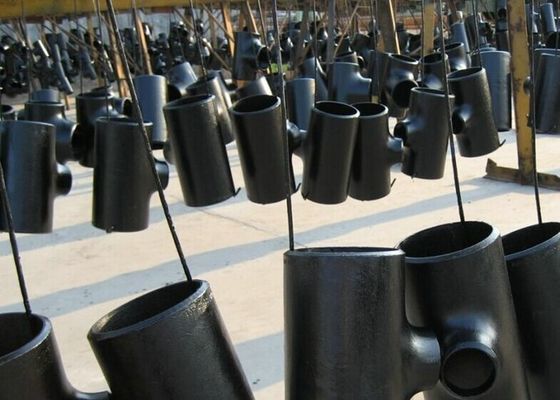

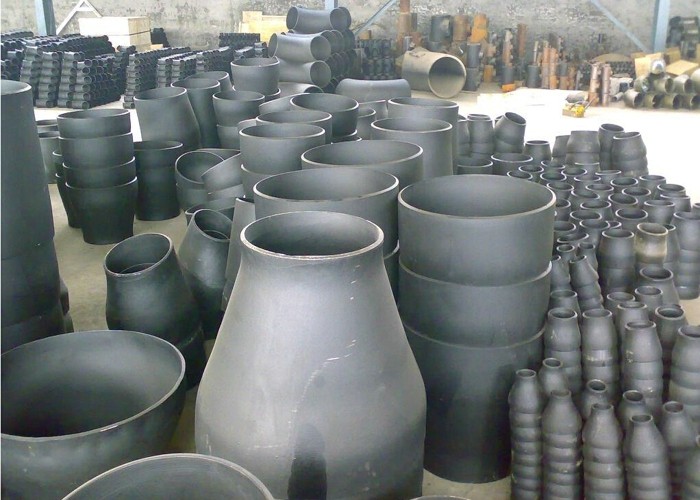

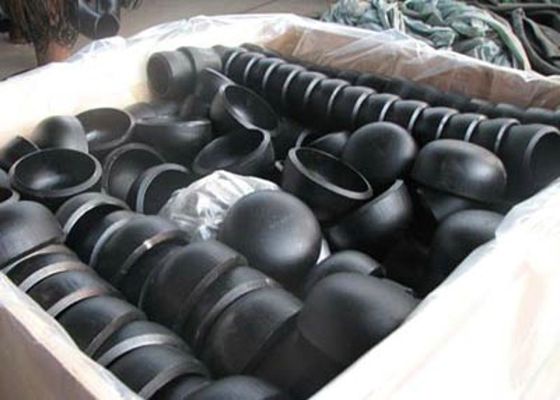

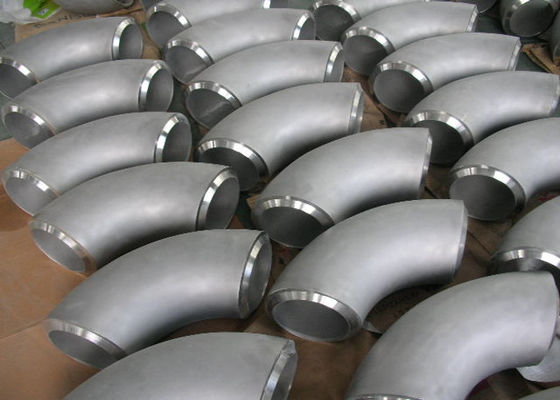

Butt weld fittings siku, peredam, tee, ujung rintisan, topi

Standar

ASME / ANSI B16.9

Ukuran

1/2 '' ~ 48 '' (Seamless); 16 '' ~ 72 '' (Dilas)

ketebalan dinding

Sch5 ~ Sch160XXS

Proses pembuatan

Push, Press, Forge, Cast, dll.

Bahan

Baja karbon, baja tahan karat, baja paduan, baja dupleks, baja paduan nikel

Baja karbon

ASTM A234 WPB, WPC;

Besi tahan karat

304 / SUS304 / UNS S30400 / 1.4301

304L / UNS S30403 / 1.4306;

304H / UNS S30409 / 1.4948;

309S / UNS S30908 / 1.4833

309H / UNS S30909;

310S / UNS S31008 / 1.4845;

310H / UNS S31009;

316 / UNS S31600 / 1.4401;

316Ti / UNS S31635 / 1.4571;

316H / UNS S31609 / 1.4436;

316L / UNS S31603 / 1.4404;

316LN / UNS S31653;

317 / UNS S31700;

317L / UNS S31703 / 1.4438;

321 / UNS S32100 / 1.4541;

321H / UNS S32109;

347 / UNS S34700 / 1.4550;

347H / UNS S34709 / 1.4912;

348 / UNS S34800;

Baja paduan

ASTM A234 WP5 / WP9 / WP11 / WP12 / WP22 / WP91;

ASTM A860 WPHY42 / WPHY52 / WPHY60 / WPHY65;

ASTM A420 WPL3 / WPL6 / WPL9;

Baja dupleks

ASTM A182 F51 / S31803 / 1.4462;

ASTM A182 F53 / S2507 / S32750 / 1.4401;

ASTM A182 F55 / S32760 / 1.4501 / Zeron 100;

2205 / F60 / S32205;

ASTM A182 F44 / S31254 / 254SMO / 1.4547;

17-4PH / S17400 / 1.4542 / SUS630 / AISI630;

F904L / NO8904 / 1.4539;

725LN / 310MoLN / S31050 / 1.4466

253MA / S30815 / 1.4835;

Baja paduan nikel

Paduan 200 / Nikel 200 / NO2200 / 2.4066 / ASTM B366 WPN;

Paduan 201 / Nikel 201 / NO2201 / 2.4068 / ASTM B366 WPNL;

Paduan 400 / Monel 400 / NO4400 / NS111 / 2.4360 / ASTM B366 WPNC;

Paduan K-500 / Monel K-500 / NO5500 / 2.475;

Paduan 600 / Inconel 600 / NO6600 / NS333 / 2.4816;

Paduan 601 / Inconel 601 / NO6001 / 2.4851;

Paduan 625 / Inconel 625 / NO6625 / NS336 / 2.4856;

Paduan 718 / Inconel 718 / NO7718 / GH169 / GH4169 / 2.4668;

Paduan 800 / Incoloy 800 / NO8800 / 1.4876;

Paduan 800H / Incoloy 800H / NO8810 / 1.4958;

Paduan 800HT / ​​Incoloy 800HT / ​​NO8811 / 1.4959;

Paduan 825 / Incoloy 825 / NO8825 / 2.4858 / NS142;

Paduan 925 / Incoloy 925 / NO9925;

Hastelloy C / Alloy C / NO6003 / 2.4869 / NS333;

Paduan C-276 / Hastelloy C-276 / N10276 / 2.4819;

Paduan C-4 / Hastelloy C-4 / NO6455 / NS335 / 2.4610;

Paduan C-22 / Hastelloy C-22 / NO6022 / 2.4602;

Paduan C-2000 / Hastelloy C-2000 / NO6200 / 2.4675;

Paduan B / Hastelloy B / NS321 / N10001;

Paduan B-2 / Hastelloy B-2 / N10665 / NS322 / 2.4617;

Paduan B-3 / Hastelloy B-3 / N10675 / 2.4600;

Paduan X / Hastelloy X / NO6002 / 2.4665;

Paduan G-30 / Hastelloy G-30 / NO6030 / 2.4603;

Paduan X-750 / Inconel X-750 / NO7750 / GH145 / 2.4669;

Paduan 20 / Tukang Kayu 20Cb3 / NO8020 / NS312 / 2.4660;

Paduan 31 / NO8031 / 1.4562;

Paduan 901 / NO9901 / 1.4898;

Incoloy 25-6Mo / NO8926 / 1.4529 / Incoloy 926 / Alloy 926;

Inconel 783 / UNS R30783;

NAS 254NM / NO8367;

Monel 30C

Nimonic 80A / Nikel Paduan 80a / UNS N07080 / NA20 / 2.4631 / 2.4952

Nimonic 263 / NO7263

Nimonic 90 / UNS NO7090;

Incoloy 907 / GH907;

Nitronic 60 / Alloy 218 / UNS S21800

Nama produk: baja karbon siku 180º Item: buttweld-Elbow Detail: Diameter Nominal Diameter luar di Bevel Center to End Pusat ke Pusat Kembali ke Wajah 45 ° Siku 90 ° Siku Siku 180 ° B SEBUAH HAI K DN NPS Seri A Seri B Panjang Radius Panjang Radius Pendek Radius Panjang Radius Pendek Radius Panjang Radius Pendek Radius 15 1/2 21.3 18 16 38 - 76 - 48 - 20 3/4 26.9 25 19 38 - 76 - 51 - 25 1 33.7 32 22 38 25 76 51 56 41 32 1.1 / 4 42.4 38 25 48 32 95 64 70 52 40 1.1 / 2 48.3 45 29 57 38 114 76 83 62 50 2 60.3 57 35 76 51 152 102 106 81 65 2.1 / 2 76.1 (73) 76 44 95 64 190 127 132 100 80 3 88.9 89 51 114 76 229 152 159 121 90 3.1 / 2 101.6 - 57 133 89 267 178 184 140 100 4 114.3 108 64 152 102 305 203 210 159 125 5 139.7 133 79 190 127 381 254 262 197 150 6 168.3 159 95 229 152 457 305 313 237 200 8 219.1 219 127 305 203 610 406 414 313 250 10 273.0 273 159 381 254 762 508 518 391 300 12 323.9 325 190 457 305 914 610 619 467 350 14 355.6 377 222 533 356 1067 711 711 533 400 16 406.4 426 254 610 406 1219 813 813 610 450 18 457.2 478 286 686 457 1372 914 914 686 500 20 508.0 529 318 762 508 1524 1016 1016 762 550 22 559 - 343 838 559 1676 1118 1118 838 600 24 610 630 381 914 610 1829 1219 1219 914 650 26 660 - 406 991 660 1982 1320 - - 700 28 711 720 438 1067 711 2134 1422 - - 750 30 762 - 470 1143 762 2286 1524 - - 800 32 813 820 502 1219 813 2438 1626 - - 850 34 864 - 533 1295 864 2590 1728 - - 900 36 914 920 565 1372 914 2744 1828 - - 950 38 965 - 600 1448 965 2896 1930 - - 1000 40 1016 1020 632 1524 1016 3048 2032 - - 1050 42 1067 - 660 1600 1067 3200 2134 - - 1100 44 1118 1120 695 1676 1118 3352 2236 - - 1150 46 1168 - 727 1753 1168 3506 2336 - - 1200 48 1220 1220 759 1829 1219 3658 2440 -
