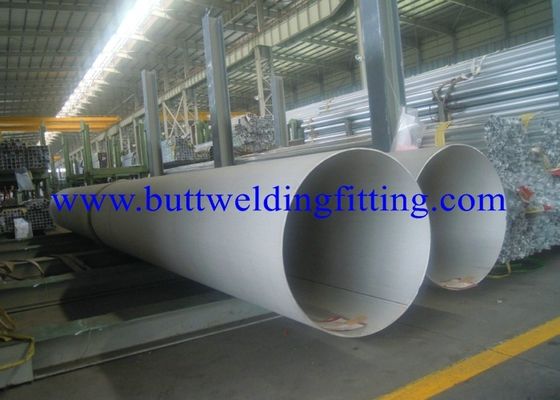

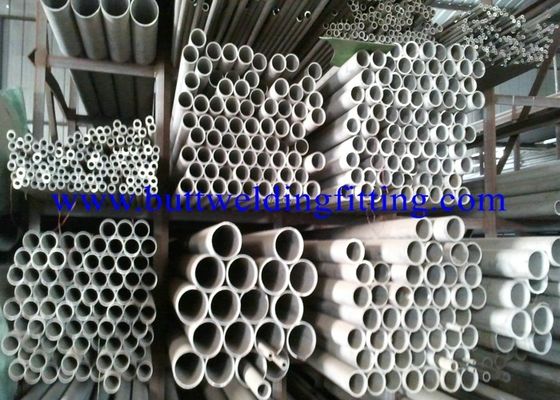

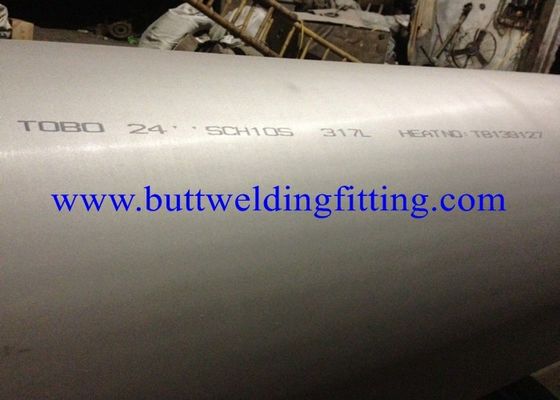

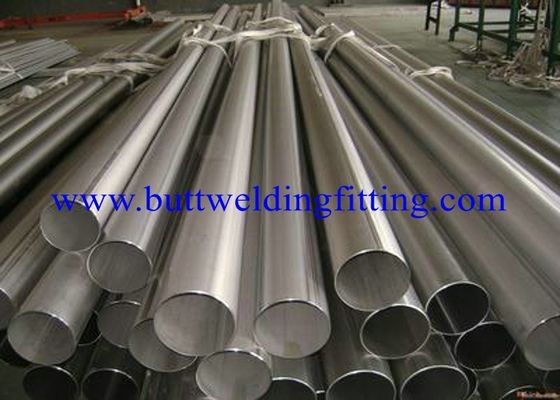

Pipa Stainless Steel Duplex Seamless

Tempat asal	China / Jepang / Jerman
Nama merek	TOBO/TPCO/TISCO/VALIN/METAL
Sertifikasi	ISO/PED/TUV/SGS/LR/BV
Nomor model	TOBO Hastelloy C-4 (UNS No. N06455), C-276 (UNS No. N10276), Hastelloy C 22 (UNS No. N06022), Hastel
Kuantitas min Order	1m
Harga	USD
Kemasan rincian	PLY-KAYU
Waktu pengiriman	5-65workdays
Syarat-syarat pembayaran	T / T, L / C, Western Union,
Menyediakan kemampuan	30000TON / TAHUN

Detail produk

Standar	ASTM / ASME A789 / SA789, A790 / SA790, A450, A530	Akhir	Pipa ini memiliki akhir polos, miring akhir, threaded dan fitur seperti panas dicelupkan galvanis, e
warna	Hitam atau merah	ASTM	B622, B619, B622, B626
Panjang	Tunggal Acak, Double Acak & Cut Panjang	Kelas	UNS S32750 2507
Jenis	Mulus	Bentuk	Bulat, persegi, persegi panjang, Hydraulic dll
Menyoroti	pipa duplex ss , pipa stainless steel tipis dinding

Tinggalkan pesan

Deskripsi Produk

Super Duplex Seamless Pipe, Tube Super Duplex ASTM A790 / 790M UNS S32750 (1,4410) ASTM A789 / 789M 2507 TUV CE

Standar:	ASTM / ASME A789 / SA789, A790 / SA790, A450, A530	Panjangnya:	Acak Tunggal, Acak Ganda & Panjang Potong
Akhir:	Pipa-Pipa Ini Memiliki Ujung Polos, Ujung Miring, Berulir Dan Fitur-Fitur Seperti Galvanisasi Dicelupkan Panas, Lapisan Epoxy & Fbe Dan Elektro Polandia	Kelas:	UNS S32750 2507
Warna:	Hitam atau merah	Jenis:	Mulus
ASTM:	B622, B619, B622, B626	Bentuk:	Bulat, Kotak, Persegi Panjang, Hidrolik Dll

Pipa mulus Hastelloy C276, ASTM B622, ASTM B619, ASTM B775, ASTM B516, ASTM B626, ISO 6207, DIN 17751, DIN 17751, TUV CE

uns s32750 PIPA baja stainless super duplex
1 Cabang: TOBO
2Jaminan kualitas seumur hidup
3 Ketebalan: 0,5-30mm
4Stock: 950 ton

TOBO uns s32750 baja tahan karat super dupleks

Deskripsi singkat pipa dan alat kelengkapan stainless steel TOBO uns s32750 super duplex

1China pabrik baja tahan karat terbesar
2Jaminan kualitas seumur hidup
3 Kapasitas tahunan: 100 juta
4 persediaan

5thickness: 0.2-20mm

6 lebar: 200-2000mm

Pipa mulus Hastelloy C276, ASTM B622, ASTM B619, ASTM B775, ASTM B516, ASTM B626, ISO 6207, DIN 17751, DIN 17751, TUV CE

Produk: Pemasangan Butt-Welding
Bahan:	SA234, SA403
Kelas:	Bahan: • Baja karbon: ASTM A234, WPB, WPC, ASTM A420 WPL1, WPL3, WPL6, WPHY-42/46/52/56/56/60/65/70 Baja tahan karat: ASTM A403 WP304 / 304L, WP316 / 316 / L, WP321, WP347 dan WPS31254 Baja paduan: ASTM A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP7 / WP9 / WP91 Baja dupleks dan super dupleks: ASTM A815 UNS S31803 / S32750 / S32760 Baja paduan khusus: Monel400 dan Inconel 600/800/825 / C276 Standar Eksekutif: ASME B 16.9, GB / T12459, DIN, JIS, BS, dll
Tipe produk:	Siku (Panjang, Pendek), Kembali (Panjang, Pendek), Tee, Salib, Topi, Peredam ... dll.
Ukuran (NPS):	Long Radius Elbow, Straight Tee and Cross, Cap (1/2 "hingga 48"). Radius Pendek 180 deg Kembali, Radius Pendek Siku (1 "hingga 24"). Long Radius Return (1/2 "hingga 24"). Long Radius Reducing Elbow (2 "x 1-1 / 2" hingga 24 "x 12"). Reducing Outlet Tee dan Reducing Outlet Cross (1/2 ”x 1/2” x 3/8 ”hingga 48” x 48 ”x 22”). Peredam (3/4 "x 1/2" hingga 48 "x 40").

Jenis Flange	WN / pengelasan flensa leher; SO / slip on flensa; PL / Plate flange; BL / Flange buta; Flensa Th / Berulir; flensa las SW / socket; LF / SE (mengarah flange / ujung rintisan); LWN / flensa leher las panjang; Orifice flange; Mengurangi flange; API flange; Flensa Integral / Ringkas; Tontonan buta, Spade dan spacer garis, Paddle blind, Paddle spacer; Pelat lubang, Pelat pipa, Cincin berdarah, Flensa pelat
Standar	ANSI B16.5, ANSI B16.47, ANSI B16.48, ANSI B16.36, JIS B2220, BS4504, BS1560, BS10; MSS SP44 DIN2630, DIN2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2501 (WN); DN2573, DIN2576, DIN2527, DIN2655, DIN2656 (PL); DIN2566 (TH)
Ukuran	1/2 '' ~ 60 ''
Peringkat Kelas	150 ~ 2500
Menghadapi	RF (wajah terangkat); FF (wajah datar), RTJ (ring type joint); RJ (ring joint face) TG (lidah dan wajah alur); MFM (wajah pria dan wanita)
Proses pembuatan	Push, Press, Forge, Cast, dll.
Bahan Baja karbon Besi tahan karat Baja paduan Duplex stainless steel	Baja karbon, baja tahan karat, baja paduan
	ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70; ASTM A234 WPB, WPC; ASTM A420 WPL6, WPL3; ASTM A105; ASTM A860; ASTM A350 LF1, LF2 CL1 / CL2, LF3 CL1 / CL2; ASTM A266 GR.1, GR.2, GR.3, GR.4 API 5L GR.B
	ASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316Ti, 316L, 317, 317L, 321, 347.347 jam, 348.254SMO, S31254, UNS 8020, F45, S30815, F46, S30600, F904L A182 F56, S33228, F58, S31266, F62, N08367, ASTM A312
	ASTM A182 F5, F5a, F9, F11, F12, F22, F91;
	ASTM A182 F51 / UNS S31803, F53 / UNS S32750, F55 / UNS S32760
Pengepakan	Kotak kayu, palet, tas nilon atau sesuai dengan kebutuhan pelanggan
MOQ	1 buah
Waktu pengiriman	10-100 hari tergantung pada kuantitas
Syarat pembayaran	T / T
Pengiriman	FOB Shanghai, CFR, CIF dll
Aplikasi	Minyak / Daya / Kimia / Konstruksi / Gas / Metalurgi / Pembuatan Kapal dll
Komentar	Bahan dan gambar lain tersedia.

Produk

Flensa

WN (pengelasan-leher); SO (slip-on); PL (Plat); BL (Buta); TH (Berulir); SW (pengelasan soket); LF / SE (flap bertutup / ujung rintisan); LWN (panjang leher pengelasan); flens lubang udara; Mengurangi flensa; API mengarah; Flensa Integral / Kompak; Tontonan buta, Lind spade dan spacer, Paddle blind, Paddle spacer; Orifice plate; Plat pipa, cincin berdarah.

standar

Standar Amerika

ANSIB16.5, B16.7, / API605,6A, 6B / MSS SP44 / AWWA C207

Jerman

standar

DIN2630,2631,2632,2633,2634,2635,2636,2637,2638,2501 (WN); DIN2573.2576.2527.2655.2656 (PL); DIN2566 (TH)

Inggris

Standar

BS4504 PN16, PN40 / BS10

Jepang

Standar

JIS / KS5K, 10K, 16K, 20K

Rusia

Standar

GOST12820.12821

Cina

Standar

Non-

standar

Menurut ukuran gambar dari 10mm-5000mm, berat mulai 0,5K hingga 30 ton

Ukuran

1/2 "-60"

Bahan

Baja karbon

ASTM A106 GR.B, GR.C,; ASTM A333 GR.1, GR.3, GR.6;

ASTM / ASME S / A179 / A 179M;

ASTM / ASME S / A192 / A 192M;

ASTM / ASME S / A210 / A 210M GR.A; API 5L GR.B,

X42, X52, X60, X65;

ASTM A860 / A 860M WPHY42, WPHY52, WPHY60, WPHY65, WPHY70;

ASTM A694 / A 694M F42, F46, F48, F50, F52, F56, F60, F65, F70;

ASTM / ASME S / A234 / A 234M WPB, WPC;

ASTM / ASME S / A420 / A 420M WPL6, WPL3;

ASTM / ASME S / A105 / A 105M;

ASTM / ASME S / A266 / A 266M GR.1, GR.2, GR.3, GR.4;

ASTM / ASME S / A350 / A 350M LF1, LF2, LF3;

ASTM A193 B7, A307 B, A 320 L 7 ;;

Baja paduan

ASTM / ASMES / A335 / A315MP5, P9, P11,

P12, P22, P91;

ASTM / ASMES / A213A 213MT5, T9, T11,

T12, T22, T23T91;

DIN1717510CrMo910,13CrMo44,

10Cr9Mo1VNb; WB36 (15NiCuMoNb5);

ASTM / ASMES / A234 / A234MWP5, WP9,

WP11, WP12, WP22, WP9;

ASTM / ASMES / A182 / A182MF5, F5a,

F9, F11, F12, F22, F91;

ASTM / ASME S / A336 / A 336M F5,

F9, F11, F12, F22, F91.

Besi tahan karat

ASTM / ASMEA / SA182F304,304L,

304H, 309S, 309H, 310S, 310H,

316,316TI, 16H, 316L, 316LN, 317,317L,

321,321H, 347,347H, 348,348H,

F40 / S31254, F20 / N08020, F45 / S30815,

F46 / S30600, F47 / S31725, F48 / S31726,

F49 / S34565, F56 / S33228, F58 / S31266,

F62 / N08367 / 1.4529

Baja Dupleks / Baja Dupleks Super

ASTM / ASMEA / SA182F51 / 2205 / S31803 / 1.4462

; F53 / 2507 / S32750 / 1.4410;

F55 / S32760, F50 / S31200; F57 / S39277;

F59 / S32520; F60 / S32205;

F61 / S3225F904L / N08904 / 1.4539;

254SMO / S31254 / 1.4574; S31050 / 1.4466;

17-4PH / S1400 / 1.4548724L; 316Lmod / 1.4435;

725LN / 310MoLN

UNS S31254 / 254SMo / F44, S31200 / F50, S31803 / F51 / 2205,

S32950 / F52, S32750 / F53 / 2507,

S39274 / F54, S32760 / F55, S39277 / F57, S32520 / F59,

S32205 / F60, F62 / No8367, S32550 / F61 / 00cr25ni6.5mo3cun, S32906 / F65

KELOMPOK TOBO

Penjelasan terperinci dari TOBO uns s32750 stainless steel super duplex

Komposisi kimia dari TOBO uns s32750 baja tahan karat super duplex

Kode Bahan		Persen massa (%)
Kode Bahan		C	Si	M N	P	S	Cr	Ni	Mo	N
2101 (S32101,1.4162)	ASTM	≤0,040	≤1.00	4,00-6,00	≤0,040	≤0.030	21.0-22.0	1.35-1.70	0,1-0,8	0,20-0,25
2101 (S32101,1.4162)	Nilai khas	0,028	0,071	5.03	0,028	0,001	21.5	1,55	0,3	0,22
2304 (S32304,1.462)	ASTM	≤0.030	≤1.00	≤2,50	≤0,040	≤0.030	21.5-24.5	3.0-5.5	0,05-0,60	0,05-0,20
2304 (S32304,1.462)	Nilai khas	0,026	0,5	1.28	0,028	0,001	23.5	4.05	0,3	0,12
2205 (S31803, S32205,1.4462)	ASTM a	≤0.030	≤1.00	≤2.00	≤0.030	≤0.020	21.0-23.0	4.5-6.5	2.5-3.5	0,08-0,20
	ASTM b	≤0.030	≤1.00	≤2.00	≤0.030	≤0.020	22.0-23.0	4.5-6.5	3.0-3.5	0,14-0,20
	Nilai khas	0,025	0,55	1.2	0,028	0,001	22.1	5.10	3.10	0,17
2507 (S32750,1.4410)	ASTM	≤0.030	≤1.00	≤1.20	≤0.035	≤0.020	24.0-26.0	6.0-8.0	3.0-5.0	0,24-0,32
2507 (S32750,1.4410)	Nilai khas	0,026	0,55	0,78	0,028	0,001	25.5	7.40	4.10	0,28

Sifat Mekanis dari TOBO uns s32750 baja tahan karat super dupleks

Kode Bahan		Rp0.2 / MPa	Rm / MPa	SEBUAH/%	HB
2101 (S32101,1.4162)	ASTM	≥450	≥620	≥25	≤293
2101 (S32101,1.4162)	Nilai khas	530	720	33	240
2304 (S32304,1.4362)	ASTM	≥400	≥600	≥25	≤293
2304 (S32304,1.4362)	Nilai khas	520	710	35	245
2205 (S31803. S32205.1.4462)	ASTMa	≥450	≥620	≥25	≤293
	ASTMb	≥450	≥655	≥25	255
	Nilai khas	550	750	33	≤293
2507 (S32750.1.4410)	ASTM	≥550	≥795	≥15	260
2507 (S32750.1.4410)	Nilai khas	580	850	31	≤310

Proses produksi TOBO uns s32750 baja tahan karat super duplex Harga terbaik TISCO uns s32750 stainless steel super duplex

Peralatan produksi canggih dari TOBO uns s32750 baja stainless super duplex Harga terbaik TISCO uns s32750 stainless steel super duplex

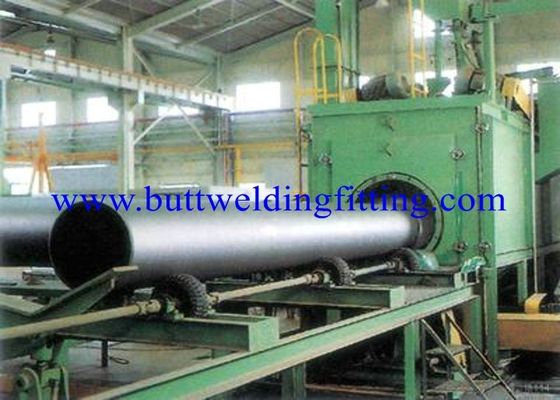

Lini produksi TOBO uns s32750 baja tahan karat super dupleks Harga terbaik TISCO uns s32750 stainless steel super duplex

R & D kemampuan TOBO uns s32750 baja stainless super duplex

Ini memiliki kekuatan tinggi karena kekuatan luluh dua kali lipat dari baja tahan karat tipe 18-8. Resistensi korosi lubang yang baik dan ketahanan korosi tegangan, kecenderungan kecil untuk pengelasan retak panas, konduktivitas besar dan koefisien ekspansi linier kecil cocok untuk diproduksi line os fasilitas, tabung pertukaran panas dan menghasilkan pelat berpakaian. Selain itu, ia memiliki tingkat pengerasan worl yang tinggi, penyerapan energi yang tinggi dan dengan resistensi barang.

Kemampuan las TOBO uns s32750 baja tahan karat super dupleks

1 Tidak ada pemanasan awal pengelasan

2Weldinterpass suhu lebih rendah 150, Suhu untuk 2507 lebih rendah 100

3Bahan pengelasan khusus untuk stainless steel duplex diperlukan

4 Panas masuk bervariasi dengan komposisi dan ketebalan baja tahan karat dupleks.

Grup baja TOBO menyediakan berbagai alat kelengkapan yang komprehensif,

flensa dan item tambahan dalam material agar sesuai dengan rentang pipa PTCL sebagaimana terinci.

Stok, bekas pabrik, atau basis pengiriman pembuatan khusus, tersedia.

Tes eddy saat ini

Spektrometer membaca langsung

Detektor ultrasonik

alat uji hidrolik

Laboratorium kimia

Mesin uji universal

Penguji kekerasan

Mikroskop metalografi diimpor

Analisis mikro

Analisis kimia

Selalu mencari kesempurnaan adalah basis kelangsungan hidup kita. Perusahaan modern mengejar "konsep yang berpusat pada manusia". Kami mulai dengan meningkatkan kualitas staf, dan mencoba membiarkan kami mengerahkan kemampuan potensial, sehingga untuk mencapai kesadaran kualitas, memastikan kualitas kelas satu. Kesempurnaan, adalah ketekunan terhadap perincian, kesempurnaan, adalah tantangan terhadap teknologi, kesempurnaan, adalah pemahaman untuk kata pengantar, kesempurnaan, adalah rujukan untuk kualitas, kesempurnaan, adalah fanatisme ke tingkat tertinggi.

Mesin pemotong kawat

Spektrometer membaca-langsung

Peralatan tester dampak
