GRUP TOBO
TOBO Perdagangan Internasional (Shanghia) Co., LtdTianda Oil Pipe Co., Ltd
Peralatan Pipa TOBO Co, Ltd Pipa TPCO & TISCO (Tianjin) Co, Ltd.
| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO/TPCO/TISCO/VALIN/METAL |
| Sertifikasi: | ISO/PED/TUV/SGS/LR/BV |
| Nomor model: | <i>ASTM A335 Gr.</i> <b>ASTM A335 GR.</b> <i>P5, P9, P11</i> <b>P5, P9, P11</b> |
| Kuantitas min Order: | 0,5-1 ton |
| Harga: | negotiable |
| Kemasan rincian: | dalam kantong plastik kemudian di bundel |
| Waktu pengiriman: | Menurut qty |
| Syarat-syarat pembayaran: | T/T, Serikat Barat |
| Menyediakan kemampuan: | 6000TON/BULAN |
| UKURAN: | Untuk Diameter 38.1mm/42.4mm/48.3mm/50.8mm | Tempat asal: | Cina |
|---|---|---|---|
| Standar: | ASTM | Sampel: | Menyediakan |
| Aplikasi: | Pipa Fluida, Pipa Boiler, Pipa Bor, Pipa Hidrolik, Gas | Bentuk bagian: | Bulat |
| Bahan: | Baja mulus | Dipasang: | Lantai |
| Bahan: | Dupleks2205/S31803/F51/F53/2205/S32750 | Jenis: | Soket Las/NPT/BSPT |
| Tekanan: | 1500LB,3000LB, 6000LB, 9000LB | Asal: | Cina, Wenzhou |
| Kode HS: | 7307220000 | Standar: | ASME B16.11-GB/T 14383-08 - BS3799 - JIS B2316 |

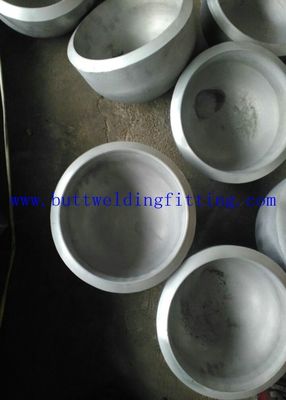

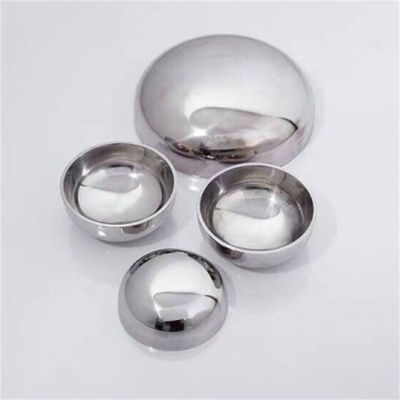

Butt Welded Seamless Steel Pipe Fittings Cap ASME / ANSI B16.9 UNS S31803 / 2205
1) Jenis: Butt welded dan fitting pipa mulus.
2) Ukuran: Kami juga dapat memproduksi spesifikasi lain sesuai dengan kebutuhan pelanggan, DN15-DN1200 (1/2"-48").
3) Ketebalan dinding: SCH10S-SCH80S.
4) Standar: ASME/ANSI B16.9, GB/T12459, GB/T13401, SH3408, SH3409, HG/T21635, HG/T21631, MSS SP-43, DIN 2605, JIS B2313
5) Bahan: Baja tahan karat (304, 304L, 316, 316L, 321, 321H, 310S, 347H).
6) Produk kami tahan korosi dan suhu tinggi.
7) Kisaran aplikasi: Untuk digunakan dalam minyak bumi, peleburan, bahan makanan, listrik, pembuatan kertas, kimia, peralatan medis, penerbangan, penukar panas boiler, dan bidang lainnya.
| Tipe CAP | Tutup baja tahan karat |
| Standar | ASME/ANSI B16.9 |
| Ukuran | 1/2''~48''(Mulus);16''~72''(Dilas) |
| ketebalan dinding | Sch5~Sch160XXS |
| Proses manufaktur | Dorong, Tekan, Tempa, Lempar, dll. |
| Bahan | Baja karbon, baja tahan karat, baja paduan, baja tahan karat dupleks, baja paduan nikel |
| Baja karbon | ASTM A234WPB, WPC; |
| Besi tahan karat |
304/SUS304/UNS S30400/1.4301 304L/UNS S30403/1.4306; 304H/UNS S30409/1.4948; 309S/UNS S30908/1.4833 309H/UNS S30909; 310S/UNS S31008/1.4845; 310H/UNS S31009; 316/UNS S31600/1.4401; 316Ti/UNS S31635/1.4571; 316H/UNS S31609/1.4436; 316L/UNS S31603/1.4404; 316LN/UNS S31653; 317/UNS S31700; 317L/UNS S31703/1.4438; 321/UNS S32100/1.4541; 321H/UNS S32109; 347/UNS S34700/1.4550; 347H/UNS S34709/1.4912; 348/UNS S34800; |
| Baja paduan |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65; ASTM A420 WPL3/WPL6/WPL9; |
| Baja rangkap |
ASTM A182 F51/S31803/1.4462; ASTM A182 F53/S2507/S32750/1.4401; ASTM A182 F55/S32760/1.4501/Nol 100; 2205/F60/S32205; ASTM A182 F44/S31254/254SMO/1.4547; 17-4PH/S17400/1.4542/SUS630/AISI630; F904L/NO8904/1.4539; 725LN/310MoLN/S31050/1.4466 253MA/S30815/1.4835; |
| Baja paduan nikel |
Paduan 200/Nikel 200/NO2200/2.4066/ASTM B366 WPN; Paduan 201/Nikel 201/NO2201/2.4068/ASTM B366 WPNL; Paduan 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Paduan K-500/Monel K-500/NO5500/2.475; Paduan 600/Inconel 600/NO6600/NS333/2.4816; Paduan 601/Inconel 601/NO6001/2.4851; Paduan 625/Inconel 625/NO6625/NS336/2.4856; Paduan 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Paduan 800/Incoloy 800/NO8800/1.4876; Paduan 800H/Incoloy 800H/NO8810/1.4958; Paduan 800HT/Incoloy 800HT/NO8811/1.4959; Paduan 825/Incoloy 825/NO8825/2.4858/NS142; Paduan 925/Incoloy 925/NO9925; Pelindung C/Paduan C/NO6003/2.4869/NS333; Paduan C-276/Pelindung C-276/N10276/2.4819; Paduan C-4/Pelindung C-4/NO6455/NS335/2.4610; Paduan C-22/Pelindung C-22/NO6022/2.4602; Paduan C-2000/Pelindung C-2000/NO6200/2.4675; Paduan B/Pelindung B/NS321/N10001; Paduan B-2/Pelindung B-2/N10665/NS322/2.4617; Paduan B-3/Pelindung B-3/N10675/2.4600; Paduan X/Pelindung X/NO6002/2.4665; Paduan G-30/Pelindung G-30/NO6030/2.4603; Paduan X-750/Inconel X-750/NO7750/GH145/2.4669; Paduan 20/Tukang Kayu 20Cb3/NO8020/NS312/2.4660; paduan 31/NO8031/1.4562; Paduan 901/NO9901/1.4898; Incoloy 25-6Mo/NO8926/1.4529/Incoloy 926/Paduan 926; Inconel 783/UNS R30783; NAS 254NM/NO8367; Monel 30C Nimonic 80A/Paduan Nikel 80a/UNS N07080/NA20/2.4631/2.4952 Nimonik 263/NO7263 Nimonic 90/UNS NO7090; Incoloy 907/GH907; Nitronic 60/Paduan 218/UNS S21800 |
| Kemasan | Kotak kayu, palet, tas nilon atau sesuai dengan kebutuhan pelanggan |
| MOQ | 1 buah |
| Waktu pengiriman | 10-100 hari tergantung pada kuantitas |
| Syarat pembayaran | T/T atau Western Union atau LC |
| Pengiriman | FOB Tianjin/Shanghai, CFR, CIF, dll |
| Aplikasi | Petroleum / Tenaga / Kimia / Konstruksi / Gas / Metalurgi / Pembuatan Kapal dll |
| Perkataan | Bahan dan gambar lain tersedia. |
| Selamat datang untuk menghubungi kami. | |
