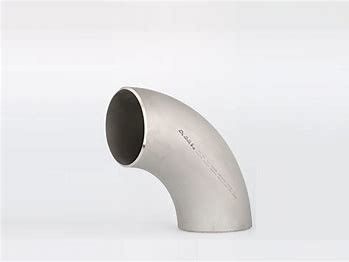

2 inci 904L / A403 WP304 LR / SR Seamless / weld Stainless Steel Elbow

  • 2 inch 904L / A403 WP304 LR / SR Seamless / weld Stainless Steel Elbow
  • 2 inch 904L / A403 WP304 LR / SR Seamless / weld Stainless Steel Elbow
Place of Origin China
Nama merek TOBO
Sertifikasi SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model Siku
Kuantitas min Order 1pc
Packaging Details 10-100 days depending on quantity
Delivery Time 10-100days
Payment Terms L/C, T/T, Western Union
Menyediakan kemampuan 3.0000pcs per bulan
Detail produk
Size 1-48 inch Kelas Bahan WP304
Type Seamless or weld Standard DIN,EN,ASTM,BS,JIS,GB,etc.
DN 15-1200
Menyoroti

2 inci siku stainless steel

,

904L Stainless Steel Elbow

,

siku baja tahan karat las
Tinggalkan pesan
Deskripsi Produk

2 inci 904L / A403 WP304 LR / SR Seamless / weld Stainless Steel Elbow

1.Stainless steel siku
2.sch5s-schxxs
3.ISO9001,ISO9000
4Pasar: Amerika,Afrika, Timur Tengah, Asia Tenggara

Jenis siku siku baja tahan karat,45/90/180 diselapkan / siku tanpa jahitan; siku kembali
Standar ASME/ANSI B16.9
Ukuran 1/2 ∼48 ∼ ((Tanpa jahitan); 16 ∼ 72 ∼ ((Selap)
Ketebalan dinding Sch5~Sch160XXS
Proses pembuatan Dorong, Pers, Forge, Cast, dll.
Bahan Baja karbon, baja tahan karat, baja paduan, baja tahan karat dupleks, baja paduan nikel
Baja karbon ASTM A234 WPB, WPC;
Baja tahan karat

304/SUS304/UNS S30400/1.4301

304L/UNS S30403/1.4306;

304H/UNS S30409/1.4948;

309S/UNS S30908/1.4833

309H/UNS S30909;

310S/UNS S31008/1.4845;

310H/UNS S31009;

316/UNS S31600/1.4401;

316Ti/UNS S31635/1.4571;

316H/UNS S31609/1.4436;

316L/UNS S31603/1.4404;

316LN/UNS S31653;

317/UNS S31700;

317L/UNS S31703/1.4438;

321/UNS S32100/1.4541;

321H/UNS S32109;

347/UNS S34700/1.

4550;

347H/UNS S34709/1.4912;

348/UNS S34800;
Baja paduan

ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91;

ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65;

ASTM A420 WPL3/WPL6/WPL9;
Baja dupleks

ASTM A182 F51/S31803/1.4462;

ASTM A182 F53/S2507/S32750/1.4401;

ASTM A182 F55/S32760/1.4501/Zeron 100;

2205/F60/S32205;

ASTM A182 F44/S31254/254SMO/1.4547;

17-4PH/S17400/1.4542/SUS630/AISI630;

F904L/NO8904/1.4539;

725LN/310MoLN/S31050/1.4466

253MA/S30815/1.4835;
Baja paduan nikel

Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN;

Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL;

paduan 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC;

Alloy K-500/Monel K-500/NO5500/2.475;

Alloy 600/Inconel 600/NO6600/NS333/2.4816;

Alloy 601/Inconel 601/NO6001/2.4851;

Alloy 625/Inconel 625/NO6625/NS336/2.4856;

Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668;

Alloy 800/Incoloy 800/NO8800/1.4876;

Alloy 800H/Incoloy 800H/NO8810/1.4958;

Alloy 800HT/Incoloy 800HT/NO8811/1.4959;

Alloy 825/Incoloy 825/NO8825/2.4858/NS142;

paduan 925/Incoloy 925/NO9925;

Hastelloy C/Alloy C/NO6003/2.4869/NS333;

Paduan C-276/Hastelloy C-276/N10276/2.4819;

Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610;

Paduan C-22/Hastelloy C-22/NO6022/2.4602;

Alloy C-2000/Hastelloy C-2000/NO6200/2.4675;

Alloy B/Hastelloy B/NS321/N10001;

Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617;

Alloy B-3/Hastelloy B-3/N10675/2.4600;

Alloy X/Hastelloy X/NO6002/2.4665;

Alloy G-30/Hastelloy G-30/NO6030/2.4603;

Alloy X-750/Inconel X-750/NO7750/GH145/2.4669;

Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660;

Paduan 31/NO8031/1.4562;

Paduan 901/NO9901/1.4898;

Inkolai 25-6Mo/NO8926/1.4529/Inkolai 926/Alloy 926;

Inconel 783/UNS R30783;

NAS 254NM/NO8367;

Monel 30C

Nimonic 80A/Alloy Nikel 80a/UNS N07080/NA20/2.4631/2.4952

Nimonic 263/NO7263

Nimonic 90/UNS NO7090;

Incoloy 907/GH907;

Nitronic 60/Alloy 218/UNS S21800
Paket Kasus kayu, palet, kantong nilon atau sesuai dengan kebutuhan pelanggan
MOQ 1pcs
Waktu pengiriman 10-100 hari tergantung pada jumlah
Syarat pembayaran T/T atau Western Union atau LC
Pengiriman FOB Tianjin/Shanghai, CFR, CIF, dll.
Aplikasi Perminyakan/Energi/Kimia/Konstruksi/Gas/Metallurgi/Pembangunan Kapal dll.
Pengamatan Bahan dan gambar lainnya tersedia.

Selamat datang untuk menghubungi kami.

Satuan: inci
Nominal
Pipa
Ukuran		 Di luar Dia.
(OD)		 Ketebalan dinding (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A Tees Center To Ends C.M Panjang tutup
E
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625 1.00 1.00
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438 1.13 1.00
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00 1.50 1.50
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25 1.88 1.50
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50 2.25 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00 2.50 1.50
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50 3.00 2.00
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00 3.38 2.50
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00 4.13 3.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00 4.88 3.50
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00 5.63 4.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00 7.00 5.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00 8.50 6.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00 10.00 7.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00 11.00 7.50
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00 12.00 8.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00 13.50 9.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00 15.00 10.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00 17.00 12.00

Satuan: inci
Nominal
Pipa
Ukuran		 Di luar Dia.
(OD)		 Ketebalan dinding (T) 90o L/R Elbow Center To End A 45o L/R Elbow Center To End B 90o S/R Elbow Center To End A
Sch.5S Sch.10S Sch.40S Sch.80S
1/2 0.840 0.065 0.083 0.109 0.147 1.50 0.625
3/4 1.050 0.065 0.083 0.113 0.154 1.12 0.438
1 1.315 0.065 0.109 0.133 0.179 1.50 0.875 1.00
1-1/4 1.660 0.065 0.109 0.140 0.191 1.88 1.00 1.25
1-1/2 1.900 0.065 0.109 0.145 0.200 2.25 1.12 1.50
2 2.375 0.065 0.109 0.154 0.218 3.00 1.38 2.00
2-1/2 2.875 0.083 0.120 0.203 0.276 3.75 1.75 2.50
3 3.500 0.083 0.120 0.216 0.300 4.50 2.00 3.00
4 4.500 0.083 0.120 0.237 0.337 6.00 2.50 4.00
5 5.563 0.109 0.134 0.258 0.375 7.50 3.12 5.00
6 6.625 0.109 0.134 0.280 0.432 9.00 3.75 6.00
8 8.625 0.109 0.148 0.322 0.500 12.00 5.00 8.00
10 10.750 0.134 0.165 0.375 0.500 15.00 6.25 10.00
12 12.750 0.156 0.180 0.375 0.500 18.00 7.50 12.00
14 14.000 0.156 0.250 0.375 0.500 21.00 8.75 14.00
16 16.000 0.165 0.250 0.375 0.500 24.00 10.00 16.00
18 18.000 0.165 0.250 0.375 0.500 27.00 11.25 18.00
20 20.000 0.188 0.250 0.375 0.500 30.00 12.50 20.00
24 24.000 0.218 0.250 0.375 0.500 36.00 13.50 24.00

2 inci 904L / A403 WP304 LR / SR Seamless / weld Stainless Steel Elbow 0
