GRUP TOBO
TOBO Perdagangan Internasional (Shanghia) Co., LtdTianda Oil Pipe Co., Ltd
Peralatan Pipa TOBO Co, Ltd Pipa TPCO & TISCO (Tianjin) Co, Ltd.
| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO |
| Sertifikasi: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model: | Ujung Rintisan |
| Kuantitas min Order: | 1pc |
| Harga: | USD Depending on quantity |
| Kemasan rincian: | KASUS KAYU LAPIS ATAU PALLET |
| Waktu pengiriman: | 10-100 hari tergantung pada kuantitas |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union |
| Menyediakan kemampuan: | 3.0000pcs per bulan |
| Bahan: | UNSS31803 | DN: | 15-1200 |
|---|---|---|---|
| Ukuran: | 1-48 inci | Jenis: | Mulus atau las |
| Standar: | DIN, EN, ASTM, BS, JIS, GB, dll. | ||
| Cahaya Tinggi: | WP316L Ujung STUB BALANG,ASTM A403 END STUB STEEL,KEMIKAL Besi tahan karat STUB ENDS |
||

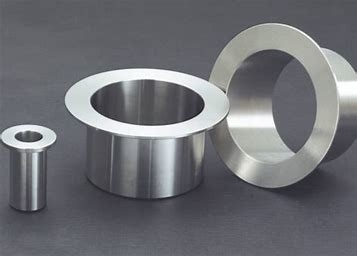

DonGLIU SCH40 ASME B16.9 BW ASTM A403 GR. WP316L STUB ENDES dari stainless steel untuk bahan kimia
Spesifikasi
1. Stainless steel Stub akhir
2.sch5s-schxxs
3.ISO9001,ISO9000
4Pasar: Amerika,Afrika, Timur Tengah, Asia Tenggara
| Jenis siku | Stainless steel Stub berakhir. |
| Standar | ASME/ANSI B16.9 MSS SP-43 |
| Ukuran | 1/2 ∼48 ∼ ((Tanpa jahitan); 16 ∼ 72 ∼ ((Selap) |
| Ketebalan dinding | Sch5~Sch160XXS |
| Proses pembuatan | Dorong, Pers, Forge, Cast, dll. |
| Bahan | Baja karbon, baja tahan karat, baja paduan, baja tahan karat dupleks, baja paduan nikel |
| Baja karbon | ASTM A234 WPB, WPC; |
| Baja tahan karat |
304/SUS304/UNS S30400/1.4301 304L/UNS S30403/1.4306; 304H/UNS S30409/1.4948; 309S/UNS S30908/1.4833 309H/UNS S30909; 310S/UNS S31008/1.4845; 310H/UNS S31009; 316/UNS S31600/1.4401; 316Ti/UNS S31635/1.4571; 316H/UNS S31609/1.4436; 316L/UNS S31603/1.4404; 316LN/UNS S31653; 317/UNS S31700; 317L/UNS S31703/1.4438; 321/UNS S32100/1.4541; 321H/UNS S32109; 347/UNS S34700/1.4550; 347H/UNS S34709/1.4912; 348/UNS S34800; |
| Baja paduan |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; ASTM A860 WPHY42/WPHY52/WPHY60/WPHY65; ASTM A420 WPL3/WPL6/WPL9; |
| Baja dupleks |
ASTM A182 F51/S31803/1.4462; ASTM A182 F53/S2507/S32750/1.4401; ASTM A182 F55/S32760/1.4501/Zeron 100; 2205/F60/S32205; ASTM A182 F44/S31254/254SMO/1.4547; 17-4PH/S17400/1.4542/SUS630/AISI630; F904L/NO8904/1.4539; 725LN/310MoLN/S31050/1.4466 253MA/S30815/1.4835; |
| Baja paduan nikel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; Alloy 201/Nickel 201/NO2201/2.4068/ASTM B366 WPNL; paduan 400/Monel 400/NO4400/NS111/2.4360/ASTM B366 WPNC; Alloy K-500/Monel K-500/NO5500/2.475; Alloy 600/Inconel 600/NO6600/NS333/2.4816; Alloy 601/Inconel 601/NO6001/2.4851; Alloy 625/Inconel 625/NO6625/NS336/2.4856; Alloy 718/Inconel 718/NO7718/GH169/GH4169/2.4668; Alloy 800/Incoloy 800/NO8800/1.4876; Alloy 800H/Incoloy 800H/NO8810/1.4958; Alloy 800HT/Incoloy 800HT/NO8811/1.4959; Alloy 825/Incoloy 825/NO8825/2.4858/NS142; paduan 925/Incoloy 925/NO9925; Hastelloy C/Alloy C/NO6003/2.4869/NS333; Paduan C-276/Hastelloy C-276/N10276/2.4819; Alloy C-4/Hastelloy C-4/NO6455/NS335/2.4610; Paduan C-22/Hastelloy C-22/NO6022/2.4602; Alloy C-2000/Hastelloy C-2000/NO6200/2.4675; Alloy B/Hastelloy B/NS321/N10001; Alloy B-2/Hastelloy B-2/N10665/NS322/2.4617; Alloy B-3/Hastelloy B-3/N10675/2.4600; Alloy X/Hastelloy X/NO6002/2.4665; Alloy G-30/Hastelloy G-30/NO6030/2.4603; Alloy X-750/Inconel X-750/NO7750/GH145/2.4669; Alloy 20/Carpenter 20Cb3/NO8020/NS312/2.4660; Paduan 31/NO8031/1.4562; Paduan 901/NO9901/1.4898; Inkolai 25-6Mo/NO8926/1.4529/Inkolai 926/Alloy 926; Inconel 783/UNS R30783; NAS 254NM/NO8367; Monel 30C Nimonic 80A/Alloy Nikel 80a/UNS N07080/NA20/2.4631/2.4952 Nimonic 263/NO7263 Nimonic 90/UNS NO7090; Incoloy 907/GH907; Nitronic 60/Alloy 218/UNS S21800 |
| Paket | Kasus kayu, palet, kantong nilon atau sesuai dengan kebutuhan pelanggan |
| MOQ | 1pcs |
| Waktu pengiriman | 10-100 hari tergantung pada jumlah |
| Syarat pembayaran | T/T atau Western Union atau LC |
| Pengiriman | FOB Tianjin/Shanghai, CFR, CIF, dll. |
| Aplikasi | Perminyakan/Energi/Kimia/Konstruksi/Gas/Metallurgi/Pembangunan Kapal dll. |
| Pengamatan | Bahan dan gambar lainnya tersedia. |
|
Selamat datang untuk menghubungi kami.
|
|
Nama produk: Butt Welding Stainless Steel Fitting Stub end
Jangkauan ukuran:
DN15-DN600 (1/2"-24") Tipe tanpa jahitan
DN15 - DN1200 (1/2" - 48") Tipe las
Ketebalan dinding: SCH5 sampai SCH160
Bahan:
Baja karbon: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 dll
Baja tahan karat: ASTM A403 WP304/304L, WP316/316/L, WP317L, WP321, WP347 & WPS31254
Baja paduan: ASTM A234 WP1/WP12/WP11/WP22/WP5/WP7/WP9/WP91
Baja duplex dan super duplex: ASTM A815 UNS S31803/S32205/S32750/S32760
DIN 1.4301,1.4401,1.4404,1.4541,1.4401,1.4571 dll
Standar Produksi:
ASME B16.9,ASME B16.11,ASME B16.28,MSS SP-43,JISB2311,JIS B2312,JIS B2313,DIN 2605,DIN 2606,DIN2615,DIN2616,BG12459-90,GB/T13401,HGJ514,SH3408,SH3409,HG/T21635,HG/T21631,
End Bevel: Menurut standar atau persyaratan pelanggan
Pengolahan permukaan: minyak hitam yang tahan karat yang dibenturkan
Pengujian non-destruktif: pengujian penetrasi, pengujian ultrasonik, pengujian radiografi, pemeriksaan pihak ketiga,
| Nama | Tekanan tinggi baja tahan karat pipa pendek / panjang Stub End,lap sendi stub akhir |
| Ukuran | 21.3mm-609.6mm (1/2'-24'),DN15-DN600 |
| WT | SCH5S-XXS |
| Standar | ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419, DIN EN10253, JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, BS1387, ASTM A403 |
| Bahan baku | Baja karbon, baja tahan karat, baja paduan |
| Baja karbon | 10# 20# Q235B ASTM A234 ASTM A105 ASTM A403 |
| Baja tahan karat | 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti 00Cr17Ni14Mo2 304 304L 316 316L |
| Baja paduan |
16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1 A335P22 St45.8 ASTM A860 WPHY X42 X52 X60 X70 |
| Baja aluminium | 1060,2024,2017,3003,5052,5083,6061,6083,6060,7075,8011 |
| Kemasan: | Kasus kayu, palet kayu, atau sesuai dengan kebutuhan pelanggan |
| Perlengkapan pipa utama |
siku, TIE/Cross, Reducer, Cap, Flange, Bend, Stubtube, Weldoloet/Threadolet/Olet, Nipple, Mengurangi Socket Insert,Union,Pipe Clamp,dan lain-lain |
| Pemeriksaan | Pemeriksaan di dalam pabrik atau pihak ketiga |
| Aplikasi | Industri minyak bumi, perusahaan pengolahan, industri pupuk, pembangkit listrik, pembuatan kapal, platform darat |
