| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO |
| Sertifikasi: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model: | A403 Wp304 L, Wp316l, Wp321h, Wp347 Wp904L |
| Kuantitas min Order: | 2PCS |
| Harga: | USD 1-30 Per PC |
| Kemasan rincian: | KASUS ply-WOODEN OR PALLET |
| Syarat-syarat pembayaran: | T/T, L/C, Western Union |
| Menyediakan kemampuan: | 96660000 PCS PER BULAN |
| Bahan:: | Baja Tahan Karat: ASTM A403 WP304 / 304L, WP316 / 316 / L, WP317L, WP321, WP347 & WPS31254 | Standar pembuatan:: | ASME B16.9, ASME B16.11, ASME B16.28, MSS SP-43, JISB2311, JIS B2312, JIS B2313, DIN |
|---|---|---|---|
| Aplikasi: | Petroleum / Daya / Kimia / Konstruksi / Gas / Metalurgi / Kapal dll | menandai: | Logo TOBO, Nomor Panas, Kelas Baja, Standar, Ukuran |
| Menyoroti: | tee pipa baja,butt weld tee |
||

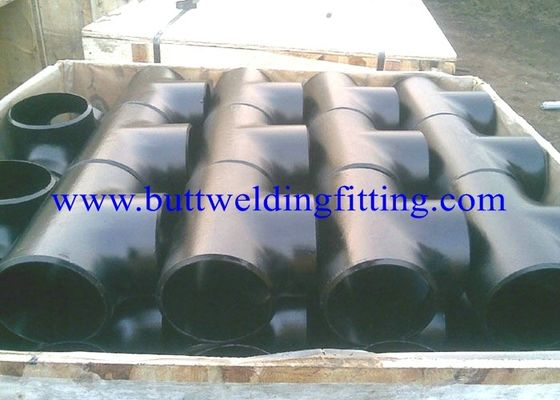

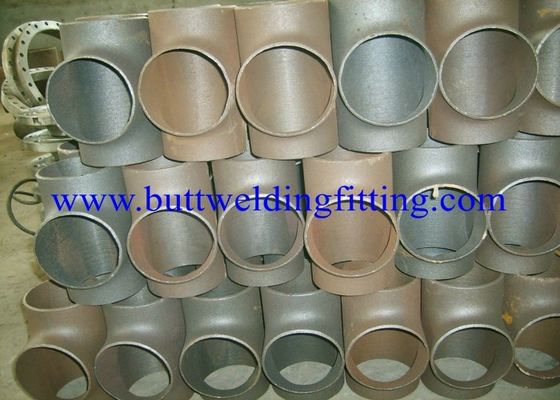

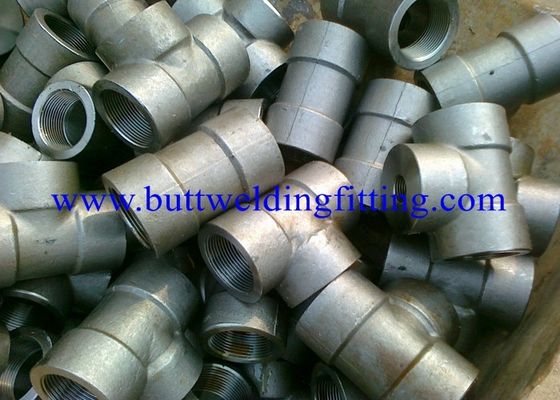

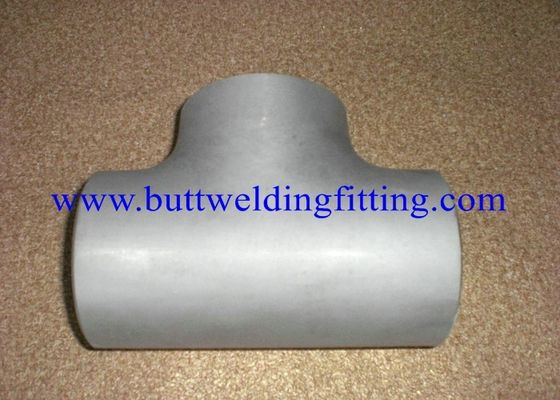

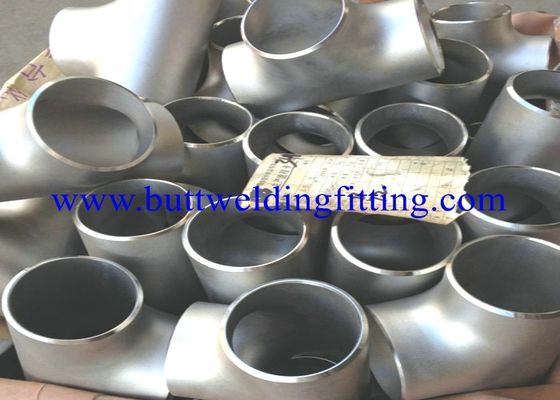

Tee Stainless Steel A403 Wp304 L, Wp316l, Wp321h, Wp347 Wp904L Tee Lurus Asme B16.9
Nama Produk: Tee Stainless Steel
Rentang ukuran:
DN15-DN 600 (1/2 "- 24 ") Jenis Mulus
DN15 - DN1200 ( 1/2 "- 48 " ) Jenis yang dilas
Ketebalan Dinding: SCH5 ke SCH160
Bahan:
Baja karbon: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 dll
Stainless Steel: ASTM A403 WP304 / 304L, WP316 / 316 / L, WP317L, WP321, WP347 & WPS31254
Baja paduan: ASTM A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP7 / WP9 / WP91
Baja dupleks dan super dupleks: ASTM A815 UNS S31803 / S32205 / S32750 / S32760 / S32550
Standar pembuatan:
ASME B16.9, ASME B16.11, ASME B16.28, MSS SP-43, JISB2311, JIS B2312, JIS B2313, DIN 2605, DIN 2606, DIN2615, DIN2616, BG12459-90, GB / T13401, HGJ514, SH3408, SH3409, HG / T21635, HG / T21631,
End Bevel: Menurut standar atau persyaratan pelanggan
Pengobatan permukaan: Minyak hitam yang ditembakkan dengan peledakan, anil & pengawetan
Pengujian non-destruktif: uji penetrasi, uji ultrasonik, uji radiografi, setiap inspeksi pihak ketiga
Spesifikasi
Ukuran Pipa Norminal | Diameter Luar di Bevel | Center to End | ||||
DN | D1 | D2 | C | M. | ||
Seri A | Seri B | Seri A | Seri B | |||
20 × 20 × 15 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
25 × 25 × 20 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
25 × 25 × 15 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
32 × 32 × 25 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
32 × 32 × 20 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
32 × 32 × 15 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
40 × 40 × 32 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
40 × 40 × 25 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
40 × 40 × 20 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
40 × 40 × 15 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
50 × 50 × 40 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
50 × 50 × 32 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
50 × 50 × 25 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
50 × 50 × 20 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
65 × 65 × 50 | 76.1 (73) | 76 | 60.3 | 57 | 76 | 70 |
65 × 65 × 40 | 76.1 (73) | 76 | 48.3 | 45 | 76 | 67 |
65 × 65 × 32 | 76.1 (73) | 76 | 42.4 | 38 | 76 | 64 |
65 × 65 × 25 | 76.1 (73) | 76 | 33.7 | 32 | 76 | 57 |
80 × 80 × 65 | 88.9 | 89 | 76.1 (73) | 76 | 86 | 83 |
80 × 80 × 50 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
80 × 80 × 40 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
80 × 80 × 32 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
90 × 90 × 80 | 101.6 | - | 88.9 | - | 95 | 92 |
90 × 90 × 65 | 101.6 | - | 76.1 (73) | - | 95 | 89 |
90 × 90 × 50 | 101.6 | - | 60.3 | - | 95 | 83 |
90 × 90 × 40 | 101.6 | - | 48.3 | - | 95 | 79 |
100 × 100 × 90 | 114.3 | - | 101.6 | - | 105 | 102 |
100 × 100 × 80 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
100 × 100 × 65 | 114.3 | 108 | 76.1 (73) | 76 | 105 | 95 |
100 × 100 × 50 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
100 × 100 × 40 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
125 × 125 × 100 | 139.7 | 133 | 114.3 | 108 | 124 | 117 |
125 × 125 × 90 | 139.7 | - | 101.6 | - | 124 | 114 |
125 × 125 × 80 | 139.7 | 133 | 88.9 | 89 | 124 | 111 |
125 × 125 × 65 | 139.7 | 133 | 76.1 (73) | 76 | 124 | 108 |
125 × 125 × 50 | 139.7 | 133 | 60.3 | 57 | 124 | 105 |
150 × 150 × 125 | 168.3 | 159 | 139.7 | 133 | 143 | 137 |
150 × 150 × 100 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
150 × 150 × 90 | 168.3 | - | 101.6 | - | 143 | 127 |
150 × 150 × 80 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
150 × 150 × 65 | 168.3 | 159 | 76.1 (73) | 76 | 143 | 121 |
200 × 200 × 150 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
200 × 200 × 125 | 219.1 | 219 | 139.7 | 133 | 178 | 162 |
200 × 200 × 100 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
200 × 200 × 90 | 219.1 | - | 101.6 | - | 178 | 152 |
250 × 250 × 200 | 273 | 273 | 219.1 | 219 | 216 | 203 |
250 × 250 × 150 | 273 | 273 | 168.3 | 159 | 216 | 194 |
250 × 250 × 125 | 273 | 273 | 139.1 | 133 | 216 | 191 |
