| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO |
| Sertifikasi: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model: | ASTM A403 WP304L / 316L 316H 316Ti |
| Kuantitas min Order: | 2PCS |
| Harga: | USD0.3-100 PER PC |
| Kemasan rincian: | KASUS ply-WOODEN OR PALLET |
| Waktu pengiriman: | 15days |
| Syarat-syarat pembayaran: | T/T, L/C, Western Union |
| Menyediakan kemampuan: | 9630000 PCS PER BULAN |
| Ukuran: | 1/2 "~ 24" DN15 ~ DN600 1/2 "~ 96" DN15 ~ DN2400 | Bahan kelas: | ASTM A403 WP304L / 316L 316H 316Ti |
|---|---|---|---|
| Jenis produk: | Con / Ecc Reducer | Standar: | DIN, EN, ASTM, BS, JIS, GB, dll |
| Menyoroti: | Fitting Peredam Pipa,Reducer Pipa Konsentris |
||

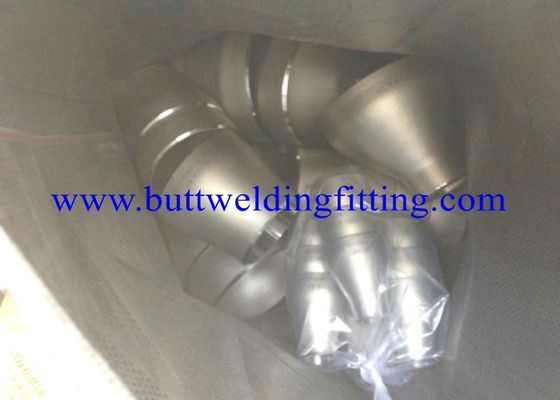

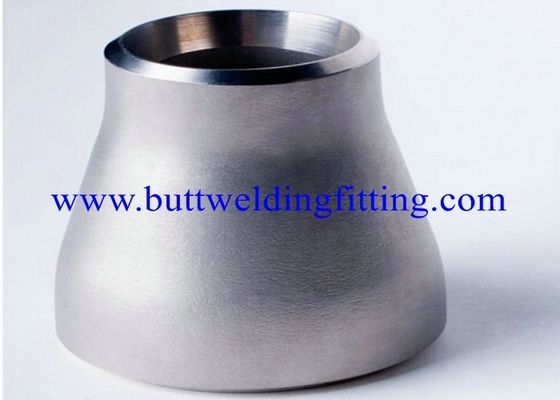

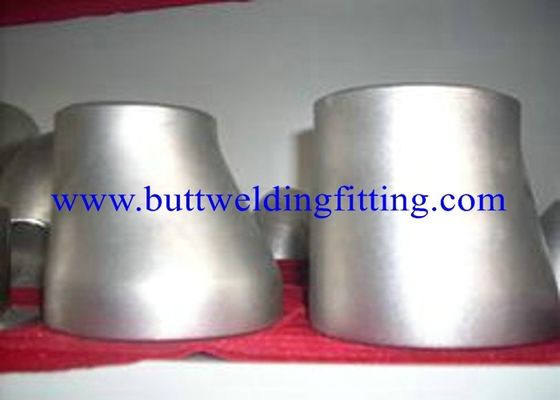

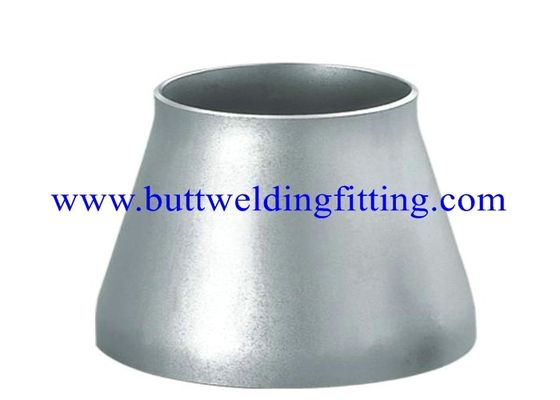

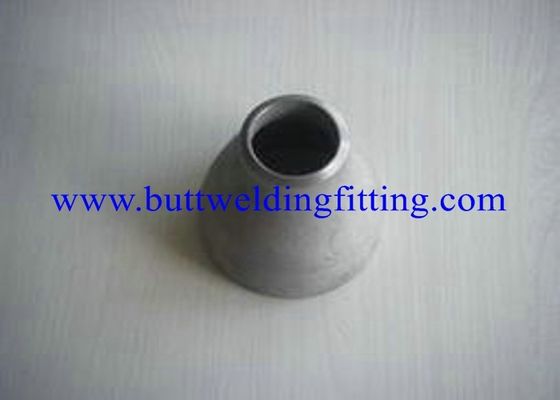

ASTM A403 WP304L / 316L 316H 316Ti Peredam Stainless Steel Con / Ecc Reducer 12 "X 10" SCH10S SCH40S
Kami menyediakan alat kelengkapan butt weld untuk klien kami yang terbuat dari stainless steel berkualitas tinggi oleh pabrikan asli kami. Ditawarkan dalam bentuk yang mulus dan dilas, fitting ini dibuat secara presisi dan ditawarkan kepada klien kami dalam spesifikasi berikut:
Bentuk:
1/8 "NB SAMPAI 48" NB. (Seamless & Welded)
Ketebalan
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS tersedia dengan NACE MR 01-75
Mengetik:
· Siku dalam 45 deg, 90 deg, 180 deg, R = 1D, 1.5D, 3D, 5D, 6D, 8D, 10D & 20D.
· Peredam eksentrik & konsentris.
· Tutup & umpan silang.
· Tee yang sama & tidak sama.
· Panjang rintisan pendek & pendek.
Standar:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Bahan:
Stainless Steel: ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321/310/347 / 904L / dll.
Baja Karbon: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 dll.
Baja paduan: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 / dll.
Bahan lain: Monel, Nikel, Inconel, Hastalloy, Tembaga, Kuningan, Perunggu, Titanium, Tantalum, Bismuth, Aluminium, Baja Kecepatan Tinggi, Seng, Timbal, dll.
Deskripsi:
Spesifikasi
Cocentric Reduer Eccentric Reduer
Diameter Nominal | Diameter luar | Ujung ke ujung | ||
D1 * D2 | ||||
DN | NPS | Seri A | Seri B | H |
20 × 15 | 3/4 × 1/2 | 26,9 × 21,3 | 25 × 18 | 38 |
20 × 10 | 3/4 × 3/8 | 26,9 × 17,3 | 25 × 14 | 38 |
25 × 20 | 1 × 3/4 | 33,7 × 26,9 | 32 × 25 | 51 |
25 × 15 | 1 × 1/2 | 33,7 × 21,3 | 32 × 18 | 51 |
32 × 25 | 1.1 / 4 × 1 | 42,4 × 33,7 | 38 × 32 | 51 |
32 × 20 | 1.1 / 4 × 3/4 | 42,4 × 26,9 | 38 × 25 | 51 |
32 × 15 | 1.1 / 4 × 1/2 | 42,4 × 21,3 | 38 × 18 | 51 |
40 × 32 | 1.1 / 2 × 1.1 / 4 | 48,3 × 42,4 | 45 × 38 | 64 |
40 × 25 | 1.1 / 2 × 1 | 48,3 × 33,7 | 45 × 32 | 64 |
40 × 20 | 1.1 / 2 × 3/4 | 48,3 × 26,9 | 45 × 25 | 64 |
40 × 15 | 1.1 / 2 × 1/2 | 48,3 × 21,3 | 45 × 18 | 64 |
50 × 40 | 2 × 1.1 / 2 | 60,3 × 48,3 | 57 × 45 | 76 |
50 × 32 | 2 × 1.1 / 4 | 60,3 × 42,4 | 57 × 38 | 76 |
50 × 25 | 2 × 1 | 60,3 × 33,7 | 57 × 32 | 76 |
50 × 20 | 2 × 3/4 | 60,3 × 26,9 | 57 × 25 | 76 |
65 × 50 | 2.1 / 2 × 2 | 73.0 × 60.3 | 76 × 57 | 89 |
65 × 40 | 2.1 / 2 × 1.1 / 2 | 73.0 × 48.3 | 76 × 45 | 89 |
65 × 32 | 2.1 / 2 × 1.1 / 4 | 73.0 × 42.4 | 76 × 38 | 89 |
65 × 25 | 2.1 / 2 × 1 | 73.0 × 33.7 | 76 × 32 | 89 |
80 × 65 | 3 × 2.1 / 2 | 88.9 × 73.0 | 89 × 76 | 89 |
80 × 50 | 3 × 2 | 88.9 × 60.3 | 89 × 57 | 89 |
80 × 40 | 3 × 1.1 / 2 | 88.9 × 48.3 | 89 × 45 | 89 |
80 × 32 | 3 × 1.1 / 4 | 88,9 × 42,4 | 89 × 38 | 89 |
90 × 80 | 3.1 / 2 × 3 | 101.6 × 88.9 | - | 102 |
90 × 65 | 3.1 / 2 × 2.1 / 2 | 101.6 × 73.0 | - | 102 |
90 × 50 | 3.1 / 2 × 2 | 101.6 × 60.3 | - | 102 |
90 × 40 | 3.1 / 2 × 1.1 / 2 | 101.6 × 48.3 | - | 102 |
90 × 32 | 3.1 / 2 × 1.1 / 4 | 101.6 × 42.4 | - | 102 |
100 × 90 | 4 × 3.1 / 2 | 114,3 × 101,6 | - | 102 |
100 × 80 | 4 × 3 | 114,3 × 88,9 | 108 × 89 | 102 |
100 × 65 | 4 × 2.1 / 2 | 114,3 × 73.0 | 108 × 76 | 102 |
100 × 50 | 4 × 2 | 114,3 × 60,3 | 108 × 57 | 102 |
100 × 40 | 4 × 1.1 / 2 | 114,3 × 48,3 | 108 × 45 | 102 |
125 × 100 | 5 × 4 | 141.3 × 114.3 | 133 × 108 | 127 |
125 × 90 | 5 × 3.1 / 2 | 141.3 × 101.6 | - | 127 |
125 × 80 | 5 × 3 | 141.3 × 88.9 | 133 × 89 | 127 |
125 × 65 | 5 × 2.1 / 2 | 141.3 × 73.0 | 133 × 76 | 127 |
125 × 50 | 5 × 2 | 141.3 × 60.3 | 133 × 57 | 127 |
150 × 125 | 6 × 5 | 168.3 × 141.3 | 159 × 133 | 140 |
150 × 100 | 6 × 5 | 168,3 × 114,3 | 159 × 108 | 140 |
150 × 90 | 6 × 3.1 / 2 | 168.3 × 101.6 | - | 140 |
150 × 80 | 6 × 3 | 168.3 × 88.9 | 159 × 89 | 140 |
150 × 65 | 6 × 2.1 / 2 | 168.3 × 73.0 | 159 × 76 | 140 |
200 × 150 | 8 × 6 | 219.1 × 168.3 | 219 × 159 | 152 |
200 × 125 | 8 × 5 | 219.1 × 141.3 | 219 × 133 | 152 |
200 × 100 | 8 × 4 | 219.1 × 114.3 | 219 × 108 | 152 |
200 × 90 | 8 × 3.1 / 2 | 219.1 × 101.6 | - | 152 |
250 × 200 | 10 × 8 | 273.0 × 219.1 | 273 × 219 | 178 |
250 × 150 | 10 × 6 | 273.0 × 168.3 | 273 × 159 | 178 |
250 × 125 | 10 × 5 | 273.0 × 141.3 | 273 × 133 | 178 |
250 × 100 | 10 × 4 | 273.0 × 114.3 | 273 × 108 | 178 |
300 × 250 | 12 × 10 | 323.9 × 273.1 | 325 × 273 | 203 |
300 × 200 | 12 × 8 | 323.9 × 219.1 | 325 × 219 | 203 |
300 × 150 | 12 × 6 | 323.9 × 168.3 | 325 × 159 | 203 |
300 × 125 | 12 × 5 | 323.9 × 141.3 | 325 × 133 | 203 |
350 × 300 | 14 × 12 | 355.6 × 323.9 | 377 × 325 | 330 |
350 × 250 | 14 × 10 | 355.6 × 273.0 | 377 × 273 | 330 |
350 × 200 | 14 × 8 | 355.6 × 219.1 | 377 × 219 | 330 |
350 × 150 | 14 × 6 | 355.6 × 168.3 | 377 × 159 | 330 |
400 × 350 | 16 × 14 | 406.4 × 355.6 | 426 × 377 | 356 |
400 × 300 | 16 × 12 | 406.4 × 323.9 | 426 × 325 | 356 |
400 × 250 | 16 × 10 | 406.4 × 273.0 | 426 × 273 | 356 |
400 × 200 | 16 × 8 | 406.4 × 219.1 | 426 × 219 | 356 |
450 × 400 | 18 × 16 | 457 × 406,4 | 478 × 426 | 381 |
450 × 350 | 18 × 14 | 457 × 355.6 | 478 × 377 | 381 |
450 × 300 | 18 × 12 | 457 × 323.9 | 478 × 325 | 381 |
450 × 250 | 18 × 10 | 457 × 273.0 | 478 × 273 | 381 |
500 × 450 | 20 × 18 | 508 × 457 | 529 × 478 | 508 |
500 × 400 | 20 × 16 | 508 × 406,4 | 529 × 426 | 508 |
500 × 350 | 20 × 14 | 508 × 355.6 | 529 × 377 | 508 |
500 × 300 | 20 × 12 | 508 × 323.9 | 529 × 325 | 508 |
550 × 500 | 22 × 20 | 559 × 508 | - | 508 |
550 × 450 | 22 × 18 | 559 × 457 | - | 508 |
550 × 400 | 22 × 16 | 559 × 406,4 | - | 508 |
550 × 350 | 22 × 14 | 559 × 355.6 | - | 508 |
600 × 550 | 24 × 22 | 610 × 559 | - | 508 |
600 × 500 | 24 × 20 | 610 × 508 | 630 × 529 | 508 |
600 × 450 | 24 × 18 | 610 × 457 | 630 × 478 | 508 |
600 × 400 | 24 × 22 | 610 × 406.4 | 630 × 426 | 508 |
650 × 600 | 26 × 24 | 660 × 610 | - | 610 |
650 × 550 | 26 × 22 | 660 × 559 | - | 610 |
650 × 500 | 26 × 20 | 660 × 508 | - | 610 |
650 × 450 | 26 × 18 | 660 × 457 | - | 610 |
700 × 650 | 28 × 26 | 711 × 660 | - | 610 |
700 × 600 | 28 × 24 | 711 × 610 | 720 × 630 | 610 |
700 × 550 | 28 × 22 | 711 × 559 | - | 610 |
700 × 500 | 28 × 20 | 711 × 508 | 720 × 530 | 610 |
750 × 700 | 30 × 28 | 762 × 711 | - | 610 |
750 × 650 | 30 × 26 | 762 × 660 | - | 610 |
750 × 600 | 30 × 24 | 762 × 610 | - | 610 |
750 × 550 | 30 × 22 | 762 × 559 | - | 610 |
800 × 750 | 32 × 30 | 813 × 762 | - | 610 |
800 × 700 | 32 × 28 | 813 × 711 | 820 × 720 | 610 |
800 × 650 | 32 × 26 | 813 × 660 | - | 610 |
800 × 600 | 32 × 24 | 813 × 610 | 820 × 630 | 610 |
850 × 800 | 34 × 32 | 864 × 813 | - | 610 |
850 × 750 | 34 × 30 | 864 × 762 | - | 610 |
850 × 700 | 34 × 28 | 864 × 711 | - | 610 |
850 × 650 | 34 × 26 | 864 × 660 | - | 610 |
900 × 850 | 36 × 34 | 914 × 864 | - | 610 |
900 × 800 | 36 × 32 | 914 × 813 | 920 × 820 | 610 |
900 × 750 | 36 × 30 | 914 × 762 | - | 610 |
900 × 700 | 36 × 28 | 914 × 711 | 920 × 720 | 610 |
950 × 900 | 38 × 36 | 965 × 914 | - | 610 |
950 × 850 | 38 × 34 | 965 × 864 | - | 610 |
950 × 800 | 38 × 32 | 965 × 813 | - | 610 |
950 × 750 | 38 × 30 | 965 × 762 | - | 610 |
1000 × 950 | 40 × 38 | 1016 × 965 | - | 610 |
1000 × 900 | 40 × 36 | 1016 × 914 | 1020 × 920 | 610 |
1000 × 850 | 40 × 34 | 1016 × 864 | - | 610 |
1000 × 800 | 40 × 32 | 1016 × 813 | 1020 × 820 | 610 |
1050 × 1000 | 42 × 40 | 1067 × 1016 | - | 610 |
1050 × 950 | 42 × 38 | 1067 × 965 | - | 610 |
1050 × 900 | 42 × 36 | 1067 × 914 | - | 610 |
1050 × 850 | 42 × 34 | 1067 × 864 | - | 610 |
1100 × 1050 | 44 × 42 | 1118 × 1067 | - | 610 |
1100 × 1000 | 44 × 40 | 1118 × 1016 | 1120 × 1020 | 610 |
1100 × 950 | 44 × 38 | 1118 × 965 | - | 610 |
1100 × 900 | 44 × 36 | 1118 × 914 | 1220 × 920 | 610 |
1150 × 1100 | 46 × 44 | 1168 × 1118 | - | 711 |
1150 × 1050 | 46 × 42 | 1168 × 1067 | - | 711 |
1150 × 1000 | 46 × 40 | 1168 × 1016 | - | 711 |
1150 × 950 | 46 × 38 | 1168 × 965 | - | 711 |
1200 × 1150 | 48 × 46 | 1220 × 1168 | - | 711 |
1200 × 1100 | 48 × 44 | 1220 × 1118 | 1220 × 1120 | 711 |
1200 × 1050 | 48 × 42 | 1220 × 1067 | - | 711 |
1200 × 1000 | 48 × 40 | 1220 × 1016 | 1220 × 1020 | 711 |
catatan: | ||||
