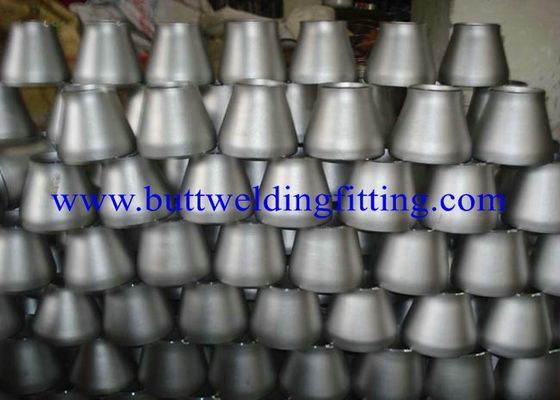

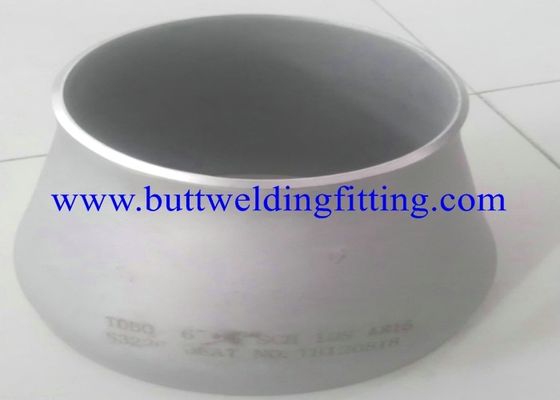

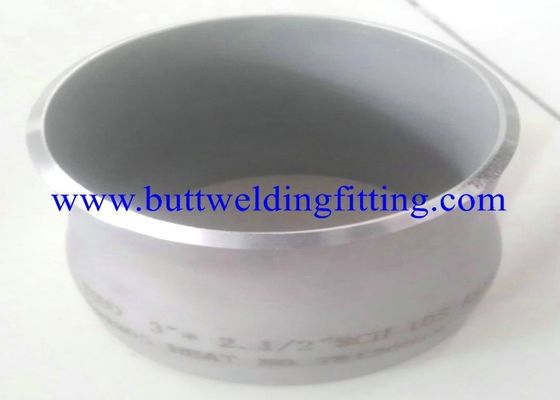

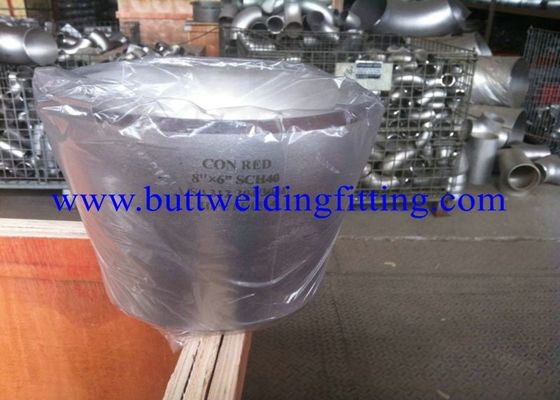

Con / Ecc Stainless Steel Reducer Eccentric Cocentric 10 hingga 6 Reducer

ASTM A403 347 / 347H / UNS 31254 / 254SMo Peredam Stainless Steel Eksentrik Cocentric Reduer. 10 "x6" Con / Ecc

Bentuk:
1/8 "NB SAMPAI 48" NB. (Seamless & Welded)
Ketebalan
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS tersedia dengan NACE MR 01-75
Mengetik:
· Siku dalam 45 deg, 90 deg, 180 deg, R = 1D, 1.5D, 3D, 5D, 6D, 8D, 10D & 20D.
· Peredam eksentrik & konsentris.
· Tutup & umpan silang.
· Tee yang sama & tidak sama.
· Panjang rintisan pendek & pendek.
Standar:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Bahan:
Stainless Steel: ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321/310/347 / 904L / dll.
Baja Karbon: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 dll.
Baja paduan: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 / dll.
Bahan lain: Monel, Nikel, Inconel, Hastalloy, Tembaga, Kuningan, Perunggu, Titanium, Tantalum, Bismuth, Aluminium, Baja Kecepatan Tinggi, Seng, Timbal, dll.

Diameter Nominal Diameter luar Ujung ke ujung D1 * D2 DN NPS Seri A Seri B H 20 × 15 3/4 × 1/2 26,9 × 21,3 25 × 18 38 20 × 10 3/4 × 3/8 26,9 × 17,3 25 × 14 38 25 × 20 1 × 3/4 33,7 × 26,9 32 × 25 51 25 × 15 1 × 1/2 33,7 × 21,3 32 × 18 51 32 × 25 1.1 / 4 × 1 42,4 × 33,7 38 × 32 51 32 × 20 1.1 / 4 × 3/4 42,4 × 26,9 38 × 25 51 32 × 15 1.1 / 4 × 1/2 42,4 × 21,3 38 × 18 51 40 × 32 1.1 / 2 × 1.1 / 4 48,3 × 42,4 45 × 38 64 40 × 25 1.1 / 2 × 1 48,3 × 33,7 45 × 32 64 40 × 20 1.1 / 2 × 3/4 48,3 × 26,9 45 × 25 64 40 × 15 1.1 / 2 × 1/2 48,3 × 21,3 45 × 18 64 50 × 40 2 × 1.1 / 2 60,3 × 48,3 57 × 45 76 50 × 32 2 × 1.1 / 4 60,3 × 42,4 57 × 38 76 50 × 25 2 × 1 60,3 × 33,7 57 × 32 76 50 × 20 2 × 3/4 60,3 × 26,9 57 × 25 76 65 × 50 2.1 / 2 × 2 73.0 × 60.3 76 × 57 89 65 × 40 2.1 / 2 × 1.1 / 2 73.0 × 48.3 76 × 45 89 65 × 32 2.1 / 2 × 1.1 / 4 73.0 × 42.4 76 × 38 89 65 × 25 2.1 / 2 × 1 73.0 × 33.7 76 × 32 89 80 × 65 3 × 2.1 / 2 88.9 × 73.0 89 × 76 89 80 × 50 3 × 2 88.9 × 60.3 89 × 57 89 80 × 40 3 × 1.1 / 2 88.9 × 48.3 89 × 45 89 80 × 32 3 × 1.1 / 4 88,9 × 42,4 89 × 38 89 90 × 80 3.1 / 2 × 3 101.6 × 88.9 - 102 90 × 65 3.1 / 2 × 2.1 / 2 101.6 × 73.0 - 102 90 × 50 3.1 / 2 × 2 101.6 × 60.3 - 102 90 × 40 3.1 / 2 × 1.1 / 2 101.6 × 48.3 - 102 90 × 32 3.1 / 2 × 1.1 / 4 101.6 × 42.4 - 102 100 × 90 4 × 3.1 / 2 114,3 × 101,6 - 102 100 × 80 4 × 3 114,3 × 88,9 108 × 89 102 100 × 65 4 × 2.1 / 2 114,3 × 73.0 108 × 76 102 100 × 50 4 × 2 114,3 × 60,3 108 × 57 102 100 × 40 4 × 1.1 / 2 114,3 × 48,3 108 × 45 102 125 × 100 5 × 4 141.3 × 114.3 133 × 108 127 125 × 90 5 × 3.1 / 2 141.3 × 101.6 - 127 125 × 80 5 × 3 141.3 × 88.9 133 × 89 127 125 × 65 5 × 2.1 / 2 141.3 × 73.0 133 × 76 127 125 × 50 5 × 2 141.3 × 60.3 133 × 57 127 150 × 125 6 × 5 168.3 × 141.3 159 × 133 140 150 × 100 6 × 5 168,3 × 114,3 159 × 108 140 150 × 90 6 × 3.1 / 2 168.3 × 101.6 - 140 150 × 80 6 × 3 168.3 × 88.9 159 × 89 140 150 × 65 6 × 2.1 / 2 168.3 × 73.0 159 × 76 140 200 × 150 8 × 6 219.1 × 168.3 219 × 159 152 200 × 125 8 × 5 219.1 × 141.3 219 × 133 152 200 × 100 8 × 4 219.1 × 114.3 219 × 108 152 200 × 90 8 × 3.1 / 2 219.1 × 101.6 - 152 250 × 200 10 × 8 273.0 × 219.1 273 × 219 178 250 × 150 10 × 6 273.0 × 168.3 273 × 159 178 250 × 125 10 × 5 273.0 × 141.3 273 × 133 178 250 × 100 10 × 4 273.0 × 114.3 273 × 108 178 300 × 250 12 × 10 323.9 × 273.1 325 × 273 203 300 × 200 12 × 8 323.9 × 219.1 325 × 219 203 300 × 150 12 × 6 323.9 × 168.3 325 × 159 203 300 × 125 12 × 5 323.9 × 141.3 325 × 133 203 350 × 300 14 × 12 355.6 × 323.9 377 × 325 330 350 × 250 14 × 10 355.6 × 273.0 377 × 273 330 350 × 200 14 × 8 355.6 × 219.1 377 × 219 330 350 × 150 14 × 6 355.6 × 168.3 377 × 159 330 400 × 350 16 × 14 406.4 × 355.6 426 × 377 356 400 × 300 16 × 12 406.4 × 323.9 426 × 325 356 400 × 250 16 × 10 406.4 × 273.0 426 × 273 356 400 × 200 16 × 8 406.4 × 219.1 426 × 219 356 450 × 400 18 × 16 457 × 406,4 478 × 426 381 450 × 350 18 × 14 457 × 355.6 478 × 377 381 450 × 300 18 × 12 457 × 323.9 478 × 325 381 450 × 250 18 × 10 457 × 273.0 478 × 273 381 500 × 450 20 × 18 508 × 457 529 × 478 508 500 × 400 20 × 16 508 × 406,4 529 × 426 508 500 × 350 20 × 14 508 × 355.6 529 × 377 508 500 × 300 20 × 12 508 × 323.9 529 × 325 508 550 × 500 22 × 20 559 × 508 - 508 550 × 450 22 × 18 559 × 457 - 508 550 × 400 22 × 16 559 × 406,4 - 508 550 × 350 22 × 14 559 × 355.6 - 508 600 × 550 24 × 22 610 × 559 - 508 600 × 500 24 × 20 610 × 508 630 × 529 508 600 × 450 24 × 18 610 × 457 630 × 478 508 600 × 400 24 × 22 610 × 406.4 630 × 426 508 650 × 600 26 × 24 660 × 610 - 610 650 × 550 26 × 22 660 × 559 - 610 650 × 500 26 × 20 660 × 508 - 610 650 × 450 26 × 18 660 × 457 - 610 700 × 650 28 × 26 711 × 660 - 610 700 × 600 28 × 24 711 × 610 720 × 630 610 700 × 550 28 × 22 711 × 559 - 610 700 × 500 28 × 20 711 × 508 720 × 530 610 750 × 700 30 × 28 762 × 711 - 610 750 × 650 30 × 26 762 × 660 - 610 750 × 600 30 × 24 762 × 610 - 610 750 × 550 30 × 22 762 × 559 - 610 800 × 750 32 × 30 813 × 762 - 610 800 × 700 32 × 28 813 × 711 820 × 720 610 800 × 650 32 × 26 813 × 660 - 610 800 × 600 32 × 24 813 × 610 820 × 630 610 850 × 800 34 × 32 864 × 813 - 610 850 × 750 34 × 30 864 × 762 - 610 850 × 700 34 × 28 864 × 711 - 610 850 × 650 34 × 26 864 × 660 - 610 900 × 850 36 × 34 914 × 864 - 610 900 × 800 36 × 32 914 × 813 920 × 820 610 900 × 750 36 × 30 914 × 762 - 610 900 × 700 36 × 28 914 × 711 920 × 720 610 950 × 900 38 × 36 965 × 914 - 610 950 × 850 38 × 34 965 × 864 - 610 950 × 800 38 × 32 965 × 813 - 610 950 × 750 38 × 30 965 × 762 - 610 1000 × 950 40 × 38 1016 × 965 - 610 1000 × 900 40 × 36 1016 × 914 1020 × 920 610 1000 × 850 40 × 34 1016 × 864 - 610 1000 × 800 40 × 32 1016 × 813 1020 × 820 610 1050 × 1000 42 × 40 1067 × 1016 - 610 1050 × 950 42 × 38 1067 × 965 - 610 1050 × 900 42 × 36 1067 × 914 - 610 1050 × 850 42 × 34 1067 × 864 - 610 1100 × 1050 44 × 42 1118 × 1067 - 610 1100 × 1000 44 × 40 1118 × 1016 1120 × 1020 610 1100 × 950 44 × 38 1118 × 965 - 610 1100 × 900 44 × 36 1118 × 914 1220 × 920 610 1150 × 1100 46 × 44 1168 × 1118 - 711 1150 × 1050 46 × 42 1168 × 1067 - 711 1150 × 1000 46 × 40 1168 × 1016 - 711 1150 × 950 46 × 38 1168 × 965 - 711 1200 × 1150 48 × 46 1220 × 1168 - 711 1200 × 1100 48 × 44 1220 × 1118 1220 × 1120 711 1200 × 1050 48 × 42 1220 × 1067 - 711 1200 × 1000 48 × 40 1220 × 1016 1220 × 1020 711
