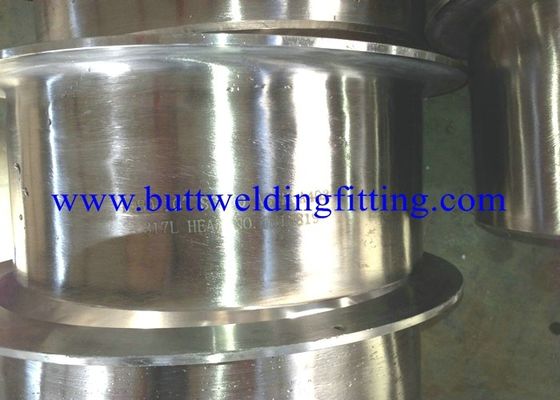

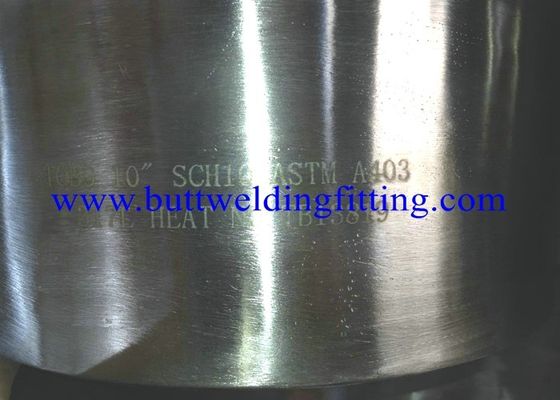

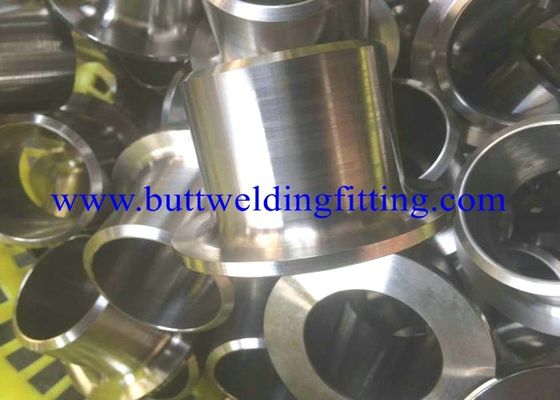

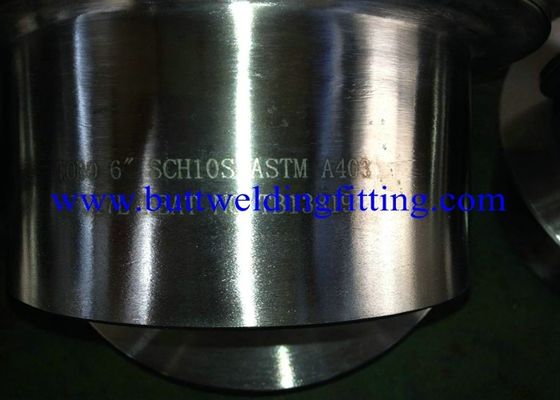

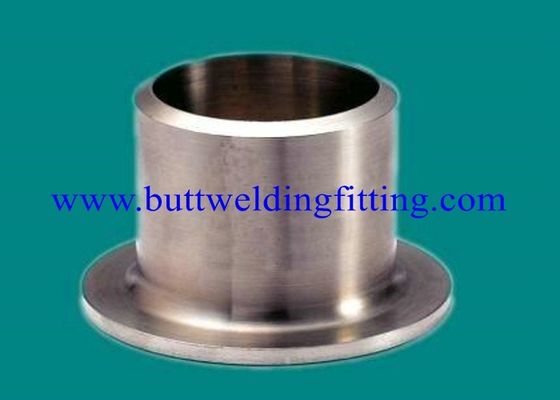

ASTM A403 WP317L / 310H / 321H Stub End Stainless Steel Bersama SCH40S 10 inch

ASTM A403 WP317L / 310H / 321H Stainless Steel Stub End Lap Joint 10 "SCH40S


Nama Produk: Butt Welding Stainless Steel Fitting Stub end
Rentang ukuran:
DN15-DN600 (1/2 "-24") Jenis Mulus
DN15 - DN1200 (1/2 "- 48") Jenis yang dilas
Ketebalan Dinding: SCH5 ke SCH160
Bahan:
Baja karbon: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 dll
Baja Tahan Karat: ASTM A403 WP304 / 304L, WP316 / 316 / L, WP317L, WP321, WP347 & WPS31254
Baja paduan: ASTM A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP7 / WP9 / WP91
Baja dupleks dan super dupleks: ASTM A815 UNS S31803 / S32205 / S32750 / S32760
DIN 1.4301.1.4401.1.4404.1.4541.1.4401.1.4571 dll
Standar pembuatan:
ASME B16.9, ASME B16.11, ASME B16.28, MSS SP-43, JISB2311, JIS B2312, JIS B2313, DIN 2605, DIN 2606, DIN2615, DIN2616, BG12459-90, GB / T13401, HGJ514, SH3408, SH3409, HG / T21635, HG / T21631,
End Bevel: Menurut standar atau persyaratan pelanggan
Pengobatan permukaan: Minyak hitam yang ditembakkan dan tahan karat
Pengujian non-destruktif: uji penetrasi, uji ultrasonik, uji radiografi, inspeksi pihak ketiga,

Nama produk: ujung rintisan sambungan bersama

Item: buttweld-Lap Joint Stub End

Detail:

Ukuran Pipa Nominal Diameter Luar di Bevel Panjangnya Radius Fillet Diameter Lap SEBUAH B NPS D L. R G 1/2 3/4 1 21.3 26.7 33.4 51 51 51 3.0 3.0 3.0 0.8 0.8 0.8 35 43 51 11/4 11/2 2 42.2 48.3 60.3 51 51 64 5.0 6.0 8.0 0.8 0.8 0.8 64 73 92 21/2 3 31/2 73.0 88.9 101.6 64 64 76 8.0 10.0 10.0 0.8 0.8 0.8 106 127 140 4 5 6 114.3 141.3 168.3 76 76 89 11.0 11.0 13.0 0.8 1.6 1.6 157 185 218 8 10 12 219.1 273.0 323.8 102 127 152 13.0 13.0 13.0 1.6 1.6 1.6 270 324 381 14 16 18 355.6 406.4 457.0 152 152 152 13.0 13.0 13.0 1.6 1.6 1.6 413 470 533 20 22 24 508.0 559.0 610.0 152 152 152 13.0 13.0 13.0 1.6 - 1.6 584 641 692
