GRUP TOBO
TOBO Perdagangan Internasional (Shanghia) Co., LtdTianda Oil Pipe Co., Ltd
Peralatan Pipa TOBO Co, Ltd Pipa TPCO & TISCO (Tianjin) Co, Ltd.
| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO |
| Sertifikasi: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model: | Incoloy 800 WPNIC, Incoloy 825 WPNICMC |
| Kuantitas min Order: | 2PCS |
| Harga: | USD0.3-50 PER PC |
| Kemasan rincian: | KASUS ply-WOODEN OR PALLET |
| Waktu pengiriman: | 15days |
| Syarat-syarat pembayaran: | T/T, L/C, Western Union |
| Menyediakan kemampuan: | 9990000PCS Per Bulan |
| Nama: | lap joint stub end | Bahan: | Incoloy 800 WPNIC, Incoloy 825 WPNICMC |
|---|---|---|---|
| Koneksi: Ketebalan:: | SMLS, Pengelasan | Standar:: | ASME / ANSI B16.9 MSS SP-43 |
| Proses manufaktur: | Push, Press, Forge, Cast, dll | ||
| Menyoroti: | Lap Joint Stub End,Stub End Fitting |
||

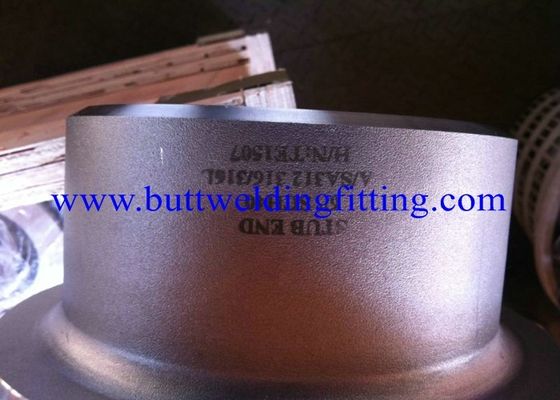

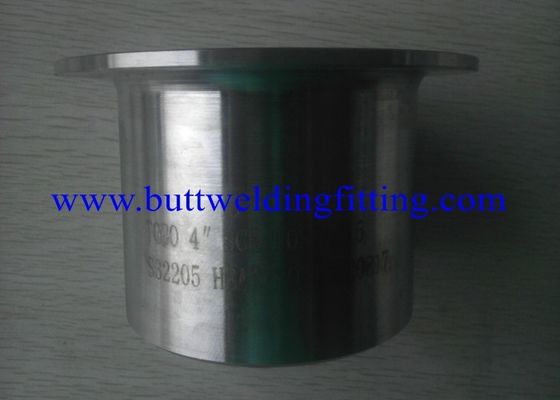

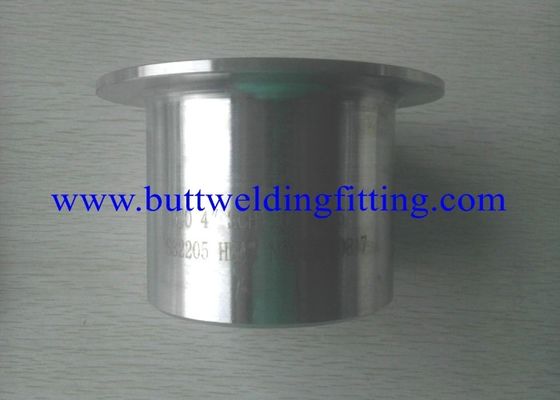

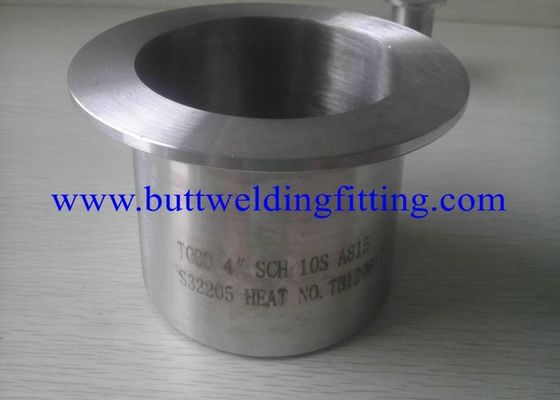

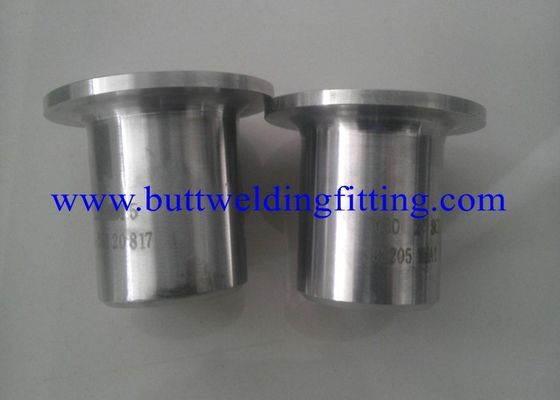

Incoloy 800 WPNIC, Incoloy 825 WPNICMC, Stainless Steel Stub Berakhir Lap Joint Stub End 6 "SCH40S
Mengetik
Stub stainless steel berakhir.
Standar
ASME / ANSI B16.9 MSS SP-43
Ukuran
1/2 '' ~ 48 '' (Seamless); 16 '' ~ 72 '' (Dilas)
ketebalan dinding
Sch5 ~ Sch160XXS
Proses pembuatan
Push, Press, Forge, Cast, dll.
Bahan
Baja karbon, baja tahan karat, baja paduan, baja dupleks, baja paduan nikel
| Nama dagang | INCOLOY® 800 | INCOLOY® 800H | INCOLOY® 800HT | INCOLOY® 825 |
| UNS # | N08800 | N08810 | N08811 | N08825 |
| Pipa / Tabung Seamless | B / SB407 A / SA312 B / SB163 A / SA213 | B / SB407 A / SA312 B / SB163 A / SA213 | B / SB407 A / SA312 B / SB163 A / SA213 | B / SB423 B / SB163 |
| Pipa / Tabung Las | B / SB515 B / SB514 A / SA312 / A / SA358 | B / SB515 B / SB514 A / SA312 / A / SA358 | B / SB515 A / SA312 | B / SB705 B474 B / SB704 |
| Perlengkapan Buttweld * | B / SB366 Kelas WPNIC | B / SB366 Kelas WPNIC10 | B / SB366 Kelas WPNIC11 | B / SB366 Kelas WPNICMC |
| Katup Tempa | B / SB564 | B / SB564 | B / SB564 | B / SB564 B / SB425 BAR |
| Fitting yang Dipalsukan | B / SB564 | B / SB564 | B / SB564 | B / SB564 |
| Flensa | B / SB564 | B / SB564 | B / SB564 | B / SB564 |
| Piring | B / SB409 A / SA240 | B / SB409 A / SA240 | B / SB409 A / SA240 | B / SB424 |
| Cast Steel Valves | A / SA351 UNS N08151 | A / SA351 UNS N08151 | ----- | A / SA494 UNS N08826 |
| Kelas | CT15C | CT15C | ----- | CU5MCuC |
* Berikut ini harus disertakan dengan penunjukan ASTM dan dinilai untuk deskripsi harus lengkap: WP (S) = Mulus WP (W) = Dilas WP (WX) = Dilas dengan x-ray 100% WP (U) = Dilas dengan pemeriksaan Ultrasonik 100% CR = Tahan korosi sesuai dengan MSS SP-43 | ||||
