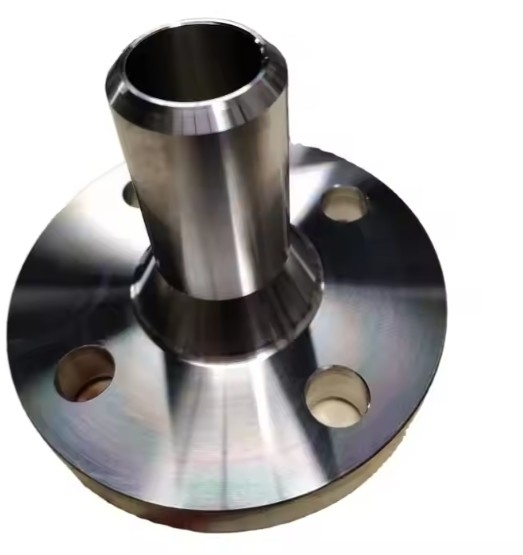

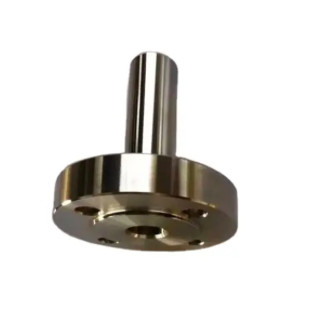

SA182 F51 Long Weld Neck Flange ASME B16.5 600# Rating Tekanan 8" Ukuran 405mm Panjang untuk Aplikasi Tahan Korosi

SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8" Size 405mm Length for Corrosion Resistance Applications
SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8" Size 405mm Length for Corrosion Resistance Applications SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8 SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8 SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8" Size 405mm Length for Corrosion Resistance Applications SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8 SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8 SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8" Size 405mm Length for Corrosion Resistance Applications SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8 SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8 SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8" Size 405mm Length for Corrosion Resistance Applications SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8 SA182 F51 Long Weld Neck Flange ASME B16.5 600# Pressure Rating 8
Informasi Dasar
Place of Origin: Shanghai
Nama merek: Metal
Sertifikasi: Certificate of origin
Minimum Order Quantity: 1PC
Harga: Dapat dinegosiasikan
Packaging Details: Wooden Case
Delivery Time: 7-15workdays
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200000
Harga terbaik Hubungi sekarang
Sealing Surface: FF, RF, TG, MFM, etc. Material: Carbon Steel, Stainless Steel, Alloy Steel
Product Type: WELDING NECK Origin: China
Surface Finish: Polished Screw Thread: NPT,NPTF,BSPP,BSPT,METRIC
Outer Diameter: 1/2''-60'' Face Type: Raised Face, Flat Face, Ring Type Joint
Connection: Butt Weld, Socket Weld, Threaded Pressur: DN650-1500
Standard Or Nonstandard: ASME B16.5 Quality Standard: Strictly follow ASME B16.11
Sealing: FF, RF, RTJ, Etc. Size: 1/2
Pressure: 150#-2500#
Menyoroti:

Flang leher las 8'

,

600# Flange leher las

,

Flensa Leher Las ASME B16.5

Deskripsi produk dari pemasok





Deskripsi Produk

ANSI B16.5 RF 300LBS ASTM A182 F51 NPS Long Welding Neck Flange



Nama produk Flang leher las panjang
Standar ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092
Jenis

LWN Flange C70600 ((90/10), C71500 ((70/30)

Flange khusus: Menurut gambar Gambar
Bahan-bahan

Paduan nikel: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276, N10665, N10675

Tembaga Nikel:

Baja Super Rustless: ASTM/ASME S/A182 F44, F904L, F317L
StainlesBaja: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Baja dupleks: ASTM A182 F51, F53, F55
Baja paduan: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91

Baja karbon: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....
Dimensi (150#,300#,600#): DN15-DN1500
900#: DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300
Penandaan Pasang Logo + Standar + Ukuran ((mm) + HEAT NO +atau sebagai kebutuhan Anda
Tes Analisis Komponen Kimia, Sifat Mekanis, Analisis Metalurgi, Pengujian Dampak, Pengujian Kekerasan, Pengujian Ferrit, Pengujian Korosi Intergranular, Inspeksi Sinar X (RT), PMI, PT, UT,Tes HIC & SSC, dll atau sesuai kebutuhan AndaePembagian
Merek TOBO
Sertifikat API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL dll.
Keuntungan

1. stok yang banyak dan pengiriman cepat

2. wajar untuk seluruh paket dan proses.
3. 15 tahun layanan tim QC & manajemen penjualan API & ASTM terlatih insinyur.

4. Lebih dari 150 pelanggan tersebar di seluruh dunia.







SA182 F51 Long Weld Neck Flange ASME B16.5 600# Rating Tekanan 8" Ukuran 405mm Panjang untuk Aplikasi Tahan Korosi 1SA182 F51 Long Weld Neck Flange ASME B16.5 600# Rating Tekanan 8" Ukuran 405mm Panjang untuk Aplikasi Tahan Korosi 2SA182 F51 Long Weld Neck Flange ASME B16.5 600# Rating Tekanan 8" Ukuran 405mm Panjang untuk Aplikasi Tahan Korosi 3
