Sch 40s Sch80s Butt Weld SS Peredam Stainless Steel 8 inci 10 inci 12 inci

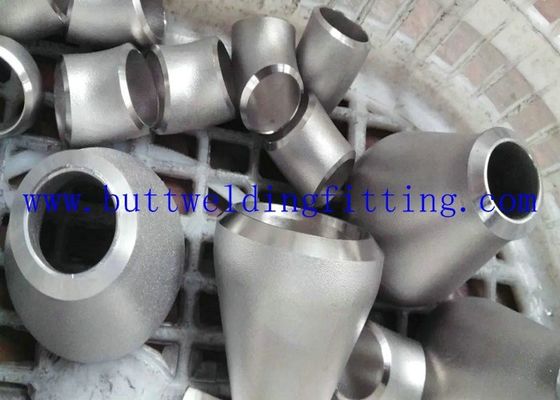

  • Sch 40s Sch80s Butt Weld SS Stainless Steel Reducer 8 inch 10 inch 12 inch

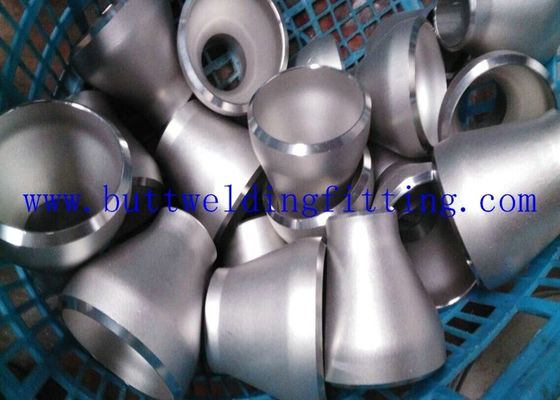

  • Sch 40s Sch80s Butt Weld SS Stainless Steel Reducer 8 inch 10 inch 12 inch

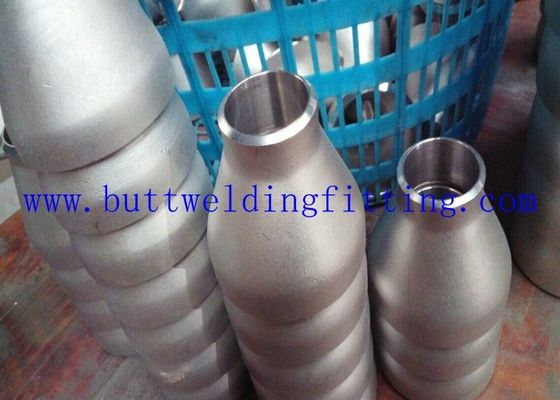

  • Sch 40s Sch80s Butt Weld SS Stainless Steel Reducer 8 inch 10 inch 12 inch

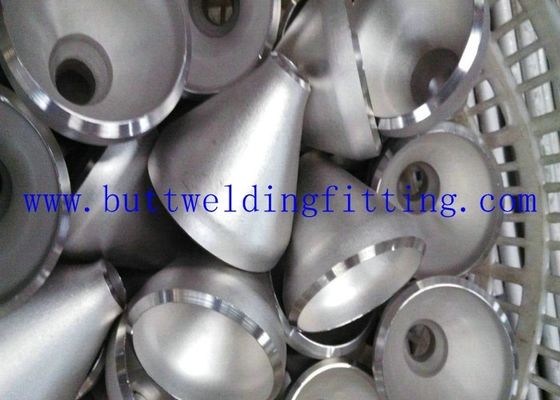

  • Sch 40s Sch80s Butt Weld SS Stainless Steel Reducer 8 inch 10 inch 12 inch
Tempat asal Cina
Nama merek TOBO
Sertifikasi ISO9001, API,CE
Nomor model Astm a403 Wp 316l 317l 904
Kuantitas min Order 1pcs
Harga USD 1-200
Kemasan rincian Kotak kayu atau palet kayu
Waktu pengiriman 960000000 PCS PER BULAN
Syarat-syarat pembayaran T / T, Western Union, , D / P, D / A, L / C
Detail produk
Spesifikasi standar ASTM, JIS, BS, DIN, UNI dll. Bahan Astm a403 Wp 316l 317l 904
Jenis Fitting Pipa Eccentric Reducer Konsentrik Reducer Tebal Sch5-Sch160, STD, XS, XXS
Menyoroti

Reducer Pipa Konsentris

,

Butt Weld Reducer
Tinggalkan pesan
Deskripsi Produk

Konsentris Reducer Konsentris Reducer Astm a403 Wp 316l 317l 904 8 "10" 12 "Sch 40s Sch80s

Kami menyediakan kepada klien kami alat kelengkapan butt weld yang terbuat dari stainless steel berkualitas tinggi dari aslinya

produsen. Ditawarkan dalam bentuk yang mulus dan dilas, fitting ini dibuat dengan presisi dan ditawarkan kepada

klien kami dalam spesifikasi berikut:
Bentuk:
1/8 "NB SAMPAI 48" NB. (Seamless & Welded)
Ketebalan
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS tersedia dengan NACE

MR 01-75
Mengetik:
· Siku dalam 45 deg, 90 deg, 180 deg, R = 1D, 1.5D, 3D, 5D, 6D, 8D, 10D & 20D.
· Peredam eksentrik & konsentris.
· Tutup & umpan silang.
· Tee yang sama & tidak sama.
· Panjang rintisan pendek & pendek.
Standar:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Bahan:
Stainless Steel: ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321/310/347 / 904L / dll.
Baja Karbon: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 dll.
Baja paduan: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 / dll.
Bahan lain: Monel, Nikel, Inconel, Hastalloy, Tembaga, Kuningan, Perunggu, Titanium, Tantalum, Bismuth,

Aluminium, Baja Kecepatan Tinggi, Seng, Timbal, dll.

Diameter Nominal

Diameter luar

Ujung ke ujung

D1 * D2

DN

NPS

Seri A

Seri B

H

20 × 15

3/4 × 1/2

26,9 × 21,3

25 × 18

38

20 × 10

3/4 × 3/8

26,9 × 17,3

25 × 14

38

25 × 20

1 × 3/4

33,7 × 26,9

32 × 25

51

25 × 15

1 × 1/2

33,7 × 21,3

32 × 18

51

32 × 25

1.1 / 4 × 1

42,4 × 33,7

38 × 32

51

32 × 20

1.1 / 4 × 3/4

42,4 × 26,9

38 × 25

51

32 × 15

1.1 / 4 × 1/2

42,4 × 21,3

38 × 18

51

40 × 32

1.1 / 2 × 1.1 / 4

48,3 × 42,4

45 × 38

64

40 × 25

1.1 / 2 × 1

48,3 × 33,7

45 × 32

64

40 × 20

1.1 / 2 × 3/4

48,3 × 26,9

45 × 25

64

40 × 15

1.1 / 2 × 1/2

48,3 × 21,3

45 × 18

64

50 × 40

2 × 1.1 / 2

60,3 × 48,3

57 × 45

76

50 × 32

2 × 1.1 / 4

60,3 × 42,4

57 × 38

76

50 × 25

2 × 1

60,3 × 33,7

57 × 32

76

50 × 20

2 × 3/4

60,3 × 26,9

57 × 25

76

65 × 50

2.1 / 2 × 2

73.0 × 60.3

76 × 57

89

65 × 40

2.1 / 2 × 1.1 / 2

73.0 × 48.3

76 × 45

89

65 × 32

2.1 / 2 × 1.1 / 4

73.0 × 42.4

76 × 38

89

65 × 25

2.1 / 2 × 1

73.0 × 33.7

76 × 32

89

80 × 65

3 × 2.1 / 2

88.9 × 73.0

89 × 76

89

80 × 50

3 × 2

88.9 × 60.3

89 × 57

89

80 × 40

3 × 1.1 / 2

88.9 × 48.3

89 × 45

89

80 × 32

3 × 1.1 / 4

88,9 × 42,4

89 × 38

89

90 × 80

3.1 / 2 × 3

101.6 × 88.9

-

102

90 × 65

3.1 / 2 × 2.1 / 2

101.6 × 73.0

-

102

90 × 50

3.1 / 2 × 2

101.6 × 60.3

-

102

90 × 40

3.1 / 2 × 1.1 / 2

101.6 × 48.3

-

102

90 × 32

3.1 / 2 × 1.1 / 4

101.6 × 42.4

-

102

100 × 90

4 × 3.1 / 2

114,3 × 101,6

-

102

100 × 80

4 × 3

114,3 × 88,9

108 × 89

102

100 × 65

4 × 2.1 / 2

114,3 × 73.0

108 × 76

102

100 × 50

4 × 2

114,3 × 60,3

108 × 57

102

100 × 40

4 × 1.1 / 2

114,3 × 48,3

108 × 45

102

125 × 100

5 × 4

141.3 × 114.3

133 × 108

127

125 × 90

5 × 3.1 / 2

141.3 × 101.6

-

127

125 × 80

5 × 3

141.3 × 88.9

133 × 89

127

125 × 65

5 × 2.1 / 2

141.3 × 73.0

133 × 76

127

125 × 50

5 × 2

141.3 × 60.3

133 × 57

127

150 × 125

6 × 5

168.3 × 141.3

159 × 133

140

150 × 100

6 × 5

168,3 × 114,3

159 × 108

140

150 × 90

6 × 3.1 / 2

168.3 × 101.6

-

140

150 × 80

6 × 3

168.3 × 88.9

159 × 89

140

150 × 65

6 × 2.1 / 2

168.3 × 73.0

159 × 76

140

200 × 150

8 × 6

219.1 × 168.3

219 × 159

152

200 × 125

8 × 5

219.1 × 141.3

219 × 133

152

200 × 100

8 × 4

219.1 × 114.3

219 × 108

152

200 × 90

8 × 3.1 / 2

219.1 × 101.6

-

152

250 × 200

10 × 8

273.0 × 219.1

273 × 219

178

250 × 150

10 × 6

273.0 × 168.3

273 × 159

178

250 × 125

10 × 5

273.0 × 141.3

273 × 133

178

250 × 100

10 × 4

273.0 × 114.3

273 × 108

178

300 × 250

12 × 10

323.9 × 273.1

325 × 273

203

300 × 200

12 × 8

323.9 × 219.1

325 × 219

203

300 × 150

12 × 6

323.9 × 168.3

325 × 159

203

300 × 125

12 × 5

323.9 × 141.3

325 × 133

203

350 × 300

14 × 12

355.6 × 323.9

377 × 325

330

350 × 250

14 × 10

355.6 × 273.0

377 × 273

330

350 × 200

14 × 8

355.6 × 219.1

377 × 219

330

350 × 150

14 × 6

355.6 × 168.3

377 × 159

330

400 × 350

16 × 14

406.4 × 355.6

426 × 377

356

400 × 300

16 × 12

406.4 × 323.9

426 × 325

356

400 × 250

16 × 10

406.4 × 273.0

426 × 273

356

400 × 200

16 × 8

406.4 × 219.1

426 × 219

356

450 × 400

18 × 16

457 × 406,4

478 × 426

381

450 × 350

18 × 14

457 × 355.6

478 × 377

381

450 × 300

18 × 12

457 × 323.9

478 × 325

381

450 × 250

18 × 10

457 × 273.0

478 × 273

381

500 × 450

20 × 18

508 × 457

529 × 478

508

500 × 400

20 × 16

508 × 406,4

529 × 426

508

500 × 350

20 × 14

508 × 355.6

529 × 377

508

500 × 300

20 × 12

508 × 323.9

529 × 325

508

550 × 500

22 × 20

559 × 508

-

508

550 × 450

22 × 18

559 × 457

-

508

550 × 400

22 × 16

559 × 406,4

-

508

550 × 350

22 × 14

559 × 355.6

-

508

600 × 550

24 × 22

610 × 559

-

508

600 × 500

24 × 20

610 × 508

630 × 529

508

600 × 450

24 × 18

610 × 457

630 × 478

508

600 × 400

24 × 22

610 × 406.4

630 × 426

508

650 × 600

26 × 24

660 × 610

-

610

650 × 550

26 × 22

660 × 559

-

610

650 × 500

26 × 20

660 × 508

-

610

650 × 450

26 × 18

660 × 457

-

610

700 × 650

28 × 26

711 × 660

-

610

700 × 600

28 × 24

711 × 610

720 × 630

610

700 × 550

28 × 22

711 × 559

-

610

700 × 500

28 × 20

711 × 508

720 × 530

610

750 × 700

30 × 28

762 × 711

-

610

750 × 650

30 × 26

762 × 660

-

610

750 × 600

30 × 24

762 × 610

-

610

750 × 550

30 × 22

762 × 559

-

610

800 × 750

32 × 30

813 × 762

-

610

800 × 700

32 × 28

813 × 711

820 × 720

610

800 × 650

32 × 26

813 × 660

-

610

800 × 600

32 × 24

813 × 610

820 × 630

610

850 × 800

34 × 32

864 × 813

-

610

850 × 750

34 × 30

864 × 762

-

610

850 × 700

34 × 28

864 × 711

-

610

850 × 650

34 × 26

864 × 660

-

610

900 × 850

36 × 34

914 × 864

-

610

900 × 800

36 × 32

914 × 813

920 × 820

610

900 × 750

36 × 30

914 × 762

-

610

900 × 700

36 × 28

914 × 711

920 × 720

610

950 × 900

38 × 36

965 × 914

-

610

950 × 850

38 × 34

965 × 864

-

610

950 × 800

38 × 32

965 × 813

-

610

950 × 750

38 × 30

965 × 762

-

610

1000 × 950

40 × 38

1016 × 965

-

610

1000 × 900

40 × 36

1016 × 914

1020 × 920

610

1000 × 850

40 × 34

1016 × 864

-

610

1000 × 800

40 × 32

1016 × 813

1020 × 820

610

1050 × 1000

42 × 40

1067 × 1016

-

610

1050 × 950

42 × 38

1067 × 965

-

610

1050 × 900

42 × 36

1067 × 914

-

610

1050 × 850

42 × 34

1067 × 864

-

610

1100 × 1050

44 × 42

1118 × 1067

-

610

1100 × 1000

44 × 40

1118 × 1016

1120 × 1020

610

1100 × 950

44 × 38

1118 × 965

-

610

1100 × 900

44 × 36

1118 × 914

1220 × 920

610

1150 × 1100

46 × 44

1168 × 1118

-

711

1150 × 1050

46 × 42

1168 × 1067

-

711

1150 × 1000

46 × 40

1168 × 1016

-

711

1150 × 950

46 × 38

1168 × 965

-

711

1200 × 1150

48 × 46

1220 × 1168

-

711

1200 × 1100

48 × 44

1220 × 1118

1220 × 1120

711

1200 × 1050

48 × 42

1220 × 1067

-

711

1200 × 1000

48 × 40

1220 × 1016

1220 × 1020

711

catatan:
Dimensi sesuai dengan GB / T12459, GB / T13401, ASME B16.9, SH3408, SH3409, HG / T21635,

Standar HG / T21631, SY / T05010.
