| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO |
| Sertifikasi: | ISO9001, API,CE |
| Nomor model: | 304 / CF8, 1,4301,316L, CF8M, 1,4408,2205 |
| Kuantitas min Order: | 1pcs |
| Harga: | Dapat dinegosiasikan |
| Kemasan rincian: | Kotak kayu atau palet kayu |
| Waktu pengiriman: | 99880000000 PCS PER BULAN |
| Syarat-syarat pembayaran: | T / T, Western Union, MoneyGram, D / P, D / A, L / C |
| Spesifikasi standar: | ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419, DIN EN10253, JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, | Bahan: | 304 / CF8,1,4301,316L CF8M, 1,4408,2205 |
|---|---|---|---|
| Jenis Fitting Pipa:: | Eccentric Reducer Konsentrik Reducer | Tebal:: | Sch5-Sch160, STD, XS, XXS |
| Menyoroti: | tutup ujung pipa stainless steel,tutup ujung tabung |
||

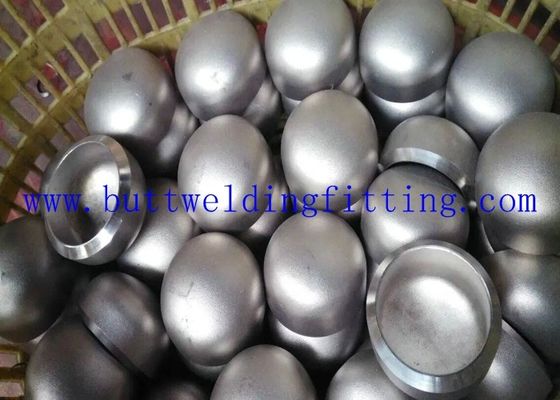

Tube End Caps Tutup Pipa Stainless Steel 304 / CF8 1,4301 316L CF8M
tutup alat kelengkapan pipa Ukuran 1/2 "-68" DN15-DN1800 ketebalan dinding Sch5-Sch160XXS Standar ISO, SNSI, JIS, DIN, GB / T12459GB / T13401ASME B16.9SH3408 SH3409HG / T21635HG / T21631SY / T05010 Bahan A234-WPB.A420-WPL6.A234-WP12.A234-WP11.A234-WP5.A403-WP304.A403-WP304L. A403-WP316.A403-WP316L Pengemasan Kasus kayu atau palet kayu atau sesuai kebutuhan pelanggan Jumlah Pesanan Min Sesuai dengan kebutuhan pelanggan Waktu pengiriman Sesuai dengan kebutuhan pelanggan Kualitas Kelas satu Produktifitas 1,118,000T / Y 1. anti korosi dan tahan suhu tinggi dengan lukisan hitam |
Topi
1. Rincian Produk.
Standrad
1) Standar: ASTM, ASME, DIN, JIS, API, GB, ISO
2) Sertifikasi: ABS, CC, TUV, CC, GL, BV, ISO14001, ISO9001, OHSMS
Bahan:
Baja Karbon: ASTM A-234 (WPB, WPC)
EN 10216-2 (P235GH, P265GH)
EN10222-2 (P245GH, P280GH)
NF A49-213 (TU42C, TU48C)
Baja Paduan Rendah: ASTM A-420 (WPL6)
ASTM A-234 (WP11, WP22, WP5)
ASTM A-860 (A860-WPHY52)
Baja Tahan Karat: ASTMA403M (WP304, WP304L, WP304H, WP316, WP316L, WP321, WP321H, WP347,
WP347H) EN10216-5 (X2CrNiN18-10 (1.4311), X5CrNi18-10 (1.4301), X5CrNiMo17-12-2 (1.4401), X2CrNiMo
17-12-2 (1.4404)
Standrad
1) Standar: ASTM, ASME, DIN, JIS, API, GB, ISO
2) Sertifikasi: ABS, CC, TUV, CC, GL, BV, ISO14001, ISO9001, OHSMS
Bahan:
Baja Karbon: ASTM A-234 (WPB, WPC)
EN 10216-2 (P235GH, P265GH)
EN10222-2 (P245GH, P280GH)
NF A49-213 (TU42C, TU48C)
Baja Paduan Rendah: ASTM A-420 (WPL6)
ASTM A-234 (WP11, WP22, WP5)
ASTM A-860 (A860-WPHY52)
Baja Tahan Karat: ASTMA403M (WP304, WP304L, WP304H, WP316, WP316L, WP321, WP321H, WP347,
WP347H) EN10216-5 (X2CrNiN18-10 (1.4311), X5CrNi18-10 (1.4301), X5CrNiMo17-12-2 (1.4401),
X2CrNiMo17-12-2 (1.4404)
Diameter Nominal | Diameter Luar di Bevel | Kembali ke Akhir | ||||
Seri A | Seri B | E | T | E1 | ||
DN | NPS | |||||
15 | 1/2 | 21.3 | 18 | 25 | 4.57 | 25 |
25 | 1 | 33.7 | 32 | 38 | 4.57 | 38 |
40 | 1.1 / 2 | 48.3 | 45 | 38 | 5.08 | 38 |
50 | 2 | 60.3 | 57 | 38 | 5.59 | 44 |
65 | 2.1 / 2 | 76.1 (73) | 76 | 38 | 7.11 | 51 |
80 | 3 | 88.9 | 89 | 51 | 7.62 | 64 |
100 | 4 | 114.3 | 108 | 64 | 8.64 | 76 |
125 | 5 | 139.7 | 133 | 76 | 9.65 | 89 |
150 | 6 | 168.3 | 159 | 89 | 10.92 | 102 |
200 | 8 | 219.1 | 219 | 102 | 12.70 | 127 |
300 | 12 | 323.9 | 325 | 152 | 12.70 | 178 |
350 | 14 | 355.6 | 377 | 165 | 12.70 | 191 |
400 | 16 | 406.4 | 426 | 178 | 12.70 | 203 |
450 | 18 | 457.2 | 478 | 203 | 12.70 | 229 |
500 | 20 | 508.0 | 529 | 229 | 12.70 | 254 |
550 | 22 | 559 | - | 254 | 12.70 | 254 |
600 | 24 | 610 | 630 | 267 | 12.70 | 305 |
Ketika T kurang dimensi dalam tanda kurung, ketinggian E tersedia. Kalau tidak, E1 tersedia. Di atas dimensi menurut GB / T12459, GB / T13401, ASME B16.9, SH3408, SH3409, HG / T21635 , HG / T21631, SY / T05010 | ||||||
