GRUP TOBO
TOBO Perdagangan Internasional (Shanghia) Co., LtdTianda Oil Pipe Co., Ltd
Peralatan Pipa TOBO Co, Ltd Pipa TPCO & TISCO (Tianjin) Co, Ltd.
| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO |
| Sertifikasi: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model: | ASTM A815 UNS 31803, UNS 32750 |
| Kuantitas min Order: | 2PCS |
| Harga: | USD0.5 -100 PER PC |
| Kemasan rincian: | KASUS ply-WOODEN OR PALLET |
| Waktu pengiriman: | 15days |
| Syarat-syarat pembayaran: | T/T, L/C, Western Union |
| Menyediakan kemampuan: | 9990000PCS Per Bulan |
| Produk: | ASME / ANSI B16.9 Stub Berakhir | Berbagai ukuran: | DN15-DN600 (1/2 "-24") Jenis Mulus DN15 - DN1200 (1/2 "- 48") Jenis Dilas |
|---|---|---|---|
| Mengetik: | Berakhirnya Pipa Stub (Seamless) | Bahan kelas: | ASTM A403 317L, 321, 321H, 347, 347H UNS 31254 / 254SMo |
| Ketebalan: | Sch5-Sch160, STD, XS, XXS | ||
| Menyoroti: | Lap Joint Stub End,Stub End Fitting |
||

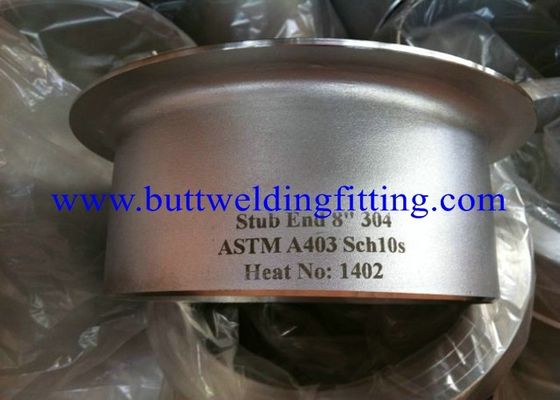

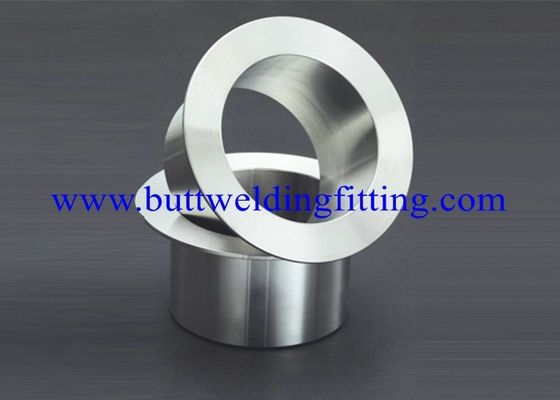

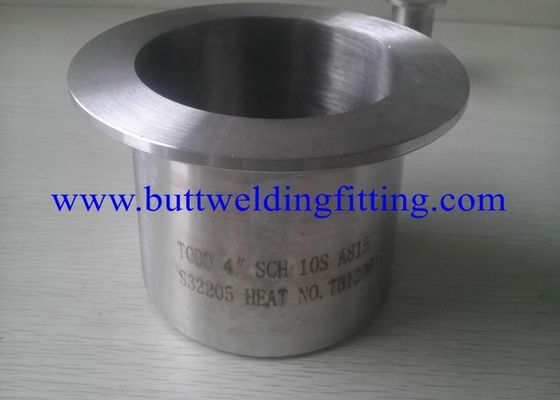

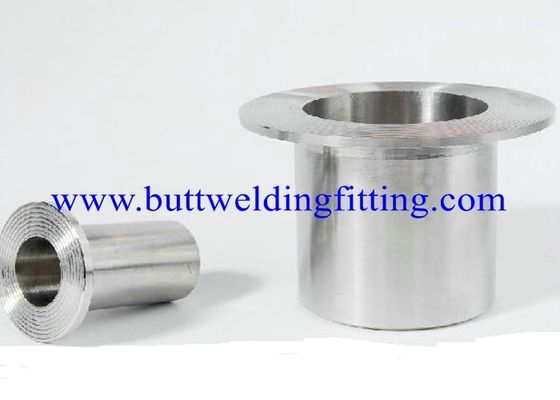

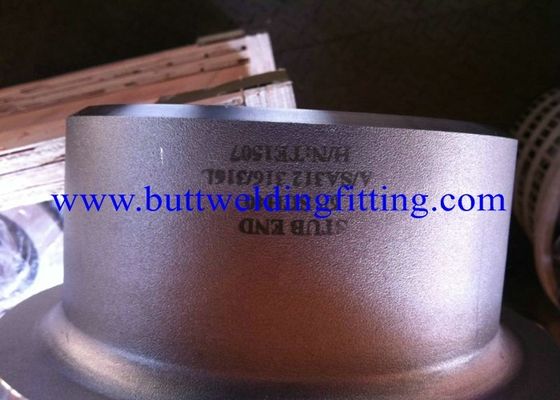

Nama Produk: Butt Welding Stainless Steel Fitting Stub end
Rentang ukuran:
DN15-DN600 (1/2 "-24") Jenis Mulus
DN15 - DN1200 (1/2 "- 48") Jenis yang dilas
Ketebalan Dinding: SCH5 ke SCH160
Bahan:
Baja karbon: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 dll
Baja Tahan Karat: ASTM A403 WP304 / 304L, WP316 / 316 / L, WP317L, WP321, WP347 & WPS31254
Baja paduan: ASTM A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP7 / WP9 / WP91
Baja dupleks dan super dupleks: ASTM A815 UNS S31803 / S32205 / S32750 / S32760
DIN 1.4301.1.4401.1.4404.1.4541.1.4401.1.4571 dll
Standar pembuatan:
ASME B16.9, ASME B16.11, ASME B16.28, MSS SP-43, JISB2311, JIS B2312, JIS B2313, DIN 2605, DIN 2606, DIN2615, DIN2616, BG12459-90, GB / T13401, HGJ514, SH3408, SH3409, HG / T21635, HG / T21631,
End Bevel: Menurut standar atau persyaratan pelanggan
Pengobatan permukaan: Minyak hitam yang ditembakkan dan tahan karat
Pengujian non-destruktif: uji penetrasi, uji ultrasonik, uji radiografi, inspeksi pihak ketiga,
DN | NPS | Diameter luar | Panjang Pola Panjang, F | Panjang Pola Pendek, F |
| Diameter Lap, G | ||||
Maks | Min | |||||||||
mm | Inci | mm | Inci | |||||||
15 | 1/2 | 22.8 | 0,896 | 20.5 | 0,809 | 76 | 51 | 3 | 35 | |
20 | 3/4 | 28.1 | 1.106 | 25.9 | 1.019 | 76 | 51 | 3 | 43 | |
25 | 1 | 35.0 | 10376 | 32.6 | 1.284 | 102 | 51 | 3 | 51 | |
32 | 1.1 / 4 | 43.6 | 10716 | 41.4 | 1.629 | 102 | 51 | 5 | 64 | |
40 | 1.1 / 2 | 49.9 | 1.965 | 47.5 | 1.869 | 102 | 51 | 6 | 73 | |
50 | 2 | 62.4 | 2.456 | 59.5 | 2.344 | 152 | 64 | 8 | 92 | |
65 | 2.1 / 2 | 75.3 | 2.966 | 72.2 | 2.844 | 152 | 64 | 8 | 105 | |
80 | 3 | 91.3 | 3.596 | 88.1 | 3.469 | 152 | 64 | 10 | 127 | |
90 | 3.1 / 2 | 104.0 | 4.096 | 100.8 | 3.969 | 152 | 76 | 10 | 140 | |
100 | 4 | 116.7 | 4.593 | 113.5 | 4.469 | 152 | 76 | 11 | 157 | |
125 | 5 | 144.3 | 5.683 | 140.5 | 5.532 | 203 | 76 | 11 | 186 | |
150 | 6 | 171.3 | 6.743 | 167.5 | 6.594 | 203 | 89 | 13 | 216 | |
200 | 8 | 222.1 | 8.743 | 218.3 | 8.594 | 203 | 102 | 13 | 270 | |
250 | 10 | 277.2 | 10.913 | 272.3 | 10.719 | 254 | 127 | 13 | 324 | |
300 | 12 | 328.0 | 12.913 | 323.1 | 12.719 | 254 | 152 | 13 | 381 | |
350 | 14 | 359.9 | 14.170 | 354.8 | 13.969 | 305 | 152 | 13 | 413 | |
400 | 16 | 411.0 | 16.180 | 405.6 | 15.969 | 305 | 152 | 13 | 470 | |
450 | 18 | 462.0 | 18.190 | 456.0 | 17.969 | 305 | 152 | 13 | 533 | |
500 | 20 | 514.0 | 20.240 | 507.0 | 19.969 | 305 | 152 | 13 | 584 | |
550 | 22 | 565.0 | 22.240 | 558.0 | 21.969 | 305 | 152 | 13 | 641 | |
600 | 24 | 616.0 | 24.240 | 609.0 | 23.969 | 305 | 152 | 13 | 692 | |
Nama Produk: Butt Welding Stainless Steel Fitting Stub end
Rentang ukuran:
DN15-DN600 (1/2 "-24") Jenis Mulus
DN15 - DN1200 (1/2 "- 48") Jenis yang dilas
Ketebalan Dinding: SCH5 ke SCH160
Bahan:
Baja karbon: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 dll
Baja Tahan Karat: ASTM A403 WP304 / 304L, WP316 / 316 / L, WP317L, WP321, WP347 & WPS31254
Baja paduan: ASTM A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP7 / WP9 / WP91
Baja dupleks dan super dupleks: ASTM A815 UNS S31803 / S32205 / S32750 / S32760
DIN 1.4301.1.4401.1.4404.1.4541.1.4401.1.4571 dll
Standar pembuatan:
ASME B16.9, ASME B16.11, ASME B16.28, MSS SP-43, JISB2311, JIS B2312, JIS B2313, DIN 2605, DIN 2606, DIN2615, DIN2616, BG12459-90, GB / T13401, HGJ514, SH3408, SH3409, HG / T21635, HG / T21631,
End Bevel: Menurut standar atau persyaratan pelanggan
Pengobatan permukaan: Minyak hitam yang ditembakkan dan tahan karat
Pengujian non-destruktif: uji penetrasi, uji ultrasonik, uji radiografi, inspeksi pihak ketiga,
Contact Person: Mr. Joy Wang
Tel: 86-21-31261985
Faks: 86-21-39510185
