GRUP TOBO
TOBO Perdagangan Internasional (Shanghia) Co., LtdTianda Oil Pipe Co., Ltd
Peralatan Pipa TOBO Co, Ltd Pipa TPCO & TISCO (Tianjin) Co, Ltd.
| Tempat asal: | China / Jepang / Jerman |
|---|---|
| Nama merek: | TOBO/TPCO/TISCO/VALIN/METAL |
| Sertifikasi: | ISO/PED/TUV/SGS/LR/BV |
| Nomor model: | TOBO Hastelloy C-4 (UNS No. N06455), C-276 (UNS No. N10276), Hastelloy C 22 (UNS No. N06022), Hastel |
| Kuantitas min Order: | 1m |
| Harga: | USD |
| Kemasan rincian: | PLY-WOODBOX |
| Waktu pengiriman: | 5-65 HARI KERJA |
| Syarat-syarat pembayaran: | T / T, L / C, Western Union, MoneyGram |
| Menyediakan kemampuan: | 3000ton / TAHUN |
| Standar: | ASTM B626, ISO 6207 VdTüV 400 / 12,98 DIN 17751 | Akhir: | Pipa ini memiliki akhir polos, miring akhir, threaded dan fitur seperti panas dicelupkan galvanis, e |
|---|---|---|---|
| warna: | Hitam atau Perak, Emas atau Merah | Panjang: | Tunggal Acak, Double Acak & Cut Panjang |
| ASTM: | B622, B619, B622, B626 | Kelas: | Seamless Hastelloy C22 Pipe ASTM B622 UNS N06022 WPHC22 (UNS N06022 / W.Nr.24602) Nikel Alloy Seamle |
| Jenis Jenis: | Mulus | Bentuk: | Bulat, persegi, persegi panjang, Hydraulic dll |
| Menyoroti: | Pipa Hastelloy C22,pipa Hastelloy b2 |
||

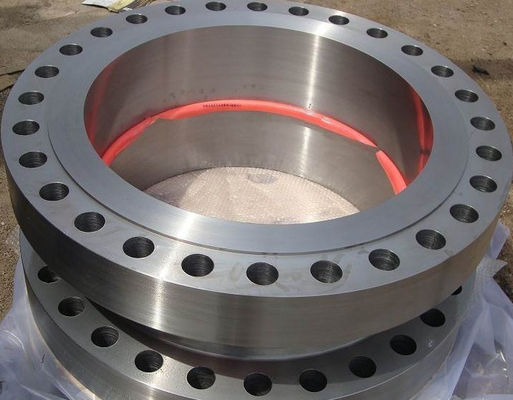

Jenis Flange | WN / pengelasan flensa leher; SO / slip on flensa; PL / Plate flange; BL / Flange buta; Flensa Th / Berulir; flensa las SW / socket; LF / SE (mengarah flange / ujung rintisan); LWN / flensa leher las panjang; Orifice flange; Mengurangi flange; API flange; Flensa Integral / Ringkas; Tontonan buta, Spade dan spacer garis, Paddle blind, Paddle spacer; Pelat lubang, Pelat pipa, Cincin berdarah, Flensa pelat |
Standar | ANSI B16.5, ANSI B16.47, ANSI B16.48, ANSI B16.36, JIS B2220, BS4504, BS1560, BS10; MSS SP44 DIN2630, DIN2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2501 (WN); DN2573, DIN2576, DIN2527, DIN2655, DIN2656 (PL); DIN2566 (TH) |
Ukuran | 1/2 '' ~ 60 '' |
Peringkat Kelas | 150 ~ 2500 |
Menghadapi | RF (wajah terangkat); FF (wajah datar), RTJ (ring type joint); RJ (ring joint face) TG (lidah dan wajah alur); MFM (wajah pria dan wanita) |
Proses pembuatan | Push, Press, Forge, Cast, dll. |
Bahan Baja karbon Besi tahan karat Baja paduan Duplex stainless steel | Baja karbon, baja tahan karat, baja paduan |
ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70; ASTM A234 WPB, WPC; ASTM A420 WPL6, WPL3; ASTM A105; ASTM A860; ASTM A350 LF1, LF2 CL1 / CL2, LF3 CL1 / CL2; ASTM A266 GR.1, GR.2, GR.3, GR.4 API 5L GR.B | |
ASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316Ti, 316L, 317, 317L, 321, 347.347 jam, 348.254SMO, S31254, UNS 8020, F45, S30815, F46, S30600, F904L A182 F56, S33228, F58, S31266, F62, N08367, ASTM A312 | |
ASTM A182 F5, F5a, F9, F11, F12, F22, F91; | |
ASTM A182 F51 / UNS S31803, F53 / UNS S32750, F55 / UNS S32760 | |
Pengepakan | Kotak kayu, palet, tas nilon atau sesuai dengan kebutuhan pelanggan |
MOQ | 1 buah |
Waktu pengiriman | 10-100 hari tergantung pada kuantitas |
Syarat pembayaran | T / T |
Pengiriman | FOB Shanghai, CFR, CIF dll |
Aplikasi | Minyak / Daya / Kimia / Konstruksi / Gas / Metalurgi / Pembuatan Kapal dll |
Komentar | Bahan dan gambar lain tersedia. |
Produk | Flensa | WN (pengelasan-leher); SO (slip-on); PL (Plat); BL (Buta); TH (Berulir); SW (soket-las); LF / SE (ujung flap / ujung bertali); LWN (panjang leher pengelasan); flens lubang udara; Mengurangi flensa; API mengarah; Integral/ Flensa kompak; Tontonan buta, Lind spade dan spacer, Paddle blind, Paddle spacer; Orifice plate; Plat pipa, cincin berdarah. | |
standar | Standar Amerika | ANSIB16.5, B16.7, / API605,6A, 6B / MSS SP44 / AWWA C207 | |
Jerman standar | DIN2630,2631,2632,2633,2634,2635,2636,2637,2638,2501 (WN); DIN2573.2576.2527.2655.2656 (PL); DIN2566 (TH) | ||
Inggris Standar | BS4504 PN16, PN40 / BS10 | ||
Jepang Standar | JIS / KS5K, 10K, 16K, 20K | ||
Rusia Standar | GOST12820.12821 | ||
Cina Standar | |||
Non- standar | Menurut ukuran gambar dari 10mm-5000mm, berat mulai 0,5K hingga 30 ton | ||
Ukuran | 1/2 "-60" | ||
Bahan |
Baja karbon | ASTM A106 GR.B, GR.C,; ASTM A333 GR.1, GR.3, GR.6; ASTM / ASME S / A179 / A 179M; ASTM / ASME S / A192 / A 192M; ASTM / ASME S / A210 / A 210M GR.A; API 5L GR.B, X42, X52, X60, X65; ASTM A860 / A 860M WPHY42, WPHY52, WPHY60, WPHY65, WPHY70; ASTM A694 / A 694M F42, F46, F48, F50, F52, F56, F60, F65, F70; ASTM / ASME S / A234 / A 234M WPB, WPC; ASTM / ASME S / A420 / A 420M WPL6, WPL3; ASTM / ASME S / A105 / A 105M; ASTM / ASME S / A266 / A 266M GR.1, GR.2, GR.3, GR.4; ASTM / ASME S / A350 / A 350M LF1, LF2, LF3; ASTM A193 B7, A307 B, A 320 L 7 ;; | |
Baja paduan | ASTM / ASMES / A335 / A315MP5, P9, P11, P12, P22, P91; ASTM / ASMES / A213A 213MT5, T9, T11, T12, T22, T23T91; DIN1717510CrMo910,13CrMo44, 10Cr9Mo1VNb; WB36 (15NiCuMoNb5); ASTM / ASMES / A234 / A234MWP5, WP9, WP11, WP12, WP22, WP9; ASTM / ASMES / A182 / A182MF5, F5a, F9, F11, F12, F22, F91; ASTM / ASME S / A336 / A 336M F5, F9, F11, F12, F22, F91. | ||
Besi tahan karat | ASTM / ASMEA / SA182F304,304L, 304H, 309S, 309H, 310S, 310H, 316,316TI, 16H, 316L, 316LN, 317,317L, 321,321H, 347,347H, 348,348H, F40 / S31254, F20 / N08020, F45 / S30815, F46 / S30600, F47 / S31725, F48 / S31726, F49 / S34565, F56 / S33228, F58 / S31266, F62 / N08367 / 1.4529 | ||
Baja Dupleks / Baja Dupleks Super | ASTM / ASMEA / SA182F51 / 2205 / S31803 / 1.4462 ; F53 / 2507 / S32750 / 1.4410; F55 / S32760, F50 / S31200; F57 / S39277; F59 / S32520; F60 / S32205; F61 / S3225F904L / N08904 / 1.4539; 254SMO / S31254 / 1.4574; S31050 / 1.4466; 17-4PH / S1400 / 1.4548724L; 316Lmod / 1.4435; 725LN / 310MoLN UNS S31254 / 254SMo / F44, S31200 / F50, S31803 / F51 / 2205, S32950 / F52, S32750 / F53 / 2507, S39274 / F54, S32760 / F55, S39277 / F57, S32520 / F59, S32205 / F60, F62 / No8367, S32550 / F61 / 00cr25ni6.5mo3cun, S32906 / F65 | ||
KELOMPOK TOBO
Penjelasan terperinci dari TOBO uns s32750 stainless steel super duplex
Komposisi kimia dari TOBO uns s32750 baja tahan karat super duplex
Kode Bahan | Persen massa (%) | |||||||||
| C | Si | M N | P | S | Cr | Ni | Mo | N | ||
2101 (S32101, 1.4162) | ASTM | ≤0,040 | ≤1.00 | 4,00-6,00 | ≤0,040 | ≤0.030 | 21.0-22.0 | 1.35-1.70 | 0,1-0,8 | 0,20-0,25 |
Khas nilai | 0,028 | 0,071 | 5.03 | 0,028 | 0,001 | 21.5 | 1,55 | 0,3 | 0,22 | |
2304 (S32304, 1.462) | ASTM | ≤0.030 | ≤1.00 | ≤2,50 | ≤0,040 | ≤0.030 | 21.5-24.5 | 3.0-5.5 | 0,05-0,60 | 0,05-0,20 |
Khas nilai | 0,026 | 0,5 | 1.28 | 0,028 | 0,001 | 23.5 | 4.05 | 0,3 | 0,12 | |
2205 S32205, 1.4462) | ASTM a | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.020 | 21.0-23.0 | 4.5-6.5 | 2.5-3.5 | 0,08-0,20 |
| ASTM b | ≤0.030 | ≤1.00 | ≤2.00 | ≤0.030 | ≤0.020 | 22.0-23.0 | 4.5-6.5 | 3.0-3.5 | 0,14-0,20 | |
Khas nilai | 0,025 | 0,55 | 1.2 | 0,028 | 0,001 | 22.1 | 5.10 | 3.10 | 0,17 | |
2507 (S32750, 1.4410) | ASTM | ≤0.030 | ≤1.00 | ≤1.20 | ≤0.035 | ≤0.020 | 24.0-26.0 | 6.0-8.0 | 3.0-5.0 | 0,24-0,32 |
Khas nilai | 0,026 | 0,55 | 0,78 | 0,028 | 0,001 | 25.5 | 7.40 | 4.10 | 0,28 | |
Sifat Mekanis dari TOBO uns s32750 baja stainless super duplex
| Kode Bahan | Rp0.2 / MPa | Rm / MPa | SEBUAH/% | HB | |
| 2101 (S32101,1.4162) | ASTM | ≥450 | ≥620 | ≥25 | ≤293 |
| Nilai khas | 530 | 720 | 33 | 240 | |
| 2304 (S32304,1.4362) | ASTM | ≥400 | ≥600 | ≥25 | ≤293 |
| Nilai khas | 520 | 710 | 35 | 245 | |
| 2205 (S31803. S32205.1.4462) | ASTMa | ≥450 | ≥620 | ≥25 | ≤293 |
| ASTMb | ≥450 | ≥655 | ≥25 | 255 | |
| Nilai khas | 550 | 750 | 33 | ≤293 | |
| 2507 (S32750.1.4410) | ASTM | ≥550 | ≥795 | ≥15 | 260 |
| Nilai khas | 580 | 850 | 31 | ≤310 |
Proses produksi TOBO uns s32750 baja tahan karat super duplex
