Lukisan Hitam / Galvanizing Finish Welding Stainless Steel Reducer Dengan Ukuran DN15-DN2400

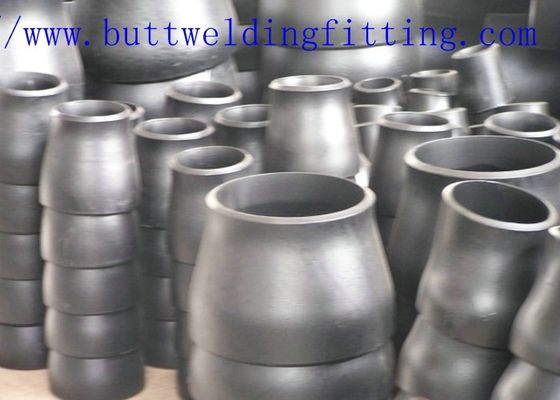

Black Painting / Galvanizing Finish Welding Stainless Steel Reducer With DN15-DN2400 Size

Informasi Dasar

Tempat asal:	Cina
Nama merek:	TOBO
Sertifikasi:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model:	Peredam-004

Kuantitas min Order:	1pc
Harga:	USD Depending on quantity
Kemasan rincian:	KASUS ply-WOODEN OR PALLET
Waktu pengiriman:	10-100 hari tergantung pada kuantitas
Syarat-syarat pembayaran:	L/C, T/T, Western Union
Menyediakan kemampuan:	3, 0000pcs per bulan

Harga terbaik Hubungi sekarang

Ukuran:	1-96 inci	Bahan Grrade:	904L
Standar:	ASME B16.9	Concreded; Peredam Ecc:	Mulus atau las
Koneksi:	Pengelasan	Kepala kode:	Lingkaran
Menyoroti:	Fitting Peredam Pipa , Reducer Pipa Konsentris

Peredam Stainless Steel WPB SS Fitting 304L 316 316L ANSI B16.9 Ukuran 1-96 inci

Rincian Cepat

Bahan:	Besi tahan karat	Teknik:	Butt Weld, Forged	Mengetik:	Peredam
Tempat asal:	China (Daratan)	Nomor model:	Con, peredam Ecc	Nama merk:	TOBO
Koneksi:	Pengelasan, pengelasan, koneksi berulir, soket las	Bentuk:	Sama	Kode Kepala:	Bulat
Standar:	ANSI / ASME / DIN / JIS / API / GB / ISO	Sertifikasi:	ISO9001 / 2008, ISO14001, OHSMS18000	Rentang ukuran:	DN15-DN2400 (1/2 "-96")
Ketebalan dinding:	SCH5-SCH160 XXS	Jenis:	Concreded; Peredam Ecc	Permukaan Finish:	ledakan pasir, lukisan hitam, selesai galvanis
Bahan:	baja karbon, baja paduan, stainless steel	Aplikasi:	gas alam, bahan kimia, pembuatan kapal dan sebagainya.	Istilah perdagangan:	FOB, C&F, CIF atau istilah permintaan pelanggan lainnya

Kemasan & Pengiriman

Rincian Kemasan:	Kasing kayu atau palet kayu atau sesuai dengan kebutuhan pembeli
Rincian pengiriman:	25-30 hari setelah konfirmasi pesanan

Spesifikasi

Semua jenis alat kelengkapan pipa dengan kualitas tinggi dan harga terbaik
1) MOQ: 1 PCS
2) Sertifikasi: IS0 API ABS BV GL DNV CE CCS

Rincian Produk

Peredam Conc Stainless Steel

1 Standar Produk & Marterial

Standar

1) Standar: ASTM, ASME, DIN, JIS, API, GB, ISO

2) Sertifikasi: ABS, CC, TUV, CC, GL, BV, ISO14001, ISO9001, OHSMS

Bahan:

Baja Karbon: ASTM A-234 (WPB, WPC) EN 10216-2 (P235GH, P265GH) EN10222-2 (P245GH, P280GH) NF A49-213 (TU42C, TU48C)

Baja Paduan Rendah: ASTM A-420 (WPL6) ASTM A-234 (WP11, WP22, WP5) ASTM A-860 (A860-

WPHY52)

Baja Tahan Karat: ASTMA403M (WP304, WP304L, WP304H, WP316L, WP321, WP321H, WP347, WP347H) EN10216-5 (X2CrNiN18-10 (1.4311), X5CrNi18-10 (1.4301), X5CrNoNoRoNoRo -12-2 (1.4404)

Diameter Nominal		Diameter luar		Ujung ke ujung
Diameter Nominal		*D1 D2**		Ujung ke ujung
DN	NPS	Seri A	Seri B	H
20 × 15	3/4 × 1/2	26,9 × 21,3	25 × 18	38
20 × 10	3/4 × 3/8	26,9 × 17,3	25 × 14	38
25 × 20	1 × 3/4	33,7 × 26,9	32 × 25	51
25 × 15	1 × 1/2	33,7 × 21,3	32 × 18	51
32 × 25	1.1 / 4 × 1	42,4 × 33,7	38 × 32	51
32 × 20	1.1 / 4 × 3/4	42,4 × 26,9	38 × 25	51
32 × 15	1.1 / 4 × 1/2	42,4 × 21,3	38 × 18	51
40 × 32	1.1 / 2 × 1.1 / 4	48,3 × 42,4	45 × 38	64
40 × 25	1.1 / 2 × 1	48,3 × 33,7	45 × 32	64
40 × 20	1.1 / 2 × 3/4	48,3 × 26,9	45 × 25	64
40 × 15	1.1 / 2 × 1/2	48,3 × 21,3	45 × 18	64
50 × 40	2 × 1.1 / 2	60,3 × 48,3	57 × 45	76
50 × 32	2 × 1.1 / 4	60,3 × 42,4	57 × 38	76
50 × 25	2 × 1	60,3 × 33,7	57 × 32	76
50 × 20	2 × 3/4	60,3 × 26,9	57 × 25	76
65 × 50	2.1 / 2 × 2	73.0 × 60.3	76 × 57	89
65 × 40	2.1 / 2 × 1.1 / 2	73.0 × 48.3	76 × 45	89
65 × 32	2.1 / 2 × 1.1 / 4	73.0 × 42.4	76 × 38	89
65 × 25	2.1 / 2 × 1	73.0 × 33.7	76 × 32	89
80 × 65	3 × 2.1 / 2	88.9 × 73.0	89 × 76	89
80 × 50	3 × 2	88.9 × 60.3	89 × 57	89
80 × 40	3 × 1.1 / 2	88.9 × 48.3	89 × 45	89
80 × 32	3 × 1.1 / 4	88,9 × 42,4	89 × 38	89
90 × 80	3.1 / 2 × 3	101.6 × 88.9	-	102
90 × 65	3.1 / 2 × 2.1 / 2	101.6 × 73.0	-	102
90 × 50	3.1 / 2 × 2	101.6 × 60.3	-	102
90 × 40	3.1 / 2 × 1.1 / 2	101.6 × 48.3	-	102
90 × 32	3.1 / 2 × 1.1 / 4	101.6 × 42.4	-	102
100 × 90	4 × 3.1 / 2	114,3 × 101,6	-	102
100 × 80	4 × 3	114,3 × 88,9	108 × 89	102
100 × 65	4 × 2.1 / 2	114,3 × 73.0	108 × 76	102
100 × 50	4 × 2	114,3 × 60,3	108 × 57	102
100 × 40	4 × 1.1 / 2	114,3 × 48,3	108 × 45	102
125 × 100	5 × 4	141.3 × 114.3	133 × 108	127
125 × 90	5 × 3.1 / 2	141.3 × 101.6	-	127
125 × 80	5 × 3	141.3 × 88.9	133 × 89	127
125 × 65	5 × 2.1 / 2	141.3 × 73.0	133 × 76	127
125 × 50	5 × 2	141.3 × 60.3	133 × 57	127
150 × 125	6 × 5	168.3 × 141.3	159 × 133	140
150 × 100	6 × 5	168,3 × 114,3	159 × 108	140
150 × 90	6 × 3.1 / 2	168.3 × 101.6	-	140
150 × 80	6 × 3	168.3 × 88.9	159 × 89	140
150 × 65	6 × 2.1 / 2	168.3 × 73.0	159 × 76	140
200 × 150	8 × 6	219.1 × 168.3	219 × 159	152
200 × 125	8 × 5	219.1 × 141.3	219 × 133	152
200 × 100	8 × 4	219.1 × 114.3	219 × 108	152
200 × 90	8 × 3.1 / 2	219.1 × 101.6	-	152
250 × 200	10 × 8	273.0 × 219.1	273 × 219	178
250 × 150	10 × 6	273.0 × 168.3	273 × 159	178
250 × 125	10 × 5	273.0 × 141.3	273 × 133	178
250 × 100	10 × 4	273.0 × 114.3	273 × 108	178
300 × 250	12 × 10	323.9 × 273.1	325 × 273	203
300 × 200	12 × 8	323.9 × 219.1	325 × 219	203
300 × 150	12 × 6	323.9 × 168.3	325 × 159	203
300 × 125	12 × 5	323.9 × 141.3	325 × 133	203
350 × 300	14 × 12	355.6 × 323.9	377 × 325	330
350 × 250	14 × 10	355.6 × 273.0	377 × 273	330
350 × 200	14 × 8	355.6 × 219.1	377 × 219	330
350 × 150	14 × 6	355.6 × 168.3	377 × 159	330
400 × 350	16 × 14	406.4 × 355.6	426 × 377	356
400 × 300	16 × 12	406.4 × 323.9	426 × 325	356
400 × 250	16 × 10	406.4 × 273.0	426 × 273	356
400 × 200	16 × 8	406.4 × 219.1	426 × 219	356
450 × 400	18 × 16	457 × 406,4	478 × 426	381
450 × 350	18 × 14	457 × 355.6	478 × 377	381
450 × 300	18 × 12	457 × 323.9	478 × 325	381
450 × 250	18 × 10	457 × 273.0	478 × 273	381
500 × 450	20 × 18	508 × 457	529 × 478	508
500 × 400	20 × 16	508 × 406,4	529 × 426	508
500 × 350	20 × 14	508 × 355.6	529 × 377	508
500 × 300	20 × 12	508 × 323.9	529 × 325	508
550 × 500	22 × 20	559 × 508	-	508
550 × 450	22 × 18	559 × 457	-	508
550 × 400	22 × 16	559 × 406,4	-	508
550 × 350	22 × 14	559 × 355.6	-	508
600 × 550	24 × 22	610 × 559	-	508
600 × 500	24 × 20	610 × 508	630 × 529	508
600 × 450	24 × 18	610 × 457	630 × 478	508
600 × 400	24 × 22	610 × 406.4	630 × 426	508
650 × 600	26 × 24	660 × 610	-	610
650 × 550	26 × 22	660 × 559	-	610
650 × 500	26 × 20	660 × 508	-	610
650 × 450	26 × 18	660 × 457	-	610
700 × 650	28 × 26	711 × 660	-	610
700 × 600	28 × 24	711 × 610	720 × 630	610
700 × 550	28 × 22	711 × 559	-	610
700 × 500	28 × 20	711 × 508	720 × 530	610
750 × 700	30 × 28	762 × 711	-	610
750 × 650	30 × 26	762 × 660	-	610
750 × 600	30 × 24	762 × 610	-	610
750 × 550	30 × 22	762 × 559	-	610
800 × 750	32 × 30	813 × 762	-	610
800 × 700	32 × 28	813 × 711	820 × 720	610
800 × 650	32 × 26	813 × 660	-	610
800 × 600	32 × 24	813 × 610	820 × 630	610
850 × 800	34 × 32	864 × 813	-	610
850 × 750	34 × 30	864 × 762	-	610
850 × 700	34 × 28	864 × 711	-	610
850 × 650	34 × 26	864 × 660	-	610
900 × 850	36 × 34	914 × 864	-	610
900 × 800	36 × 32	914 × 813	920 × 820	610
900 × 750	36 × 30	914 × 762	-	610
900 × 700	36 × 28	914 × 711	920 × 720	610
950 × 900	38 × 36	965 × 914	-	610
950 × 850	38 × 34	965 × 864	-	610
950 × 800	38 × 32	965 × 813	-	610
950 × 750	38 × 30	965 × 762	-	610
1000 × 950	40 × 38	1016 × 965	-	610
1000 × 900	40 × 36	1016 × 914	1020 × 920	610
1000 × 850	40 × 34	1016 × 864	-	610
1000 × 800	40 × 32	1016 × 813	1020 × 820	610
1050 × 1000	42 × 40	1067 × 1016	-	610
1050 × 950	42 × 38	1067 × 965	-	610
1050 × 900	42 × 36	1067 × 914	-	610
1050 × 850	42 × 34	1067 × 864	-	610
1100 × 1050	44 × 42	1118 × 1067	-	610
1100 × 1000	44 × 40	1118 × 1016	1120 × 1020	610
1100 × 950	44 × 38	1118 × 965	-	610
1100 × 900	44 × 36	1118 × 914	1220 × 920	610
1150 × 1100	46 × 44	1168 × 1118	-	711
1150 × 1050	46 × 42	1168 × 1067	-	711
1150 × 1000	46 × 40	1168 × 1016	-	711
1150 × 950	46 × 38	1168 × 965	-	711
1200 × 1150	48 × 46	1220 × 1168	-	711
1200 × 1100	48 × 44	1220 × 1118	1220 × 1120	711
1200 × 1050	48 × 42	1220 × 1067	-	711
1200 × 1000	48 × 40	1220 × 1016	1220 × 1020	711
catatan: Dimensi sesuai dengan GB / T12459, GB / T13401, ASME B16.9, SH3408, SH3409, HG / T21635, HG / T21631, standar SY / T05010
