Peredam Stainless Steel SS904L, Fitting Peredam Pipa 1-60 Inch ASME B16.9 Standar

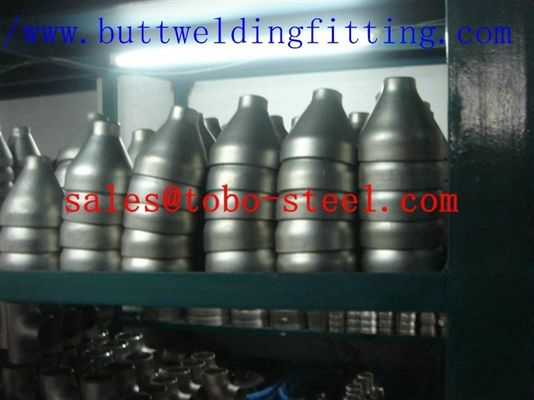

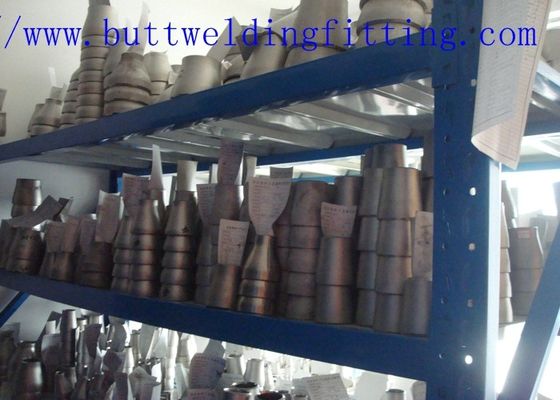

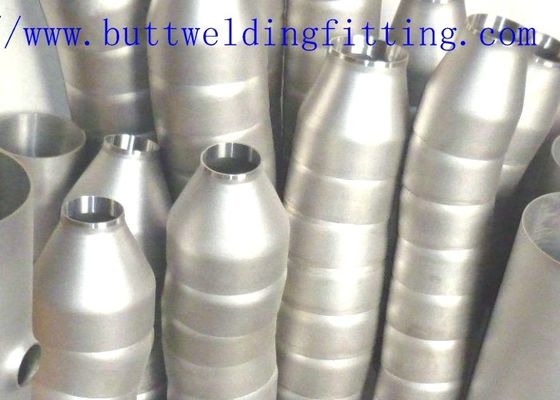

SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard
SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard SS904L Stainless Steel Reducer , 1-60 Inch Pipe Reducer Fittings ASME B16.9 Standard
Informasi Dasar
Tempat asal: Cina
Nama merek: TOBO
Sertifikasi: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model: Peredam
Kuantitas min Order: 1pc
Harga: USD
Kemasan rincian: kasus kayu
Waktu pengiriman: 10-100days
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 10000 pcs setiap bulan
Harga terbaik Hubungi sekarang
Bahan: 904L Ukuran: 1-60 inci
Standar: ASME B16.9 Concreded; Peredam Ecc: Mulus atau las
DN: 15-2400
Menyoroti:

Fitting Peredam Pipa

,

Reducer Pipa Konsentris

Spesifikasi

1. Peredam stainless steel
2. sch5s-schxxs

Rincian Cepat

Bahan: Besi tahan karat Teknik: Butt Weld, Forged Mengetik: Peredam
Tempat asal: China (Daratan) Nomor model: Con, peredam Ecc Nama merk: TOBO
Koneksi: Pengelasan, pengelasan, koneksi berulir, soket las Bentuk: Sama Kode Kepala: Bulat
Standar: ANSI / ASME / DIN / JIS / API / GB / ISO Sertifikasi: ISO9001 / 2008, ISO14001, OHSMS18000 Rentang ukuran: DN15-DN2400 (1/2 "-96")
Ketebalan dinding: SCH5-SCH160 XXS Jenis: Concreded; Peredam Ecc Permukaan Finish: ledakan pasir, lukisan hitam, selesai galvanis
Bahan: baja karbon, baja paduan, stainless steel Aplikasi: gas alam, bahan kimia, pembuatan kapal dan sebagainya. Istilah perdagangan: FOB, C&F, CIF atau istilah permintaan pelanggan lainnya

Kemasan & Pengiriman

Rincian Kemasan: Kasing kayu atau palet kayu atau sesuai dengan kebutuhan pembeli
Rincian pengiriman: 25-30 hari setelah konfirmasi pesanan

Spesifikasi

Semua jenis alat kelengkapan pipa dengan kualitas tinggi dan harga terbaik
1) MOQ: 1 PCS
2) Sertifikasi: IS0 API ABS BV GL DNV CE CCS

Rincian Produk

Peredam Conc Stainless Steel

1 Standar Produk & Marterial

Standar

1) Standar: ASTM, ASME, DIN, JIS, API, GB, ISO

2) Sertifikasi: ABS, CC, TUV, CC, GL, BV, ISO14001, ISO9001, OHSMS

Bahan:

Baja Karbon: ASTM A-234 (WPB, WPC) EN 10216-2 (P235GH, P265GH) EN10222-2 (P245GH, P280GH) NF A49-213 (TU42C, TU48C)

Baja Paduan Rendah: ASTM A-420 (WPL6) ASTM A-234 (WP11, WP22, WP5) ASTM A-860 (A860-

WPHY52)

Baja Tahan Karat: ASTMA403M (WP304, WP304L, WP304H, WP316L, WP321, WP321H, WP347, WP347H) EN10216-5 (X2CrNiN18-10 (1.4311), X5CrNi18-10 (1.4301), X5CrNoNoRoNoRo -12-2 (1.4404)

pemeriksaan dimensi dan toleransi, inspeksi fisik dan kimia, magnet bocor dan inspeksi ultrasonik

c barang jadi inspeksi :

dimensi dan toleransi, pemeriksaan kualitas penampilan dan pengujian sifat mekanik

d Inspeksi sebelum ex-pabrik:

Kami mengatur staf qc kami untuk memproduksi pabrik untuk kualitas akhir dan inspeksi kemasan setiap kali sebelum kami mengirimkan barang ke pelabuhan untuk pengiriman, dan staf penjualan yang terhubung akan dengan staf qc untuk memastikan kami melakukan semuanya sepenuhnya dan ketat memenuhi persyaratan pelanggan kami.

Diameter Nominal Diameter luar Ujung ke ujung
D1 * D2
DN NPS Seri A Seri B H
20 × 15 3/4 × 1/2 26,9 × 21,3 25 × 18 38
20 × 10 3/4 × 3/8 26,9 × 17,3 25 × 14 38
25 × 20 1 × 3/4 33,7 × 26,9 32 × 25 51
25 × 15 1 × 1/2 33,7 × 21,3 32 × 18 51
32 × 25 1.1 / 4 × 1 42,4 × 33,7 38 × 32 51
32 × 20 1.1 / 4 × 3/4 42,4 × 26,9 38 × 25 51
32 × 15 1.1 / 4 × 1/2 42,4 × 21,3 38 × 18 51
40 × 32 1.1 / 2 × 1.1 / 4 48,3 × 42,4 45 × 38 64
40 × 25 1.1 / 2 × 1 48,3 × 33,7 45 × 32 64
40 × 20 1.1 / 2 × 3/4 48,3 × 26,9 45 × 25 64
40 × 15 1.1 / 2 × 1/2 48,3 × 21,3 45 × 18 64
50 × 40 2 × 1.1 / 2 60,3 × 48,3 57 × 45 76
50 × 32 2 × 1.1 / 4 60,3 × 42,4 57 × 38 76
50 × 25 2 × 1 60,3 × 33,7 57 × 32 76
50 × 20 2 × 3/4 60,3 × 26,9 57 × 25 76
65 × 50 2.1 / 2 × 2 73.0 × 60.3 76 × 57 89
65 × 40 2.1 / 2 × 1.1 / 2 73.0 × 48.3 76 × 45 89
65 × 32 2.1 / 2 × 1.1 / 4 73.0 × 42.4 76 × 38 89
65 × 25 2.1 / 2 × 1 73.0 × 33.7 76 × 32 89
80 × 65 3 × 2.1 / 2 88.9 × 73.0 89 × 76 89
80 × 50 3 × 2 88.9 × 60.3 89 × 57 89
80 × 40 3 × 1.1 / 2 88.9 × 48.3 89 × 45 89
80 × 32 3 × 1.1 / 4 88,9 × 42,4 89 × 38 89
90 × 80 3.1 / 2 × 3 101.6 × 88.9 - 102
90 × 65 3.1 / 2 × 2.1 / 2 101.6 × 73.0 - 102
90 × 50 3.1 / 2 × 2 101.6 × 60.3 - 102
90 × 40 3.1 / 2 × 1.1 / 2 101.6 × 48.3 - 102
90 × 32 3.1 / 2 × 1.1 / 4 101.6 × 42.4 - 102
100 × 90 4 × 3.1 / 2 114,3 × 101,6 - 102
100 × 80 4 × 3 114,3 × 88,9 108 × 89 102
100 × 65 4 × 2.1 / 2 114,3 × 73.0 108 × 76 102
100 × 50 4 × 2 114,3 × 60,3 108 × 57 102
100 × 40 4 × 1.1 / 2 114,3 × 48,3 108 × 45 102
125 × 100 5 × 4 141.3 × 114.3 133 × 108 127
125 × 90 5 × 3.1 / 2 141.3 × 101.6 - 127
125 × 80 5 × 3 141.3 × 88.9 133 × 89 127
125 × 65 5 × 2.1 / 2 141.3 × 73.0 133 × 76 127
125 × 50 5 × 2 141.3 × 60.3 133 × 57 127
150 × 125 6 × 5 168.3 × 141.3 159 × 133 140
150 × 100 6 × 5 168,3 × 114,3 159 × 108 140
150 × 90 6 × 3.1 / 2 168.3 × 101.6 - 140
150 × 80 6 × 3 168.3 × 88.9 159 × 89 140
150 × 65 6 × 2.1 / 2 168.3 × 73.0 159 × 76 140
200 × 150 8 × 6 219.1 × 168.3 219 × 159 152
200 × 125 8 × 5 219.1 × 141.3 219 × 133 152
200 × 100 8 × 4 219.1 × 114.3 219 × 108 152
200 × 90 8 × 3.1 / 2 219.1 × 101.6 - 152
250 × 200 10 × 8 273.0 × 219.1 273 × 219 178
250 × 150 10 × 6 273.0 × 168.3 273 × 159 178
250 × 125 10 × 5 273.0 × 141.3 273 × 133 178
250 × 100 10 × 4 273.0 × 114.3 273 × 108 178
300 × 250 12 × 10 323.9 × 273.1 325 × 273 203
300 × 200 12 × 8 323.9 × 219.1 325 × 219 203
300 × 150 12 × 6 323.9 × 168.3 325 × 159 203
300 × 125 12 × 5 323.9 × 141.3 325 × 133 203
350 × 300 14 × 12 355.6 × 323.9 377 × 325 330
350 × 250 14 × 10 355.6 × 273.0 377 × 273 330
350 × 200 14 × 8 355.6 × 219.1 377 × 219 330
350 × 150 14 × 6 355.6 × 168.3 377 × 159 330
400 × 350 16 × 14 406.4 × 355.6 426 × 377 356
400 × 300 16 × 12 406.4 × 323.9 426 × 325 356
400 × 250 16 × 10 406.4 × 273.0 426 × 273 356
400 × 200 16 × 8 406.4 × 219.1 426 × 219 356
450 × 400 18 × 16 457 × 406,4 478 × 426 381
450 × 350 18 × 14 457 × 355.6 478 × 377 381
450 × 300 18 × 12 457 × 323.9 478 × 325 381
450 × 250 18 × 10 457 × 273.0 478 × 273 381
500 × 450 20 × 18 508 × 457 529 × 478 508
500 × 400 20 × 16 508 × 406,4 529 × 426 508
500 × 350 20 × 14 508 × 355.6 529 × 377 508
500 × 300 20 × 12 508 × 323.9 529 × 325 508
550 × 500 22 × 20 559 × 508 - 508
550 × 450 22 × 18 559 × 457 - 508
550 × 400 22 × 16 559 × 406,4 - 508
550 × 350 22 × 14 559 × 355.6 - 508
600 × 550 24 × 22 610 × 559 - 508
600 × 500 24 × 20 610 × 508 630 × 529 508
600 × 450 24 × 18 610 × 457 630 × 478 508
600 × 400 24 × 22 610 × 406.4 630 × 426 508
650 × 600 26 × 24 660 × 610 - 610
650 × 550 26 × 22 660 × 559 - 610
650 × 500 26 × 20 660 × 508 - 610
650 × 450 26 × 18 660 × 457 - 610
700 × 650 28 × 26 711 × 660 - 610
700 × 600 28 × 24 711 × 610 720 × 630 610
700 × 550 28 × 22 711 × 559 - 610
700 × 500 28 × 20 711 × 508 720 × 530 610
750 × 700 30 × 28 762 × 711 - 610
750 × 650 30 × 26 762 × 660 - 610
750 × 600 30 × 24 762 × 610 - 610
750 × 550 30 × 22 762 × 559 - 610
800 × 750 32 × 30 813 × 762 - 610
800 × 700 32 × 28 813 × 711 820 × 720 610
800 × 650 32 × 26 813 × 660 - 610
800 × 600 32 × 24 813 × 610 820 × 630 610
850 × 800 34 × 32 864 × 813 - 610
850 × 750 34 × 30 864 × 762 - 610
850 × 700 34 × 28 864 × 711 - 610
850 × 650 34 × 26 864 × 660 - 610
900 × 850 36 × 34 914 × 864 - 610
900 × 800 36 × 32 914 × 813 920 × 820 610
900 × 750 36 × 30 914 × 762 - 610
900 × 700 36 × 28 914 × 711 920 × 720 610
950 × 900 38 × 36 965 × 914 - 610
950 × 850 38 × 34 965 × 864 - 610
950 × 800 38 × 32 965 × 813 - 610
950 × 750 38 × 30 965 × 762 - 610
1000 × 950 40 × 38 1016 × 965 - 610
1000 × 900 40 × 36 1016 × 914 1020 × 920 610
1000 × 850 40 × 34 1016 × 864 - 610
1000 × 800 40 × 32 1016 × 813 1020 × 820 610
1050 × 1000 42 × 40 1067 × 1016 - 610
1050 × 950 42 × 38 1067 × 965 - 610
1050 × 900 42 × 36 1067 × 914 - 610
1050 × 850 42 × 34 1067 × 864 - 610
1100 × 1050 44 × 42 1118 × 1067 - 610
1100 × 1000 44 × 40 1118 × 1016 1120 × 1020 610
1100 × 950 44 × 38 1118 × 965 - 610
1100 × 900 44 × 36 1118 × 914 1220 × 920 610
1150 × 1100 46 × 44 1168 × 1118 - 711
1150 × 1050 46 × 42 1168 × 1067 - 711
1150 × 1000 46 × 40 1168 × 1016 - 711
1150 × 950 46 × 38 1168 × 965 - 711
1200 × 1150 48 × 46 1220 × 1168 - 711
1200 × 1100 48 × 44 1220 × 1118 1220 × 1120 711
1200 × 1050 48 × 42 1220 × 1067 - 711
1200 × 1000 48 × 40 1220 × 1016 1220 × 1020 711
catatan:
Dimensi sesuai dengan GB / T12459, GB / T13401, ASME B16.9, SH3408, SH3409, HG / T21635, HG / T21631, standar SY / T05010

Keuntungan kami

saya. Peralatan ultrasonik untuk inspeksi ketebalan

ii. Peralatan pendeteksi cacat ultrasonik

aku aku aku. Peralatan pengujian material universal

iv. Alat analisa karbon dan sulfur

Label:

Reducer Pipa Konsentris,

Fitting Peredam Pipa,

Butt Weld Reducer
