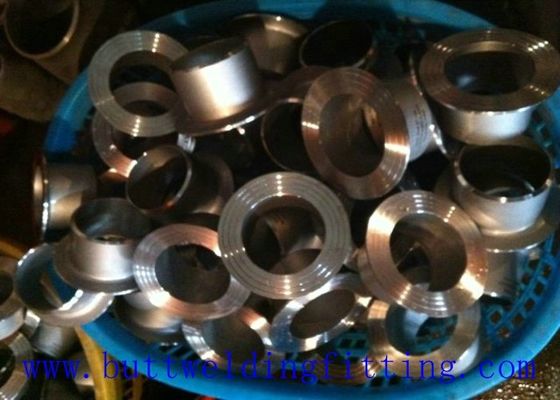

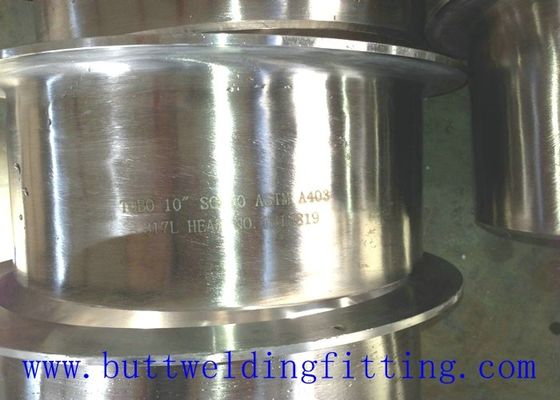

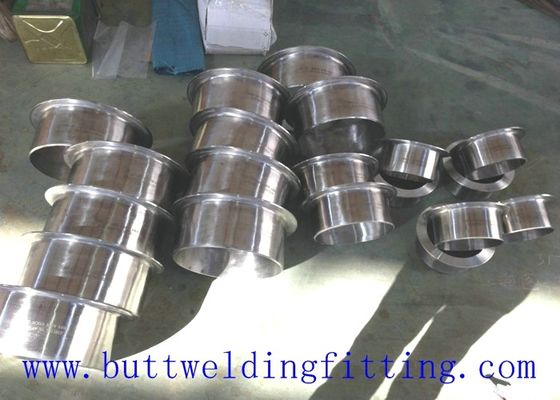

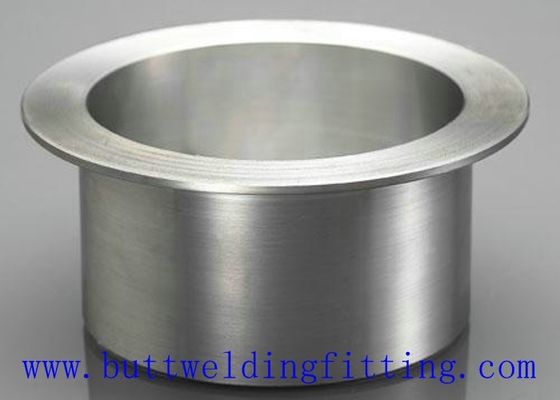

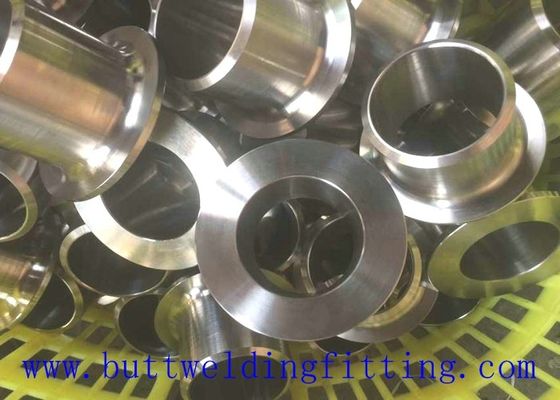

316L / 304L Stainless Steel Stub Berakhir WP347 Standard, Seamless / Weld Type

316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type
316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type 316L / 304L Stainless Steel Stub Ends WP347 Standard , Seamless / Weld Type
Informasi Dasar
Tempat asal: Cina
Nama merek: TOBO
Sertifikasi: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model: Stub End
Kuantitas min Order: 1pc
Harga: USD
Kemasan rincian: kasus kayu
Waktu pengiriman: 10-90 hari kerja
Syarat-syarat pembayaran: L/C, T/T, Western Union
Menyediakan kemampuan: 10000 pcs per
Harga terbaik Hubungi sekarang
Bahan: UNSS31803 Ukuran: 1-48 inci
DN: 15-1200 Mengetik: Mulus atau las
Standar: DIN, EN, ASTM, B
Menyoroti:

SS Stub End

,

Stub End Fittings

Stub Stainless Steel Berakhir Bahan 316L, 304L WP347 ASME Standar / ANSI B16.9 Size1 -48i nch

1.Stub baja stainless end
2.sch5s-schxxs
3.ISO9001, ISO9000
4.Pasar: Amerika, Afrika, Timur Tengah, Asia Tenggara

Jenis Siku Stub stainless steel berakhir.
Standar ASME / ANSI B16.9 MSS SP-43
Ukuran 1/2 '' ~ 48 '' (Seamless); 16 '' ~ 72 '' (Dilas)
ketebalan dinding Sch5 ~ Sch160XXS
Proses pembuatan Push, Press, Forge, Cast, dll.
Bahan Baja karbon, baja tahan karat, baja paduan, baja dupleks, baja paduan nikel
Baja karbon ASTM A234 WPB, WPC;
Besi tahan karat

304 / SUS304 / UNS S30400 / 1.4301

304L / UNS S30403 / 1.4306;

304H / UNS S30409 / 1.4948;

309S / UNS S30908 / 1.4833

309H / UNS S30909;

310S / UNS S31008 / 1.4845;

310H / UNS S31009;

316 / UNS S31600 / 1.4401;

316Ti / UNS S31635 / 1.4571;

316H / UNS S31609 / 1.4436;

316L / UNS S31603 / 1.4404;

316LN / UNS S31653;

317 / UNS S31700;

317L / UNS S31703 / 1.4438;

321 / UNS S32100 / 1.4541;

321H / UNS S32109;

347 / UNS S34700 / 1.4550;

347H / UNS S34709 / 1.4912;

348 / UNS S34800;

Baja paduan

ASTM A234 WP5 / WP9 / WP11 / WP12 / WP22 / WP91;

ASTM A860 WPHY42 / WPHY52 / WPHY60 / WPHY65;

ASTM A420 WPL3 / WPL6 / WPL9;

Baja dupleks

ASTM A182 F51 / S31803 / 1.4462;

ASTM A182 F53 / S2507 / S32750 / 1.4401;

ASTM A182 F55 / S32760 / 1.4501 / Zeron 100;

2205 / F60 / S32205;

ASTM A182 F44 / S31254 / 254SMO / 1.4547;

17-4PH / S17400 / 1.4542 / SUS630 / AISI630;

F904L / NO8904 / 1.4539;

725LN / 310MoLN / S31050 / 1.4466

253MA / S30815 / 1.4835;

Baja paduan nikel

Paduan 200 / Nikel 200 / NO2200 / 2.4066 / ASTM B366 WPN;

Paduan 201 / Nikel 201 / NO2201 / 2.4068 / ASTM B366 WPNL;

Paduan 400 / Monel 400 / NO4400 / NS111 / 2.4360 / ASTM B366 WPNC;

Paduan K-500 / Monel K-500 / NO5500 / 2.475;

Paduan 600 / Inconel 600 / NO6600 / NS333 / 2.4816;

Paduan 601 / Inconel 601 / NO6001 / 2.4851;

Paduan 625 / Inconel 625 / NO6625 / NS336 / 2.4856;

Paduan 718 / Inconel 718 / NO7718 / GH169 / GH4169 / 2.4668;

Paduan 800 / Incoloy 800 / NO8800 / 1.4876;

Paduan 800H / Incoloy 800H / NO8810 / 1.4958;

Paduan 800HT / ​​Incoloy 800HT / ​​NO8811 / 1.4959;

Paduan 825 / Incoloy 825 / NO8825 / 2.4858 / NS142;

Paduan 925 / Incoloy 925 / NO9925;

Hastelloy C / Alloy C / NO6003 / 2.4869 / NS333;

Paduan C-276 / Hastelloy C-276 / N10276 / 2.4819;

Paduan C-4 / Hastelloy C-4 / NO6455 / NS335 / 2.4610;

Paduan C-22 / Hastelloy C-22 / NO6022 / 2.4602;

Paduan C-2000 / Hastelloy C-2000 / NO6200 / 2.4675;

Paduan B / Hastelloy B / NS321 / N10001;

Paduan B-2 / Hastelloy B-2 / N10665 / NS322 / 2.4617;

Paduan B-3 / Hastelloy B-3 / N10675 / 2.4600;

Paduan X / Hastelloy X / NO6002 / 2.4665;

Paduan G-30 / Hastelloy G-30 / NO6030 / 2.4603;

Paduan X-750 / Inconel X-750 / NO7750 / GH145 / 2.4669;

Paduan 20 / Tukang Kayu 20Cb3 / NO8020 / NS312 / 2.4660;

Paduan 31 / NO8031 / 1.4562;

Paduan 901 / NO9901 / 1.4898;

Incoloy 25-6Mo / NO8926 / 1.4529 / Incoloy 926 / Alloy 926;

Inconel 783 / UNS R30783;

NAS 254NM / NO8367;

Monel 30C

Nimonic 80A / Nikel Paduan 80a / UNS N07080 / NA20 / 2.4631 / 2.4952

Nimonic 263 / NO7263

Nimonic 90 / UNS NO7090;

Incoloy 907 / GH907;

Nitronic 60 / Alloy 218 / UNS S21800

Paket Kotak kayu, palet, tas nilon atau sesuai dengan kebutuhan pelanggan
MOQ 1 buah
Waktu pengiriman 10-100 hari tergantung pada kuantitas
Syarat pembayaran T / T atau Western Union atau LC
Pengiriman FOB Tianjin / Shanghai, CFR, CIF, dll
Aplikasi Minyak / Daya / Kimia / Konstruksi / Gas / Metalurgi / Pembuatan Kapal dll
Komentar Bahan dan gambar lain tersedia.

Selamat datang untuk menghubungi kami.

Spesifikasi

Nama Produk: Butt Welding Stainless Steel Fitting Stub end

Rentang ukuran:
DN15-DN600 (1/2 "-24") Jenis Mulus
DN15 - DN1200 (1/2 "- 48") Jenis yang dilas
Ketebalan Dinding: SCH5 ke SCH160
Bahan:
Baja karbon: ASTM A234 WPB, WPC, ASTM A420 WPL1, WPL3, WPL6 dll
Baja Tahan Karat: ASTM A403 WP304 / 304L, WP316 / 316 / L, WP317L, WP321, WP347 & WPS31254
Baja paduan: ASTM A234 WP1 / WP12 / WP11 / WP22 / WP5 / WP7 / WP9 / WP91
Baja dupleks dan super dupleks: ASTM A815 UNS S31803 / S32205 / S32750 / S32760
DIN 1.4301.1.4401.1.4404.1.4541.1.4401.1.4571 dll
Standar pembuatan:
ASME B16.9, ASME B16.11, ASME B16.28, MSS SP-43, JISB2311, JIS B2312, JIS B2313, DIN 2605, DIN 2606, DIN2615, DIN2616, BG12459-90, GB / T13401, HGJ514, SH3408, SH3409, HG / T21635, HG / T21631,
End Bevel: Menurut standar atau persyaratan pelanggan

Pengobatan permukaan: Minyak hitam yang ditembakkan dan tahan karat
Pengujian non-destruktif: uji penetrasi, uji ultrasonik, uji radiografi, inspeksi pihak ketiga,

Nama Tekanan tinggi Stainless steel pendek / panjang pipa Stub End, lap joint stub end
Ukuran 21.3mm-609.6mm (1/2 '' - 24 ''), DN15-DN600
WT SCH5S-XXS
Standar ANSI B16.9, ANSI B16.28, DIN 2605, ISO3419, DIN EN10253, JIS B2312, JIS B2313, MSS SP-25, MSS SP-75, BS1387, ASTM A403
Bahan baku Baja karbon, baja tahan karat, baja paduan
Baja karbon 10 # 20 # Q235B ASTM A234 ASTM A105 ASTM A403
Besi tahan karat 1Cr18Ni9Ti 0Cr18Ni9 00Cr19Ni10 0Cr17Ni12Mo2Ti 00Cr17Ni14Mo2 304 304L 316 316L
Baja paduan

16Mn Cr5Mo 12Cr1MoV 10CrMo910 15CrMo 12Cr2Mo1 A335P22 St45.8

ASTM A860 WPHY X42 X52 X60 X70

Baja Aluminium 1060,2024,2017,3003,5052,5083,6061,6083,6060,7075,8011
Pengepakan: Kasus kayu, palet kayu, atau sesuai dengan kebutuhan pelanggan
Pipa utama

Siku, Tee / Salib, Peredam, Tutup, Flensa, Bengkok, Stubtube, Weldolet / Threadolet / Olet, Puting,

Mengurangi Masukkan Soket, Serikat, Penjepit Pipa, dan lain-lain

Inspeksi Inpeksi dari pabrik atau pihak ketiga
Aplikasi Industri perminyakan, Perusahaan Pengilangan, industri pupuk, pembangkit listrik, pembuatan kapal, anjungan darat

Label:

Stub End Fittings,

Lap Joint Stub End,

SS Stub End
