| Tempat asal: | Cina |
|---|---|
| Nama merek: | TOBO |
| Sertifikasi: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model: | Tee yang Sama |
| Kuantitas min Order: | 1pc |
| Harga: | USD |
| Kemasan rincian: | kasus kayu |
| Waktu pengiriman: | 7-45 hari wrok |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union |
| Menyediakan kemampuan: | 5500 PCS per bulan |
| Bentuk: | Sama | Ukuran: | 1-48 inci |
|---|---|---|---|
| Ketebalan: | Sch5-Sch160 | Bahan: | WPB A234 |
| Standar: | ASME B16.9 | DN: | 15-1200 |
| Menyoroti: | Butt Welded Pipe Fittings,Butt Weld Tabung Fittings |
||

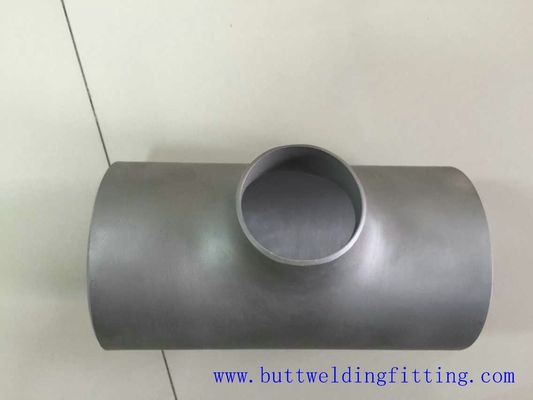

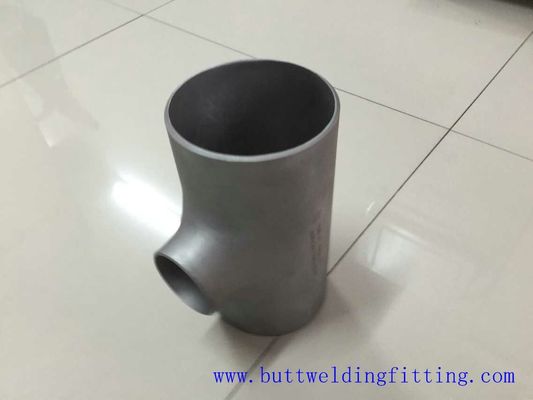

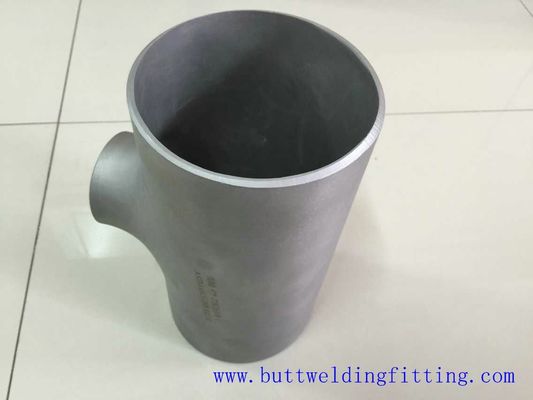

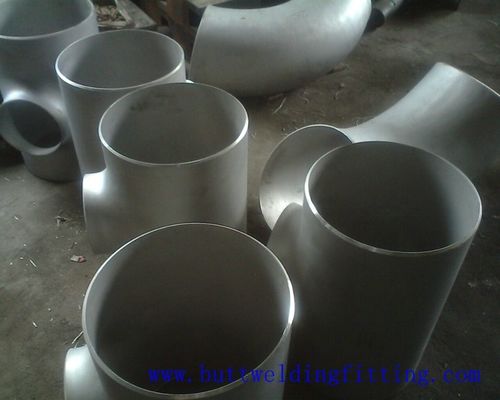

Kelengkapan Butt Weld ASTM A234 WPB Ukuran Sche-Sch160 1-48 inci
Kami menyediakan alat kelengkapan butt weld untuk klien kami yang terbuat dari stainless steel berkualitas tinggi oleh pabrikan asli kami. Ditawarkan dalam bentuk yang mulus dan dilas, fitting ini dibuat secara presisi dan ditawarkan kepada klien kami dalam spesifikasi berikut:
Bentuk:
1/8 "NB SAMPAI 48" NB. (Seamless & Welded)
Ketebalan
SCH: 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS & NS tersedia dengan NACE MR 01-75
Mengetik:
· Siku dalam 45 deg, 90 deg, 180 deg, R = 1D, 1.5D, 3D, 5D, 6D, 8D, 10D & 20D.
· Peredam eksentrik & konsentris.
· Tutup & umpan silang.
· Tee yang sama & tidak sama.
· Panjang rintisan pendek & pendek.
Standar:
· ASME: ANSI B16.9, ANSI B16.28, MSS SP75
· DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
· SGP: JIS B2313
· EN: EN10253-1, EN10253-2
Bahan:
Stainless Steel: ASTM A403 WP 304 / 304L / 304H / 316 / 316L / 317 / 317L / 321/310/347 / 904L / dll.
Baja Karbon: ASTM A234 WPB / A420 WPL3 / A420 WPL6 / MSS-SP-75 WPHY 42/46/52/56/60/65/70 dll.
Baja paduan: ASTM A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 / dll.
Bahan lain: Monel, Nikel, Inconel, Hastalloy, Tembaga, Kuningan, Perunggu, Titanium, Tantalum, Bismuth,
Aluminium, Baja Kecepatan Tinggi, Seng, Timbal, dll.
Ukuran Pipa Norminal DN | Diameter Luar di Bevel | Genter to End | ||
| D 1 | D 2 | C | M. | |
| Seri A | Seri B | |||
| 15 | 21.3 | 18 | 25 | |
| 20 | 26.9 | 25 | 29 | |
| 25 | 33.7 | 32 | 38 | |
| 32 | 42.4 | 38 | 48 | |
| 40 | 48.3 | 45 | 57 | |
| 50 | 60.3 | 57 | 64 | |
| 65 | 76.1 | 76 | 76 | |
| 80 | 88.9 | 89 | 86 | |
| 90 | 101.6 | 102 | 95 | |
| 100 | 114.3 | 108 | 105 | |
| 125 | 139.7 | 133 | 124 | |
| 150 | 168.3 | 159 | 143 | |
| 200 | 219.1 | 219 | 178 | |
| 250 | 273.0 | 273 | 216 | |
| 300 | 323.9 | 325 | 254 | |
| 350 | 355.6 | 377 | 279 | |
| 400 | 406.4 | 426 | 305 | |
| 450 | 457.0 | 478 | 343 | |
| 500 | 508.0 | 529 | 381 | |
| 550 | 559.0 | - | 419 | |
| 660 | 610.0 | 630 | 432 | |
| 650 | 660.0 | - | 495 | |
| 700 | 711.0 | 720 | 521 | |
| 750 | 762.0 | - | 559 | |
| 800 | 813.0 | 820 | 597 | |
| 850 | 864.0 | - | 635 | |
| 900 | 914.0 | 920 | 673 | |
| 950 | 965.0 | - | 711 | |
| 1000 | 1016.0 | 1020 | 749 | |
| 1050 | 1067.0 | - | 762 | 711 |
| 1100 | 1118.0 | 1120 | 813 | 762 |
| 1150 | 1168.0 | - | 851 | 800 |
| 1200 | 1220.0 | 1220 | 889 | 836 |
Mengetik
Butt weld fittings siku, peredam, tee, ujung rintisan, topi
Standar
ASME / ANSI B16.9
Ukuran
1/2 '' ~ 48 '' (Seamless); 16 '' ~ 72 '' (Dilas)
ketebalan dinding
Sch5 ~ Sch160XXS
Proses pembuatan
Push, Press, Forge, Cast, dll.
Bahan
Baja karbon, baja tahan karat, baja paduan, baja dupleks, baja paduan nikel
Baja karbon
ASTM A234 WPB, WPC;
Besi tahan karat
304 / SUS304 / UNS S30400 / 1.4301
304L / UNS S30403 / 1.4306;
304H / UNS S30409 / 1.4948;
309S / UNS S30908 / 1.4833
309H / UNS S30909;
310S / UNS S31008 / 1.4845;
310H / UNS S31009;
316 / UNS S31600 / 1.4401;
316Ti / UNS S31635 / 1.4571;
316H / UNS S31609 / 1.4436;
316L / UNS S31603 / 1.4404;
316LN / UNS S31653;
317 / UNS S31700;
317L / UNS S31703 / 1.4438;
321 / UNS S32100 / 1.4541;
321H / UNS S32109;
347 / UNS S34700 / 1.4550;
347H / UNS S34709 / 1.4912;
348 / UNS S34800;
Baja paduan
ASTM A234 WP5 / WP9 / WP11 / WP12 / WP22 / WP91;
ASTM A860 WPHY42 / WPHY52 / WPHY60 / WPHY65;
ASTM A420 WPL3 / WPL6 / WPL9;
Baja dupleks
ASTM A182 F51 / S31803 / 1.4462;
ASTM A182 F53 / S2507 / S32750 / 1.4401;
ASTM A182 F55 / S32760 / 1.4501 / Zeron 100;
2205 / F60 / S32205;
ASTM A182 F44 / S31254 / 254SMO / 1.4547;
17-4PH / S17400 / 1.4542 / SUS630 / AISI630;
F904L / NO8904 / 1.4539;
725LN / 310MoLN / S31050 / 1.4466
253MA / S30815 / 1.4835;
Baja paduan nikel
Paduan 200 / Nikel 200 / NO2200 / 2.4066 / ASTM B366 WPN;
Paduan 201 / Nikel 201 / NO2201 / 2.4068 / ASTM B366 WPNL;
Paduan 400 / Monel 400 / NO4400 / NS111 / 2.4360 / ASTM B366 WPNC;
Paduan K-500 / Monel K-500 / NO5500 / 2.475;
Paduan 600 / Inconel 600 / NO6600 / NS333 / 2.4816;
Paduan 601 / Inconel 601 / NO6001 / 2.4851;
Paduan 625 / Inconel 625 / NO6625 / NS336 / 2.4856;
Paduan 718 / Inconel 718 / NO7718 / GH169 / GH4169 / 2.4668;
Paduan 800 / Incoloy 800 / NO8800 / 1.4876;
Paduan 800H / Incoloy 800H / NO8810 / 1.4958;
Paduan 800HT / Incoloy 800HT / NO8811 / 1.4959;
Paduan 825 / Incoloy 825 / NO8825 / 2.4858 / NS142;
Paduan 925 / Incoloy 925 / NO9925;
Hastelloy C / Alloy C / NO6003 / 2.4869 / NS333;
Paduan C-276 / Hastelloy C-276 / N10276 / 2.4819;
Paduan C-4 / Hastelloy C-4 / NO6455 / NS335 / 2.4610;
Paduan C-22 / Hastelloy C-22 / NO6022 / 2.4602;
Paduan C-2000 / Hastelloy C-2000 / NO6200 / 2.4675;
Paduan B / Hastelloy B / NS321 / N10001;
Paduan B-2 / Hastelloy B-2 / N10665 / NS322 / 2.4617;
Paduan B-3 / Hastelloy B-3 / N10675 / 2.4600;
Paduan X / Hastelloy X / NO6002 / 2.4665;
Paduan G-30 / Hastelloy G-30 / NO6030 / 2.4603;
Paduan X-750 / Inconel X-750 / NO7750 / GH145 / 2.4669;
