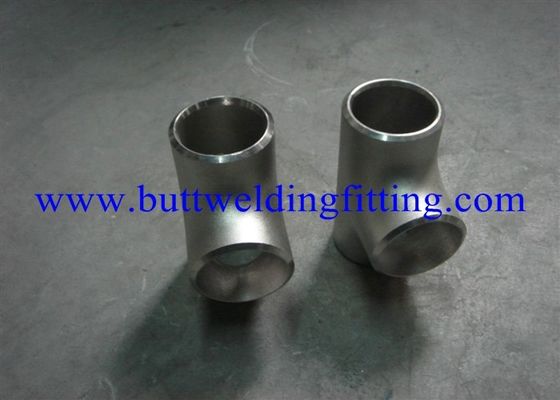

904L Stainless Steel Mengurangi Tee Butt Weld Tee 12 "SCH80S ASME B16.9

Informasi Dasar

Tempat asal:	Cina
Nama merek:	TOBO
Sertifikasi:	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Nomor model:	Stainless Steel 904L

Kuantitas min Order:	3PCS
Harga:	Dapat dinegosiasikan
Kemasan rincian:	KASUS ply-WOODEN OR PALLET
Waktu pengiriman:	15days
Syarat-syarat pembayaran:	T/T, L/C, Western Union
Menyediakan kemampuan:	9980000PCS Per Bulan

Harga terbaik Hubungi sekarang

Bahan:	Stainless Steel 904L	Standar:	ASME B16.9, ASME B16.25, MSS SP-75 DIN2617 JISB2311 JISB2312 JISB2313
Proses manufaktur:	Push, Press, Forge, Cast, dll	Aplikasi:	Petroleum / Daya / Kimia / Konstruksi / Gas / Metalurgi / Kapal dll
Rincian Kemasan::	pantat pengelasan pipa fitting umumnya harus dikirimkan dalam kasus kayu, palet kayu atau sesuai per	Uji:	Spektrum cahaya bacaan langsung, uji hidrostatik, detektor sinar-X, deteksi cacat ultrasonik, detekt
Menyoroti:	tee pipa baja , butt weld tee

Stainless Steel 904L Stainless Steel Reducing Tee / Reducing Tee 12 "SCH80S ASME B16.9

01) Nama komoditi: Stainless Steel 904L Stainless Steel Reducing Tee
02) Metode proses: cold rolled / dingin ditarik
03) Permukaan akhir: anil / pengawetan (AP), Anil Cerah (BA)
04) Bahan: TP304, TP304L, TP304 / 304L, TP310 / S, TP316, TP316L, TP316 / 316L, TP317L, TP321, TP347 / H S31803, 904L
05) Standar: ASTM (ASME) SA / A213 / M ASTM (ASME) 269 ASTM (ASME) 312 JIS G3459 JIS G3463 DIN 17456 DIN 17458 DIN 17458
06) Ukuran:

a) OD: Φ6 - Φ219mm (1/4 "hingga 6")

b) Jadwal: 5 / 5S, 10 / 10S, 20 / 20S, 40 / 40S, 80 / 80S, 120 / 120S, 160 / 160S, mnrt. ke ANSI B36.19 / 36.10
07) Panjang: Max.17 meter (spesifik atau acak)
08) Kondisi pengiriman: anil, acar & dipoles
09) Aplikasi:

a) Industri jasa umum (minyak bumi, makanan, kimia, kertas, pupuk, kain, penerbangan, dan nuklir)
b) Transportasi fluida, gas, dan minyak
c) Transmisi tekanan dan panas
d) Konstruksi dan ornamen
e) Penukar panas boiler

10) Packing: kantong plastik untuk masing-masing bagian kemudian dikemas dalam kasus kayu yang layak laut
11) Jumlah minimum pesanan: 1 metrik ton atau setelah negosiasi
12) Tanggal pengiriman: Min. 30 hari dan negosiasi

Spesifikasi

Ukuran Pipa Norminal	Diameter Luar di Bevel				Center to End
DN	D1		D2		C	M.
DN	Seri A	Seri B	Seri A	Seri B	C	M.
20 × 20 × 15	26.9	25	21.3	18	29	29
25 × 25 × 20	33.7	32	26.9	25	38	38
25 × 25 × 15	33.7	32	21.3	18	38	38
32 × 32 × 25	42.4	38	33.7	32	48	48
32 × 32 × 20	42.4	38	26.9	25	48	48
32 × 32 × 15	42.4	38	21.3	18	48	48
40 × 40 × 32	48.3	45	42.4	38	57	57
40 × 40 × 25	48.3	45	33.7	32	57	57
40 × 40 × 20	48.3	45	26.9	25	57	57
40 × 40 × 15	48.3	45	21.3	18	57	57
50 × 50 × 40	60.3	57	48.3	45	64	60
50 × 50 × 32	60.3	57	42.4	38	64	57
50 × 50 × 25	60.3	57	33.7	32	64	51
50 × 50 × 20	60.3	57	26.9	25	64	44
65 × 65 × 50	76.1 (73)	76	60.3	57	76	70
65 × 65 × 40	76.1 (73)	76	48.3	45	76	67
65 × 65 × 32	76.1 (73)	76	42.4	38	76	64
65 × 65 × 25	76.1 (73)	76	33.7	32	76	57
80 × 80 × 65	88.9	89	76.1 (73)	76	86	83
80 × 80 × 50	88.9	89	60.3	57	86	76
80 × 80 × 40	88.9	89	48.3	45	86	73
80 × 80 × 32	88.9	89	42.4	38	86	70
90 × 90 × 80	101.6	-	88.9	-	95	92
90 × 90 × 65	101.6	-	76.1 (73)	-	95	89
90 × 90 × 50	101.6	-	60.3	-	95	83
90 × 90 × 40	101.6	-	48.3	-	95	79
100 × 100 × 90	114.3	-	101.6	-	105	102
100 × 100 × 80	114.3	108	88.9	89	105	98
100 × 100 × 65	114.3	108	76.1 (73)	76	105	95
100 × 100 × 50	114.3	108	60.3	57	105	89
100 × 100 × 40	114.3	108	48.3	45	105	86
125 × 125 × 100	139.7	133	114.3	108	124	117
125 × 125 × 90	139.7	-	101.6	-	124	114
125 × 125 × 80	139.7	133	88.9	89	124	111
125 × 125 × 65	139.7	133	76.1 (73)	76	124	108
125 × 125 × 50	139.7	133	60.3	57	124	105
150 × 150 × 125	168.3	159	139.7	133	143	137
150 × 150 × 100	168.3	159	114.3	108	143	130
150 × 150 × 90	168.3	-	101.6	-	143	127
150 × 150 × 80	168.3	159	88.9	89	143	124
150 × 150 × 65	168.3	159	76.1 (73)	76	143	121
200 × 200 × 150	219.1	219	168.3	159	178	168
200 × 200 × 125	219.1	219	139.7	133	178	162
200 × 200 × 100	219.1	219	114.3	108	178	156
200 × 200 × 90	219.1	-	101.6	-	178	152
250 × 250 × 200	273	273	219.1	219	216	203
250 × 250 × 150	273	273	168.3	159	216	194
250 × 250 × 125	273	273	139.1	133	216	191
250 × 250 × 100	273	273	114.3	108	216	184
300 × 300 × 250	323.9	325	273	273	254	241
300 × 300 × 200	323.9	325	219.1	219	254	229
300 × 300 × 150	323.9	325	168.3	159	254	219
300 × 300 × 125	323.9	325	139.7	133	254	216
350 × 350 × 300	355.6	377	323	325	279	270
350 × 350 × 250	355.6	377	273	273	279	257
350 × 350 × 200	355.6	377	219.1	219	279	248
350 × 350 × 150	255.6	377	168.3	159	279	238
400 × 400 × 350	406.4	426	355.6	377	305	305
400 × 400 × 300	406.4	426	323.9	325	305	295
400 × 400 × 250	406.4	426	273	273	305	283
400 × 400 × 200	406.4	426	219.1	219	305	273
400 × 400 × 150	406.4	426	168.3	159	305	264
450 × 450 × 400	457.2	478	406.4	426	343	330
450 × 450 × 350	457.2	478	355.6	377	343	330
450 × 450 × 300	457.2	478	323.9	325	343	321
450 × 450 × 250	457.2	478	273	273	343	308
450 × 450 × 200	457.2	478	219.1	219	343	298
500 × 500 × 450	508	529	457.2	478	381	368
500 × 500 × 400	508	529	406.4	426	381	356
500 × 500 × 350	508	529	355.6	377	381	356
500 × 500 × 300	508	529	323.9	325	381	346
500 × 500 × 250	508	529	273	273	381	333
500 × 500 × 200	508	529	219.1	219	381	324

Ukuran Pipa Norminal	Diameter Luar di Bevel				Center to End
DN	D1		D2		C	M.
DN	Seri A	Seri B	Seri A	Seri B	C	M.
350 × 350 × 300	356	377	324	325	279	270
350 × 350 × 250	356	377	273	273	279	257
350 × 350 × 200	356	377	219	219	279	248
350 × 350 × 150	356	377	168	159	279	238
400 × 400 × 350	406	426	356	377	305	305
400 × 400 × 300	406	426	324	325	305	295
400 × 400 × 250	406	426	273	273	305	283
400 × 400 × 200	406	426	219	219	305	273
400 × 400 × 150	406	426	168	159	305	264
450 × 450 × 400	457	480	406	426	343	330
450 × 450 × 350	457	480	356	377	343	330
450 × 450 × 300	457	480	324	325	343	321
450 × 450 × 250	457	480	273	273	343	308
450 × 450 × 200	457	480	219	219	343	298
500 × 500 × 450	508	530	457	480	381	368
500 × 500 × 400	508	530	406	426	381	356
500 × 500 × 350	508	530	356	377	381	356
500 × 500 × 300	508	530	324	325	381	346
500 × 500 × 250	508	530	273	273	381	333
500 × 500 × 200	508	530	219	219	381	324
550 × 550 × 500	559	-	508	-	419	406
550 × 550 × 450	559	-	457	-	419	394
550 × 550 × 400	559	-	406	-	419	394
600 × 600 × 550	610	-	559	-	432	432
600 × 600 × 500	610	630	508	530	432	432
600 × 600 × 450	610	630	457	480	432	419
650 × 650 × 600	660	-	610	-	495	483
650 × 650 × 550	660	-	559	-	495	470
650 × 650 × 500	660	-	508	-	495	457
700 × 700 × 650	711	-	660	-	521	521
700 × 700 × 600	711	720	610	630	521	521
700 × 700 × 550	711	-	559	-	521	508
750 × 750 × 700	762	-	711	-	559	546
750 × 750 × 650	762	-	660	-	559	546
750 × 750 × 600	762	-	610	-	559	533
800 × 800 × 750	813	-	762	-	597	584
800 × 800 × 700	813	820	711	720	597	572
800 × 800 × 650	813	-	660	-	597	572
850 × 850 × 800	864	-	813	-	635	622
850 × 850 × 750	864	-	762	-	635	597
850 × 850 × 700	864	-	711	-	635	597
900 × 900 × 850	914	-	864	-	673	660
900 × 900 × 800	914	920	813	820	673	648
900 × 900 × 750	914	-	762	-	673	648
950 × 950 × 900	965	-	914	-	711	711
950 × 950 × 850	965	-	864	-	711	698
950 × 950 × 800	965	-	813	-	711	686
1000 × 1000 × 950	1016	-	965	-	749	749
1000 × 1000 × 900	1016	1020	914	920	749	737
1000 × 1000 × 850	1016	-	864	-	749	724
1050 × 1050 × 1000	1067	-	1016	-	762	711
1050 × 1050 × 950	1067	-	965	-	762	711
1050 × 1050 × 900	1067	-	914	-	762	711
1100 × 1100 × 1050	1118	-	1067	-	813	762
1100 × 1100 × 1000	1118	1120	1016	1020	813	749
1100 × 1100 × 950	1118	-	965	-	813	737
1150 × 1150 × 1100	1168	-	1118	-	851	800
1150 × 1150 × 1050	1168	-	1067	-	851	787
1150 × 1150 × 1000	1168	-	1016	-	851	775
1200 × 1200 × 1150	1220	-	1168	-	889	838
1200 × 1200 × 1100	1220	1220	1118	1120	889	838
1200 × 1200 × 1050	1220	-	1067	-	889	838
1300 × 1300 × 1200	1320	-	1220	-	958	888
1300 × 1300 × 1100	1320	-	1120	-	958	862
1300 × 1300 × 1200	1320	-	1020	-	958	841
1400 × 1400 × 1300	1420	-	1320	-	1027	956
1400 × 1400 × 1200	1420	-	1220	-	1027	938
1400 × 1400 × 1100	1420	-	1120	-	1027	912
1500 × 1500 × 1400	1520	-	1420	-	1096	1025
1500 × 1500 × 1400	1520	-	1320	-	1096	1006
1500 × 1500 × 1400	1520	-	1220	-	1096	988
1600 × 1600 × 1500	1620	-	1520	-	1160	1093
1600 × 1600 × 1400	1620	-	1420	-	1160	1075
1600 × 1600 × 1300	1620	-	1320	-	1160	1056
