| Tempat asal: | Cina |
|---|---|
| Nama merek: | Tobo |
| Sertifikasi: | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Nomor model: | tee |
| Kuantitas min Order: | 1pcs |
| Harga: | USD Depending on quantity |
| Kemasan rincian: | KASUS ply-WOODEN OR PALLET |
| Waktu pengiriman: | 10-100 hari tergantung pada kuantitas |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union |
| Menyediakan kemampuan: | 90000 pcs per mulut |
| Nama Produk: | super duplex uns s32750 | Ukuran: | 1-48 inci |
|---|---|---|---|
| Standar: | ASME B16.9 | Bahan Grrade: | UNS S32750 UNSS32760 |
| Menyoroti: | tee pipa stainless steel,tee pipa baja |
||
Deskripsi:
1. Item Produk No: 005fittings-Cosco Steel
2. Ukuran: NPS 1/2 "-120" (DN15-3000)
3. Varietas: SCH5S / 10S, SCH20 / 40/8 Pipa Pas Stainless steel SMLS reducer tee 0/160, STD / XS / XXS, SGP
4. Bahan:
Baja karbon: ASTM A234 GR WPB, ST37.2, ST35.8…
Baja paduan: A234 WP5 / WP9 / WP11 / WP22 / WP91, A420 WPL6, A860 WHPY 42/52/60/65/70/80…
Baja tahan karat: A403 WP304 / TP304, WP304L / TP304L, WP316 / TP316, WP316L / TP316L, WP321 / TP321, WP310 / TP310…
5. Standar: ANSI B16.9 / ANSI B16.28 / MSS SP43 / MSS P75 / JIS2311 / JIS 2312 / JIS2313 / DIN2615 / GB-12459 / GB-T13401, Gost17376, kami juga dapat memproduksi sesuai dengan gambar oleh pelanggan.
6. Pengobatan permukaan:
Baja karbon: Tembakan keras, lukisan hitam, minyak anti karat, minyak transparan, galvanisasi, galvanisasi panas
Baja paduan: Tembakan keras, lukisan hitam, minyak anti karat, minyak transparan, galvanisasi, galvanisasi panas
Stainless steel: acar,
7. Istilah perdagangan: FOB, CNF & CFR, CIF
8. Penggunaan: Minyak / Daya / penggunaan Kimia / Penggunaan konstruksi / Gas / Logam / Pembuatan Kapal
9. Sertifikat: GB / T19001-2008-ISO 9001: 2008
10. Penandaan: Logo terdaftar, Nomor Panas, Kelas Baja, Standar, Ukuran
11. Packing: Kotak kayu atau palet kayu.
12. Kode HS: 73072300

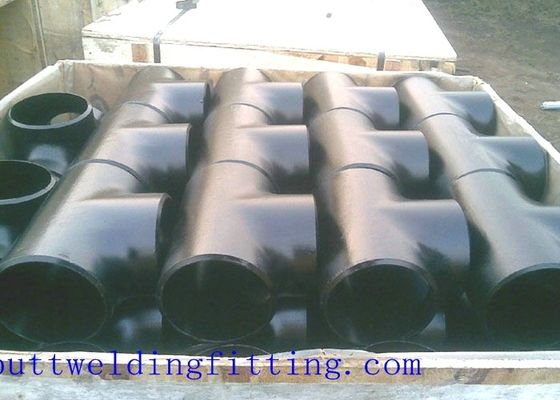

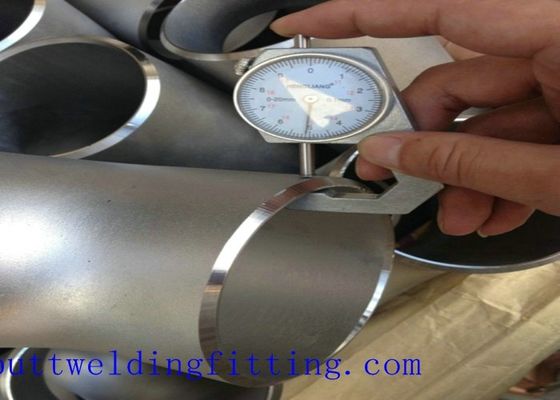

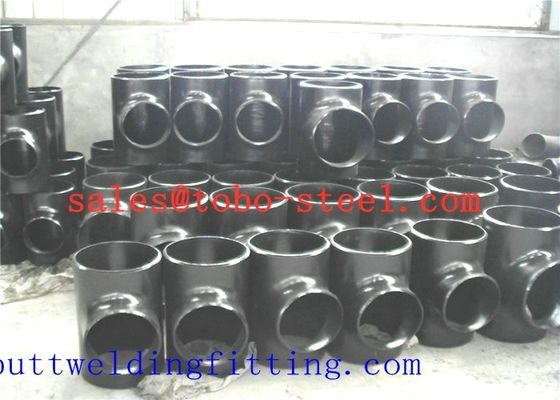

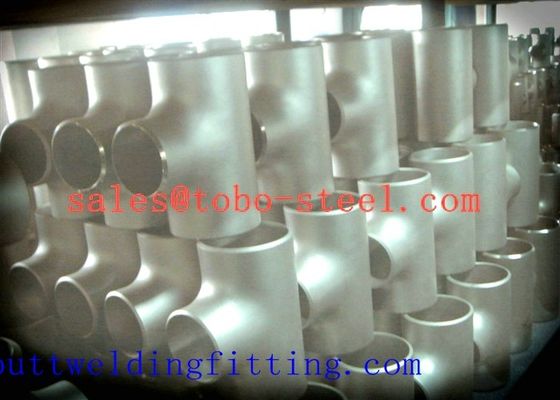

ASME / ANSI B16.9 Kelengkapan Pipa Butt-Welded / Tee Stainless Steel SS304 SS316L
1.Size: 1/2 "~ 72"
2.Thickness: SCH5S ~ SCH160
Baja paduan nikel:
Paduan 200 / Nikel 200 / NO2200 / 2.4066 / ASTM B366 WPN;
Paduan 201 / Nikel 201 / NO2201 / 2.4068 / ASTM B366 WPNL;
Paduan 400 / Monel 400 / NO4400 / NS111 / 2.4360 / ASTM B366 WPNC;
Paduan K-500 / Monel K-500 / NO5500 / 2.475;
Paduan 600 / Inconel 600 / NO6600 / NS333 / 2.4816;
Paduan 601 / Inconel 601 / NO6001 / 2.4851;
Paduan 625 / Inconel 625 / NO6625 / NS336 / 2.4856;
Paduan 718 / Inconel 718 / NO7718 / GH169 / GH4169 / 2.4668;
Paduan 800 / Incoloy 800 / NO8800 / 1.4876;
Paduan 800H / Incoloy 800H / NO8810 / 1.4958;
Paduan 800HT / Incoloy 800HT / NO8811 / 1.4959;
Paduan 825 / Incoloy 825 / NO8825 / 2.4858 / NS142;
Paduan 925 / Incoloy 925 / NO9925;
Hastelloy C / Alloy C / NO6003 / 2.4869 / NS333;
Paduan C-276 / Hastelloy C-276 / N10276 / 2.4819;
Paduan C-4 / Hastelloy C-4 / NO6455 / NS335 / 2.4610;
Paduan C-22 / Hastelloy C-22 / NO6022 / 2.4602;
Paduan C-2000 / Hastelloy C-2000 / NO6200 / 2.4675;
Paduan B / Hastelloy B / NS321 / N10001;
Paduan B-2 / Hastelloy B-2 / N10665 / NS322 / 2.4617;
Paduan B-3 / Hastelloy B-3 / N10675 / 2.4600;
Paduan X / Hastelloy X / NO6002 / 2.4665;
Paduan G-30 / Hastelloy G-30 / NO6030 / 2.4603;
Paduan X-750 / Inconel X-750 / NO7750 / GH145 / 2.4669;
Paduan 20 / Tukang Kayu 20Cb3 / NO8020 / NS312 / 2.4660;
Paduan 31 / NO8031 / 1.4562;
Paduan 901 / NO9901 / 1.4898;
Incoloy 25-6Mo / NO8926 / 1.4529 / Incoloy 926 / Alloy 926;
Inconel 783 / UNS R30783;
NAS 254NM / NO8367;
Monel 30C
Nimonic 80A / Nikel Paduan 80a / UNS N07080 / NA20 / 2.4631 / 2.4952
Nimonic 263 / NO7263
Nimonic 90 / UNS NO7090;
Incoloy 907 / GH907;
Nitronic 60 / Alloy 218 / UNS S21800
standar
ASME B16.9-2007
ASME B16.25-2007
ASME B16.5-2007
EN10253-1-1999 EN10253-2-2007 EN10253-3-2008 EN10253-4-2008
DIN2605-1-1992 DIN2605-2-1995
JIS B2311-2009 JIS B2312-2009 JIS B2313-2009
GB / T12459-2005 GB / T13401-2005 GB / T10752-2005
SH / T3408-1996 SH / T3409-1996
SY / T0609-2006 SY / T0518-2002 SY / T0510-1998
DL / T695-1999 GD2000 GD87-1101
HG / T21635-1987 HG / T21631-1990
Deskripsi Produksi Dtailed
1) Ukuran : Seamless: 1/2 "-60" SCH10s-XXS
2) Standar: ANSI B16.9 / B16.11 / B16.28, DIN, JIS, ISO
3) Bahan : baja karbon: A234-WPB WPC,
baja paduan: A420-WPL6, A234-WP11, A234-WP12, A234-WP5, A234-WP9, A234-WP22,15Mo3,15CrMoV, 35CrmoV
stainless steel: A403 WP 304-304L-304H-304LN-304N
A403 WP 316-316L-316H-316LN-316N-316Ti
A403 WP 321-321H
A403 WP 347-347H
baja suhu rendah: A402 WPL3-WPL6
baja kinerja tinggi: A860 WPHY 42-46-52-60-55-70
4) pengobatan permukaan : baja karbon: ditembak blasted, lukisan hitam, minyak tahan karat, minyak transparan, galvanizing, galvanizing panas
baja paduan: Ditembak peledakan, lukisan hitam, minyak tahan karat, minyak transparan, galvanisasi, galvanisasi panas
stainless steel: acar, Polandia
5) Ketebalan dinding nominal : SCH5-SCH160, STD, XS, XXS
6) packing : kasus kayu atau palet kayu sesuai dengan ukuran alat kelengkapan
7) Waktu pengiriman : 7-10 hari untuk kontainer 20 kaki
8) Lainnya : 1) Desain khusus tersedia 2) Semua proses produksi dibuat di bawah ISO 9001: 2000 secara ketat.
Aplikasi
Produk kami banyak digunakan dalam rekayasa pipa industri minyak dan gas (termasuk petrokimia), kimia
dan farmasi, pulp dan kertas, pupuk, desalinasi, nuklir, tenaga listrik, ketel, penukar panas, metalurgi, kilang,
mesin, fabrikasi baja, pembuatan kapal, pembuangan air, konstruksi, penerbangan, tekstil, dll.
advangtage kami
1) Bahan baku menggunakan baja bahan 100%
2) pelayanan yang baik
3) Harga kompetitif
4) pengiriman cepat
5) produk berkualitas tinggi
produk-produk lain
kami dapat menyediakan fitting pipa baja butt weld seperti siku, tee, peredam, tutup, tikungan dan sebagainya. Kualitas bagus, harga bersaing
dan layanan prima adalah pilihan terbaik Anda.

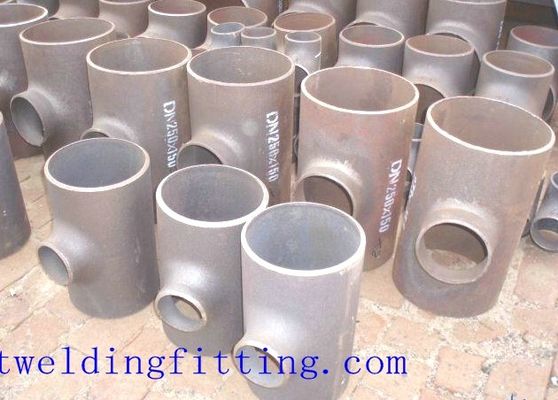

Spesifikasi
Ukuran Pipa Norminal | Diameter Luar di Bevel | Center to End | ||||
DN | D1 | D2 | C | M. | ||
Seri A | Seri B | Seri A | Seri B | |||
20 × 20 × 15 | 26.9 | 25 | 21.3 | 18 | 29 | 29 |
25 × 25 × 20 | 33.7 | 32 | 26.9 | 25 | 38 | 38 |
25 × 25 × 15 | 33.7 | 32 | 21.3 | 18 | 38 | 38 |
32 × 32 × 25 | 42.4 | 38 | 33.7 | 32 | 48 | 48 |
32 × 32 × 20 | 42.4 | 38 | 26.9 | 25 | 48 | 48 |
32 × 32 × 15 | 42.4 | 38 | 21.3 | 18 | 48 | 48 |
40 × 40 × 32 | 48.3 | 45 | 42.4 | 38 | 57 | 57 |
40 × 40 × 25 | 48.3 | 45 | 33.7 | 32 | 57 | 57 |
40 × 40 × 20 | 48.3 | 45 | 26.9 | 25 | 57 | 57 |
40 × 40 × 15 | 48.3 | 45 | 21.3 | 18 | 57 | 57 |
50 × 50 × 40 | 60.3 | 57 | 48.3 | 45 | 64 | 60 |
50 × 50 × 32 | 60.3 | 57 | 42.4 | 38 | 64 | 57 |
50 × 50 × 25 | 60.3 | 57 | 33.7 | 32 | 64 | 51 |
50 × 50 × 20 | 60.3 | 57 | 26.9 | 25 | 64 | 44 |
65 × 65 × 50 | 76.1 (73) | 76 | 60.3 | 57 | 76 | 70 |
65 × 65 × 40 | 76.1 (73) | 76 | 48.3 | 45 | 76 | 67 |
65 × 65 × 32 | 76.1 (73) | 76 | 42.4 | 38 | 76 | 64 |
65 × 65 × 25 | 76.1 (73) | 76 | 33.7 | 32 | 76 | 57 |
80 × 80 × 65 | 88.9 | 89 | 76.1 (73) | 76 | 86 | 83 |
80 × 80 × 50 | 88.9 | 89 | 60.3 | 57 | 86 | 76 |
80 × 80 × 40 | 88.9 | 89 | 48.3 | 45 | 86 | 73 |
80 × 80 × 32 | 88.9 | 89 | 42.4 | 38 | 86 | 70 |
90 × 90 × 80 | 101.6 | - | 88.9 | - | 95 | 92 |
90 × 90 × 65 | 101.6 | - | 76.1 (73) | - | 95 | 89 |
90 × 90 × 50 | 101.6 | - | 60.3 | - | 95 | 83 |
90 × 90 × 40 | 101.6 | - | 48.3 | - | 95 | 79 |
100 × 100 × 90 | 114.3 | - | 101.6 | - | 105 | 102 |
100 × 100 × 80 | 114.3 | 108 | 88.9 | 89 | 105 | 98 |
100 × 100 × 65 | 114.3 | 108 | 76.1 (73) | 76 | 105 | 95 |
100 × 100 × 50 | 114.3 | 108 | 60.3 | 57 | 105 | 89 |
100 × 100 × 40 | 114.3 | 108 | 48.3 | 45 | 105 | 86 |
125 × 125 × 100 | 139.7 | 133 | 114.3 | 108 | 124 | 117 |
125 × 125 × 90 | 139.7 | - | 101.6 | - | 124 | 114 |
125 × 125 × 80 | 139.7 | 133 | 88.9 | 89 | 124 | 111 |
125 × 125 × 65 | 139.7 | 133 | 76.1 (73) | 76 | 124 | 108 |
125 × 125 × 50 | 139.7 | 133 | 60.3 | 57 | 124 | 105 |
150 × 150 × 125 | 168.3 | 159 | 139.7 | 133 | 143 | 137 |
150 × 150 × 100 | 168.3 | 159 | 114.3 | 108 | 143 | 130 |
150 × 150 × 90 | 168.3 | - | 101.6 | - | 143 | 127 |
150 × 150 × 80 | 168.3 | 159 | 88.9 | 89 | 143 | 124 |
150 × 150 × 65 | 168.3 | 159 | 76.1 (73) | 76 | 143 | 121 |
200 × 200 × 150 | 219.1 | 219 | 168.3 | 159 | 178 | 168 |
200 × 200 × 125 | 219.1 | 219 | 139.7 | 133 | 178 | 162 |
200 × 200 × 100 | 219.1 | 219 | 114.3 | 108 | 178 | 156 |
200 × 200 × 90 | 219.1 | - | 101.6 | - | 178 | 152 |
250 × 250 × 200 | 273 | 273 | 219.1 | 219 | 216 | 203 |
250 × 250 × 150 | 273 | 273 | 168.3 | 159 | 216 | 194 |
250 × 250 × 125 | 273 | 273 | 139.1 | 133 | 216 | 191 |
250 × 250 × 100 | 273 | 273 | 114.3 | 108 | 216 | 184 |
300 × 300 × 250 | 323.9 | 325 | 273 | 273 | 254 | 241 |
300 × 300 × 200 | 323.9 | 325 | 219.1 | 219 | 254 | 229 |
300 × 300 × 150 | 323.9 | 325 | 168.3 | 159 | 254 | 219 |
300 × 300 × 125 | 323.9 | 325 | 139.7 | 133 | 254 | 216 |
